SupermicroSYS-111C-NR-G1
Out of stock

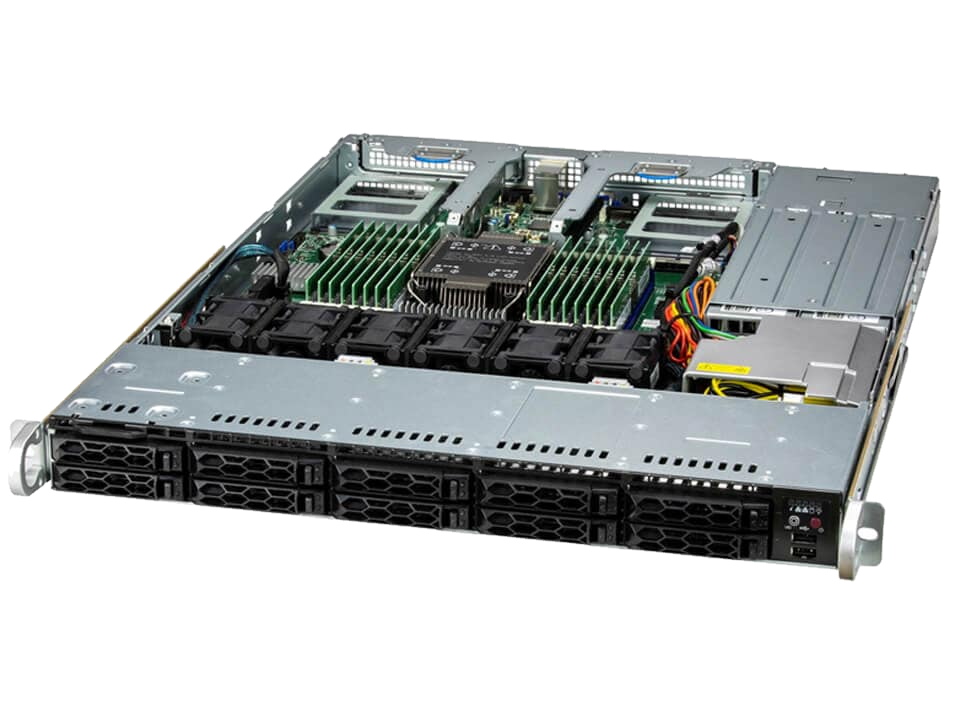

This 1U rackmount server, powered by an Intel® Xeon® 4510 12-core processor, is designed for high-performance computing, virtualization, and cloud applications. Ideal for data centers, CDN edge nodes, and storage headnodes, it features a 960GB NVMe drive for rapid data access, and 2 64GB DDR5-5600 RDIMM slots for up to 128GB of RAM. With dual 10GbE LAN ports ensuring seamless connectivity, this server provides the performance and responsiveness your demanding workloads require. Plus, it ships within 24 hours, so you can get your infrastructure up and running quickly.
SKU: SYS-111C-NR-G1
Features
Key Features
- CPU - Single Intel® Xeon® 4510 Processor (12-Cores)
- Chassis - 1U / 1 Node
- Drive - 2x 960GB M.2 NVMe
- RAM - 2x 64GB DDR5-5600 RDIMM Memory Slots
- Network Ports - 2x 10GbE RJ45 LAN Ports via AIOM
Use Cases
Virtualization
HPC
CDN, Edge Nodes
Cloud Computing
Data Center Optimized
Storage Headnode
Motherboard
Super X13SEDW-F
System BIOS
GPU
System Memory
On-Board Devices
Input / Output
Management
Security
PC Health Monitoring
Processor
BIOS Type:
AMI 32MB SPI Flash EEPROM
Max GPU Count:
Up to 2 single-width GPUs
Supported GPU:
NVIDIA PCIe: T1000, L4, A2
CPU-GPU Interconnect:
PCIe 5.0 x16 CPU-to-GPU Interconnect
Memory:
Slot Count: 16 DIMM slots/8 Channels
Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 4TB 4400MT/s ECC DDR5 RDIMM
Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 4TB 4400MT/s ECC DDR5 RDIMM
Memory Voltage:
1.1V
NVMe:
NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)
Chipset:
Intel® C741
Network Connectivity:
Via AIOM
SATA:
SATA (6Gbps) ; RAID 0/1/5/10 support
LAN:
1x RJ45 1 GbE Dedicated BMC LAN port
USB:
2x USB 3.2 Gen1 Type-A ports(rear)
2x USB 2.0 Type-A ports(front)
2x USB 2.0 Type-A ports(front)
Video:
1x VGA port
TPM:
1x TPM header
Serial:
1x COM port(Rear)
Software:
SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Power Configurations:
ACPI/APM Power Management
Hardware:
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features:
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
CPU:
Monitors for CPU Cores, Chipset Voltages, Memory
8x Phase-switching voltage regulator
8x Phase-switching voltage regulator
Fan:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Thermal Control for fan connectors
CPU:
Single Socket E (LGA-4677)
5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Cores:
Up to 64C/128T; Up to 320MB Cache
Note:
Supports up to 350W TDP CPUs (Air Cooled)
Chassis
CSE-LB16TS-R0AWNP3

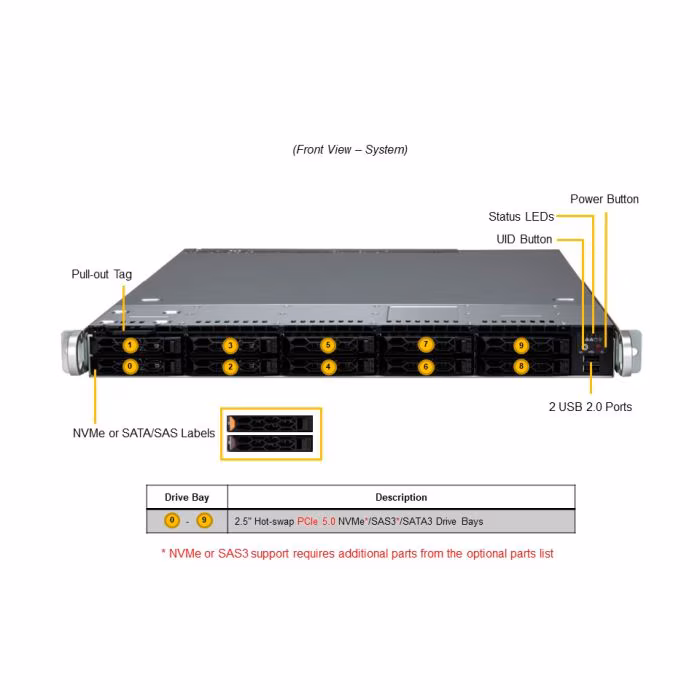

Front Panel
Expansion Slots
Drive Bays / Storage
System Cooling
Operating Environment
Power Supply
Dimensions
Environmental / Recycling
Buttons:
Power On/Off
Unit Identifier (UID)
Unit Identifier (UID)
LED:
Drive activity
Network activity
Power status
Universal Information
Network activity
Power status
Universal Information

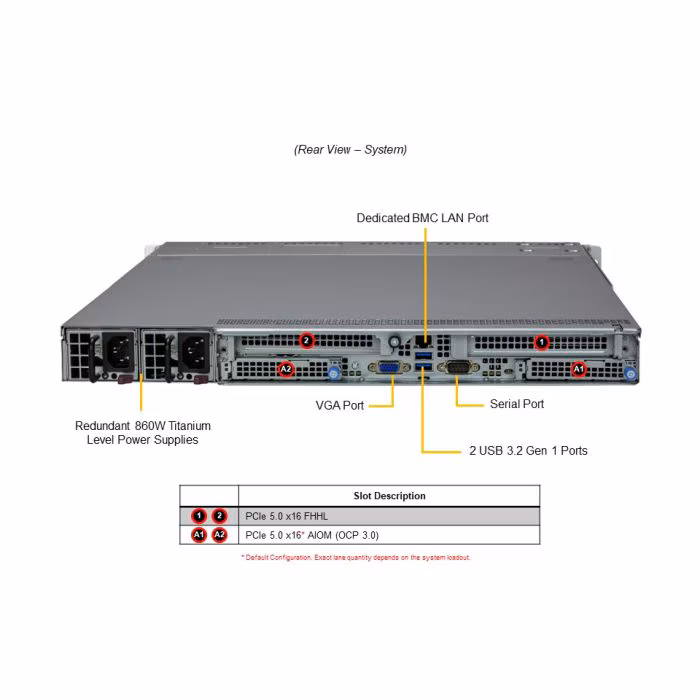

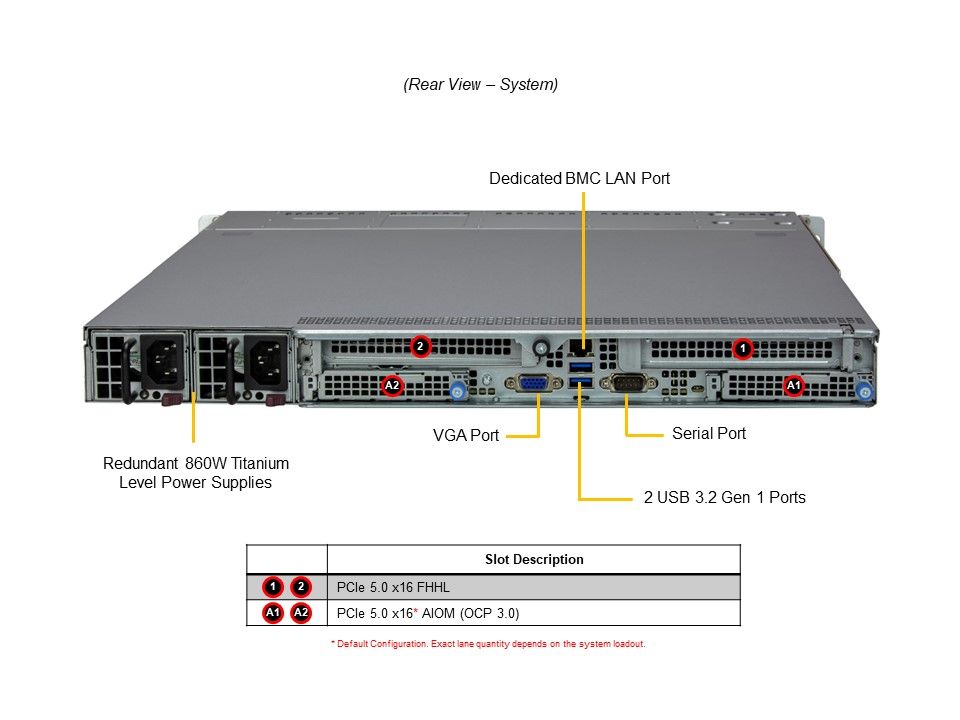

PCI-Express (PCIe) Configuration:
Default
2x PCIe 5.0 x16 FHHL slots
2x PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Option A
1x PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible)
1x PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option B
2x PCIe 5.0 x16 FHHL slots
2x PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Option A
1x PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible)
1x PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option B

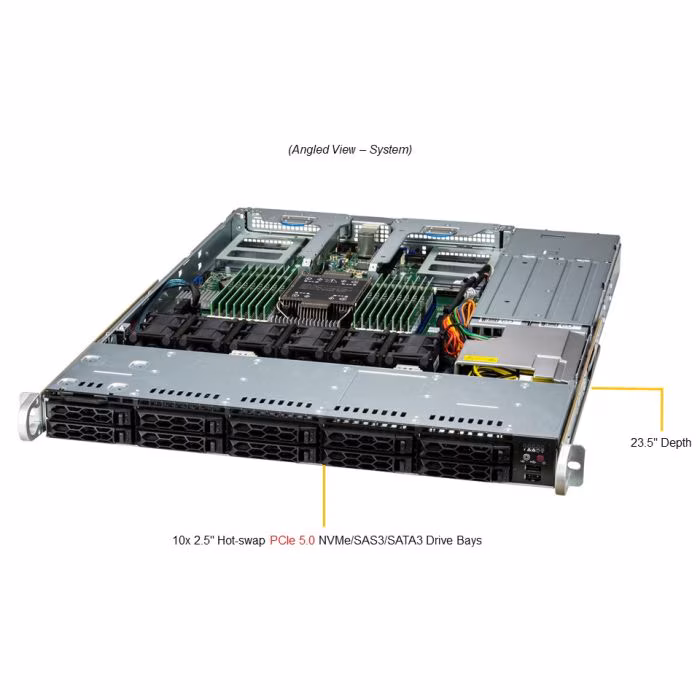

Drive Bays Configuration:
Default: Total 10 bays
10x front hot-swap 2.5" SAS*/SATA drive bays
Option A: Total 10 bays
6x front hot-swap 2.5" SAS*/SATA drive bays
4x front hot-swap 2.5" PCIe 5.0 x4 NVMe*/SAS*/SATA drive bays
Option B: Total 10 bays
10x front hot-swap 2.5" PCIe 5.0 x4 NVMe*/SAS*/SATA drive bays
(*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
10x front hot-swap 2.5" SAS*/SATA drive bays
Option A: Total 10 bays
6x front hot-swap 2.5" SAS*/SATA drive bays
4x front hot-swap 2.5" PCIe 5.0 x4 NVMe*/SAS*/SATA drive bays
Option B: Total 10 bays
10x front hot-swap 2.5" PCIe 5.0 x4 NVMe*/SAS*/SATA drive bays
(*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2:
2x M.2 PCIe 3.0 x2 NVMe slots (M-key 2280/22110)
Fans:
6x middle cooling PWM 40x40x56mm Fan(s)
Air Shroud:
1x Air Shroud
Environmental Spec.:
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
Operating Relative Humidity: 8% to 80% (non-condensing)
Non-operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
Operating Relative Humidity: 8% to 80% (non-condensing)
Non-operating Relative Humidity: 8% to 90% (non-condensing)
Configuration:
2x 860W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (W x H x L):
54.5 x 40.25 x 322 mm
Input:
800W: 100-127Vac / 50-60Hz
860W: 200-240Vac / 50-60Hz
860W: 240Vdc / 50-60Hz
860W: 200-240Vac / 50-60Hz
860W: 240Vdc / 50-60Hz
+12V:
Max: 66.67A / Min: 0A (100Vac-127Vac)
Max: 71.67A / Min: 0A (200Vac-240Vac)
Max: 71.67A / Min: 0A (Vdc-240Vdc)
Max: 71.67A / Min: 0A (200Vac-240Vac)
Max: 71.67A / Min: 0A (Vdc-240Vdc)
Output Type:
Backplanes (gold finger)
5V SB:
Max: 4A / Min: 0A
Height:
1.7 in
Width:
17.2 in
Depth:
23.5 in
Package Height:
7.8 in
Package Width:
23.8 in
Package Depth:
32.4 in
Gross Weight:
39.9 lb
Net Weight:
24.91 lb
Available Color:
Black front & silver body
Form Factor:
1U Rackmount
Model:
CSE-LB16TS-R0AWNP3
Recycle:
Contact us at lifecycle@rackables.com for recycling options.
Part NumberQtyDescription
CacheVault
BTR-CVPM05 + MCP-240-00203-0N (For S3908/S3916)1SuperCap mounting bracket for PCIe locationBTR-CVPM05 + MCP-240-21747-0N (For S3908/S3916)1SuperCap mounting bracket for AIOM location
Inlet Thermal Sensor
MCP-280-00033-0N1Inlet Thermal sensor kit with 80cm I2C cable
Intel VROC RAID Key for NVMe
AOC-VROCSTNMOD1Standard Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10AOC-VROCPREMOD1Premium Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10/5
NVMe Cable (Drive Bay 0-1)
CBL-MCIO-1240AM5-X1MCIO (x8 to x8) STR,40CM,85OHM
NVMe Cable (Drive Bay 2-9)
CBL-MCIO-1225M5Y 2MCIO (x8 to 2 x4) STR,25CM,85OHM
Software
SFT-DCMS-Single1DataCenter Management Package (per node license)
Storage Control Card and Cable(s)
AOC-S3908L-H8iR-16DD + 1x CBL-SAST-1276F-1001Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60AOC-S3916L-H16iR-32DD + 1x CBL-SAST-1265F-100 + 1x CBL-SAST-1276F-1001Standard LP, 16 internal ports (12Gb/s) PCIe 4.0 x8, 32HDD; RAID 0, 1, 5, 6, 10, 50, 60
Storage Control Card and Cable(s) (HBA)
AOC-S3808L-L8IT + 1x CBL-SAST-1276F-1001Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 122HDD; HBAAOC-S3816L-L16IT + 1x CBL-SAST-1265F-100 + 1x CBL-SAST-1276F-1001Standard LP, 16 internal ports (12Gb/s) PCIe 4.0 x8, 122HDD; HBA
TPM
AOM-TPM-9670V-S-O1TPM 2.0, vertical form factor, provisioned for server
VC Heat Sink for high TDP CPU
SNK-P0087V11U Passive CPU Vapor Chamber Heat Sink
