SYS-112H-TN-01-G2
RFQ Only

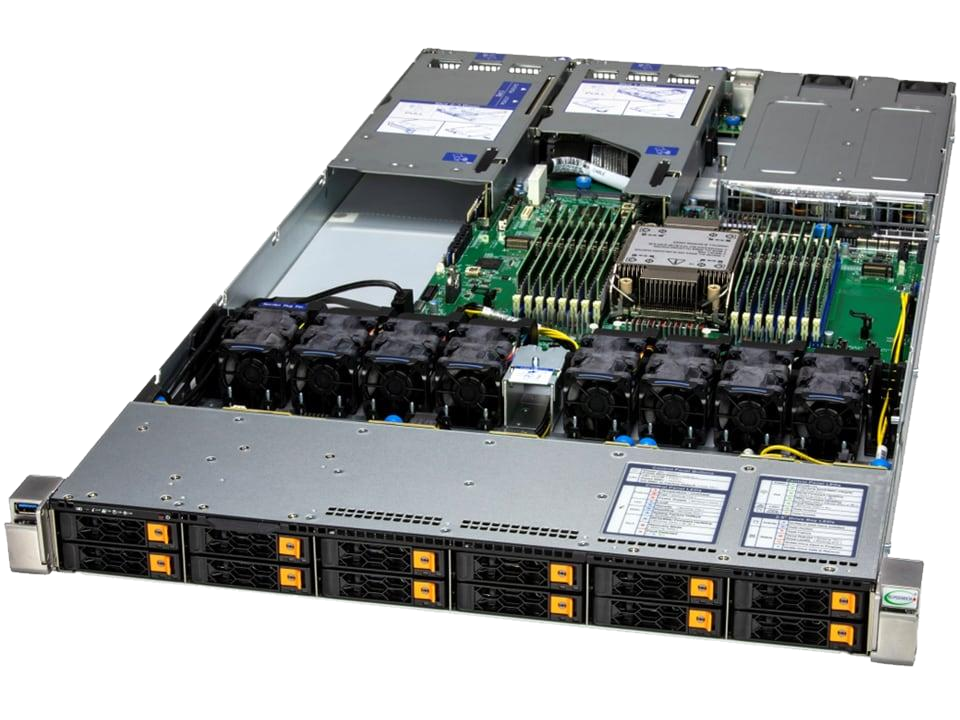

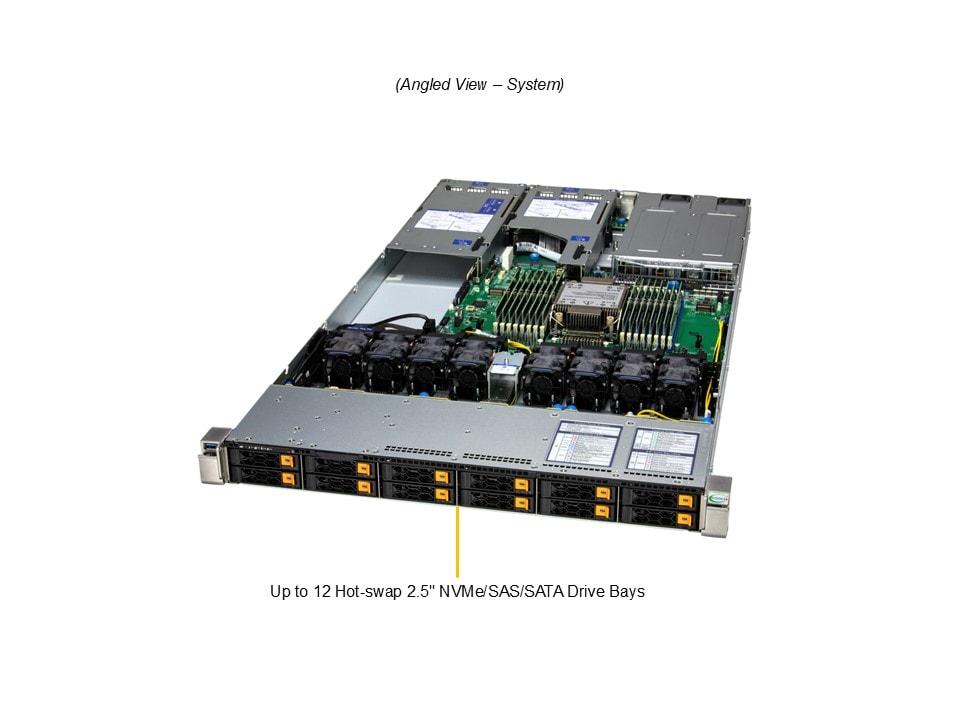

1U UP Hyper supporting up to 12 hot-swap 2.5" NVMe/SAS/SATA bays and up to 3 PCIe 5.0 + 1 PCIe 5.0 AIOM slots
SKU: SYS-112H-TN-01-G2
Features
Key Features
- CPU - Single Intel Xeon 6761P (32-Cores, 2.5GHz)
- Chassis - 1U
- Drive - 7.6TB (2x 3.8TB U.2 NVMe)
- RAM - 8x 128GB DDR5-6400
- Network Ports - 2-port 25GbE
Use Cases
Virtualization
Financial
Scale Out All-Flash NVMe Storage
Data Center Enterprise Applications
Cloud Computing
AI Inference
CDN/vCDN/Cloud CDN
Motherboard

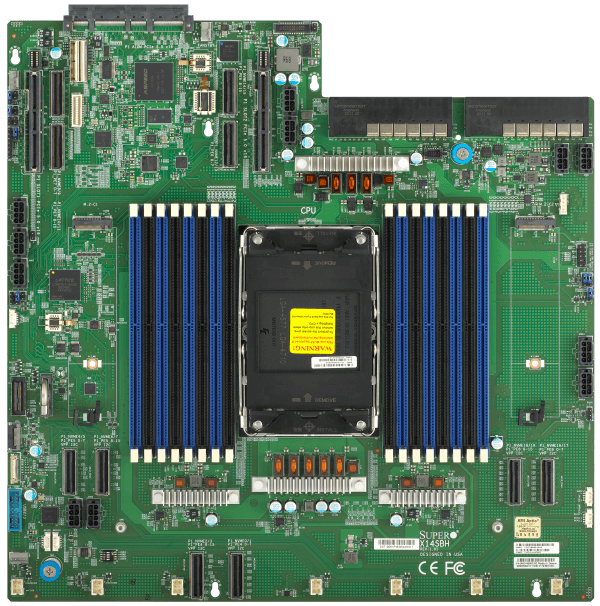

Super X14SBH
GPU
Input / Output
Management
On-Board Devices
PC Health Monitoring
Processor
Security
System BIOS
System Memory
CPU-GPU Interconnect:
PCIe 5.0 x16 CPU-to-GPU Interconnect
Max GPU Count:
Up to 1 double-width or 3 single-width GPUs
Supported GPU:
NVIDIA PCIe: L4, L40S
Intel PCIe: Intel Data Center GPU Flex 170
Intel PCIe: Intel Data Center GPU Flex 170
LAN:
1x RJ45 1 GbE Dedicated BMC LAN port
USB:
2x USB 3.2 Gen1 ports(Rear)
1x USB 3.2 Gen1 port(Front)
1x USB 3.2 Gen1 port(Front)
Video:
1x VGA port
Power Configurations:
Power-on mode for AC power recovery
ACPI Power Management
ACPI Power Management
Software:
SuperCloud Composer®
Supermicro Server Manager (SSM)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Supermicro Server Manager (SSM)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Chipset:
System on Chip
Network Connectivity:
Via AIOM
NVMe:
NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)
CPU:
Monitors for CPU Cores, Chipset Voltages, Memory
Fan:
Fans with tachometer monitoring
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Thermal Control for fan connectors
Core Count:
P-cores: Up to 86C/172T; Up to 336MB Cache
E-cores: Up to 144C/144T; Up to 108MB Cache
E-cores: Up to 144C/144T; Up to 108MB Cache
CPU:
Single Socket E2 (LGA-4710)
Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores
Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores
Note:
Supports up to 350W TDP CPUs (Air Cooled)
Features:
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
Hardware:
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
BIOS Type:
AMI 64MB SPI Flash
Memory:

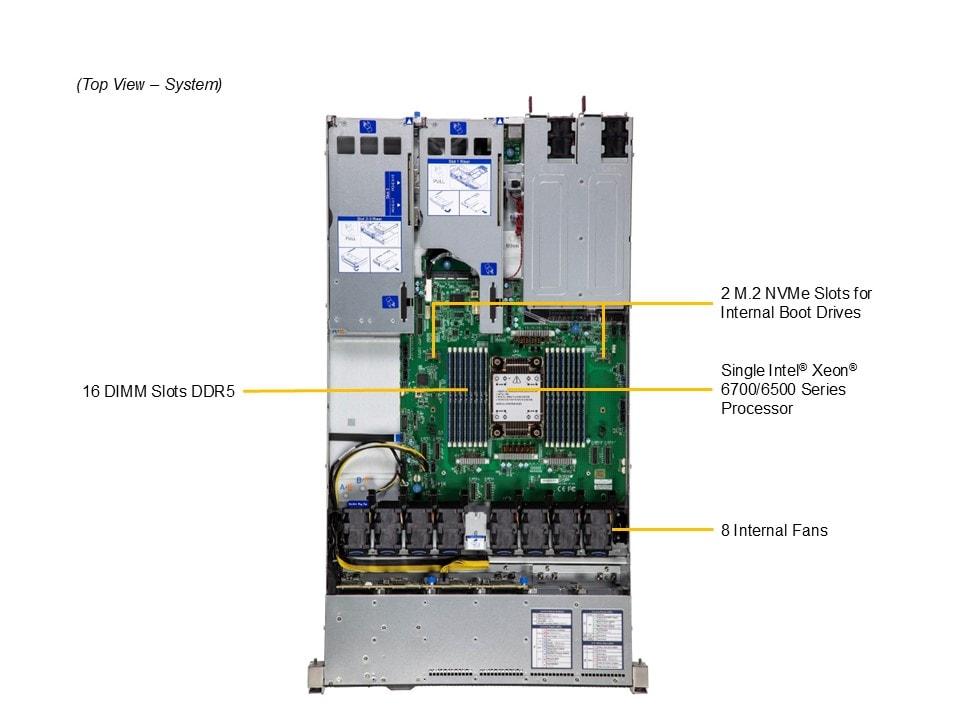

Slot Count: 16 DIMM slots
Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM
Max Memory (1DPC): Up to 512GB 8000MT/s ECC DDR5 MRDIMM
Max Memory (2DPC): Up to 4TB 5200MT/s ECC DDR5 RDIMM
Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM
Max Memory (1DPC): Up to 512GB 8000MT/s ECC DDR5 MRDIMM
Max Memory (2DPC): Up to 4TB 5200MT/s ECC DDR5 RDIMM
Memory Voltage:
1.1V
Chassis
CSE-HS101-R000NFP
Dimensions
Expansion Slots
Form Factor
Front Panel
Model
Operating Environment
Power Supply
Storage
System Cooling
Environmental / Recycling
Available Color:
Silver
Depth:
30.66 in
Gross Weight:
41.45 lb
Height:
1.7 in
Net Weight:
19.18 lb
Package Depth:
43.31 in
Package Height:
8.82 in
Package Width:
26.46 in
Width:
17.2 in
PCI-Express (PCIe) Configuration:

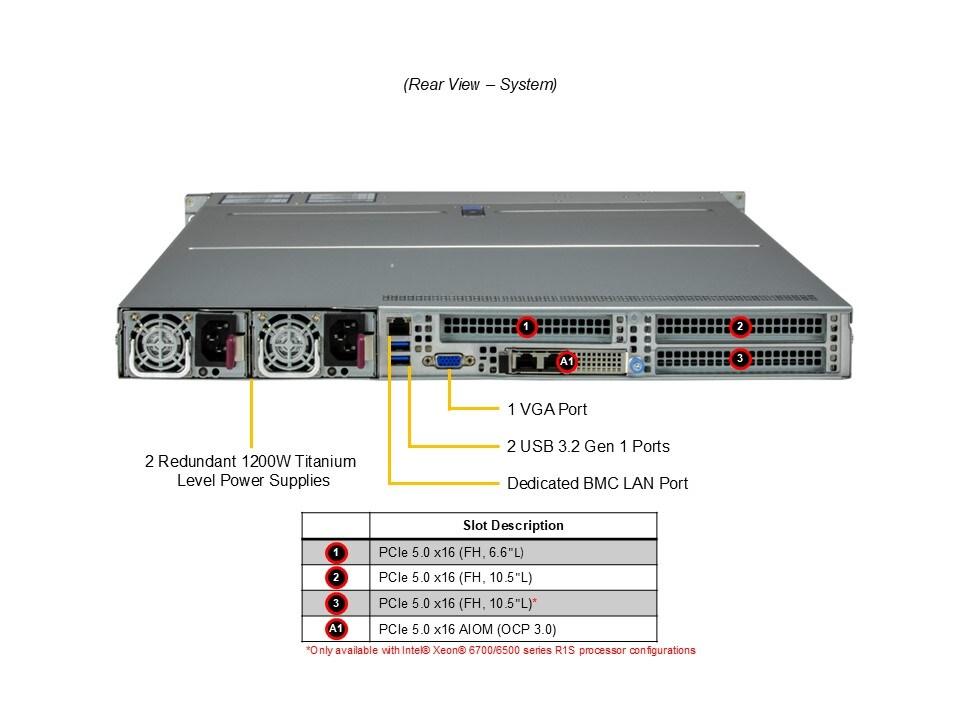

Default 1 PCIe 5.0 x16 (in x16) FHHL slot 1 PCIe 5.0 x16 (in x16) FHFL double-width slot 1 PCIe 5.0 x16 (in x16) AIOM slot (OCP 3.0 compatible)
Option A* 1 PCIe 5.0 x16 (in x16) FHHL slot 2 PCIe 5.0 x16 (in x16) FHFL slots 1 PCIe 5.0 x16 (in x16) AIOM slot (OCP 3.0 compatible)
(*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
Option A* 1 PCIe 5.0 x16 (in x16) FHHL slot 2 PCIe 5.0 x16 (in x16) FHFL slots 1 PCIe 5.0 x16 (in x16) AIOM slot (OCP 3.0 compatible)
(*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
Form Factor:
Rackmount
Buttons:
Power On/Off
UID button
UID button
LED:
HDD activity
LAN1 activity
Power status
System information
LAN1 activity
Power status
System information
Model:
CSE-HS101-R000NFP
Environmental Spec.:
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
2x 1200W Titanium
+12V:
Max: 66.7A / Min: 0A (100Vac-127Vac)
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vac-240Vac)
Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vac-240Vac)
Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
12V SB:
Max: 2.1A / Min: 0A
Description:
2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (W x H x L):
73.5 x 40 x 265 mm
Input:
800W: 100-127Vac
800W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 230-240Vdc / 50-60Hz (for CCC only)
800W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 230-240Vdc / 50-60Hz (for CCC only)
Output Type:
Backplanes (gold finger)
2x 1300W Gold
+12V:
Max: 108.3A / Min: 0A
12V SB:
Max: 2.1A
Description:
2x 1300W Redundant (1 + 1) Gold (Certification Pending) Level power supplies
Dimension (W x H x L):
73.5 x 40 x 265 mm
Input:
1300W: -44--65Vdc / 50-60Hz
Output Type:
Backplanes (gold finger)
2x 1600W Titanium
+12V:
Max: 83.3A / Min: 0A (100Vac-127Vac)
Max: 133.3A / Min: 0A (200Vac-240Vac)
Max: 133.3A / Min: 0A (200Vac-240Vac)
12V SB:
Max: 3.5A / Min: 0A
Max: 3.5A
Max: 3.5A
Description:
2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (W x H x L):
73.5 x 40 x 265 mm
Input:
1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1600W: 200-240Vac
1600W: 200-240Vac / 50-60Hz
1600W: 200-240Vdc / 50-60Hz (for CQC only)
1000W: 100-127Vac / 50-60Hz
1600W: 200-240Vac
1600W: 200-240Vac / 50-60Hz
1600W: 200-240Vdc / 50-60Hz (for CQC only)
Output Type:
Backplanes (gold finger)
2x 2000W Titanium
+12V:
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 166A / Min: 0A (230Vac-240Vac)
Max: 225A / Min: 0A (200Vac-240Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 166A / Min: 0A (230Vac-240Vac)
Max: 225A / Min: 0A (200Vac-240Vac)
12V SB:
Max: 3.5A / Min: 0A
Description:
2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (W x H x L):
73.5 x 40 x 265 mm
Input:
1000W: 100-127Vac / 50-60Hz
1800W: 200-220Vac / 50-60Hz
1980W: 220-230Vac / 50-60Hz
2000W: 230-240Vac / 50-60Hz
2000W: 220-240Vac / 50-60Hz (for UL only)
2000W: 230-240Vdc / 50-60Hz (for CQC only)
2700W: 200-240Vac
1800W: 200-220Vac / 50-60Hz
1980W: 220-230Vac / 50-60Hz
2000W: 230-240Vac / 50-60Hz
2000W: 220-240Vac / 50-60Hz (for UL only)
2000W: 230-240Vdc / 50-60Hz (for CQC only)
2700W: 200-240Vac
Output Type:
Backplanes (gold finger)
Drive Bays
Configuration 1
Count:
8
Form Factor:
2.5"
Location:
front
Option:
default
Interface
Configuration 1
Interface:
NVMe
Configuration 2
Interface:
SAS
Configuration 3
Interface:
SATA
Configuration 2
Count:
8
Form Factor:
2.5"
Location:
front
Option:
option_a
Interface
Configuration 1
Interface:
NVMe
Configuration 2
Interface:
SAS
Configuration 3
Interface:
SATA
Configuration 3
Count:
4
Form Factor:
2.5"
Location:
front
Option:
option_a
Interface
Configuration 1
Interface:
SAS
Configuration 2
Interface:
SATA
Configuration 4
Count:
12
Form Factor:
2.5"
Location:
front
Option:
option_b
Interface
Configuration 1
Interface:
NVMe
Configuration 2
Interface:
SAS
Configuration 3
Interface:
SATA
M.2
Count:
2
Keys
Configuration 1
Keys:
M
Air Shroud:
1x CPU Air Shroud
Fans:
Up to 8 counter-rotating 40x40x56mm Fan(s)
Recycle:
Contact us at lifecycle@rackables.com for recycling options.
Part NumberQtyDescription
Cable Management Arm + Rail Set
MCP-290-00168-0N + MCP-290-11901-0N17.5" cable management arm + 41" long ball-bearing rail set
CacheVault for Broadcom 3916/3908
BTR-CVPM05 + MCP-120-00092-0N1CacheVault Flash Cache Protection Module for Broadcom 3916/3908 RAID controller (CVPM05) + slot 2-3 riser cage mounting bracket
Drive Bay Configuration Options

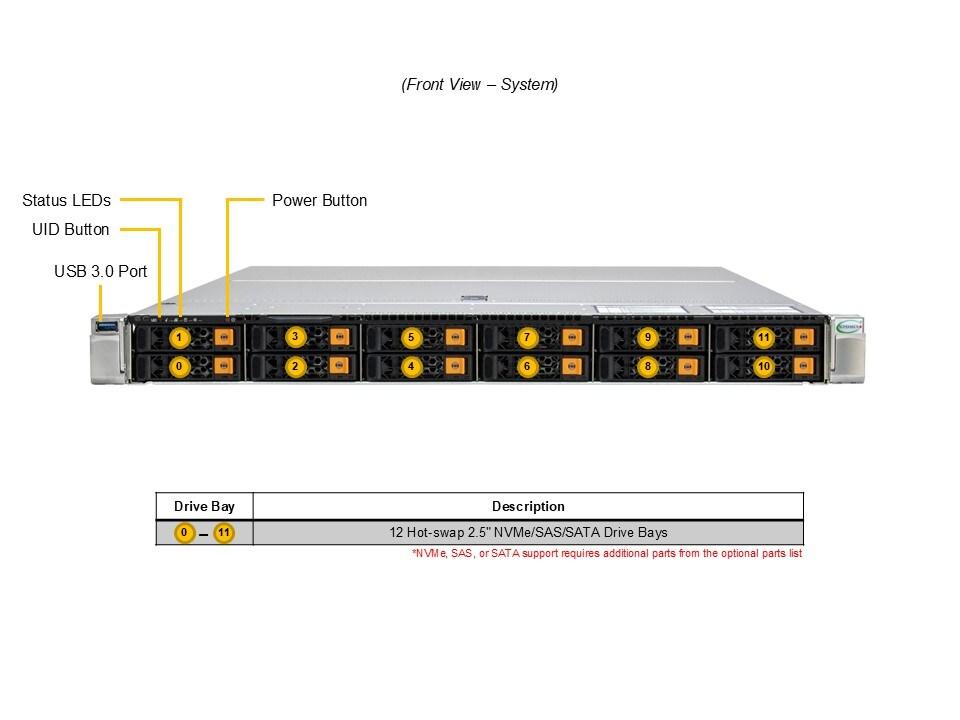

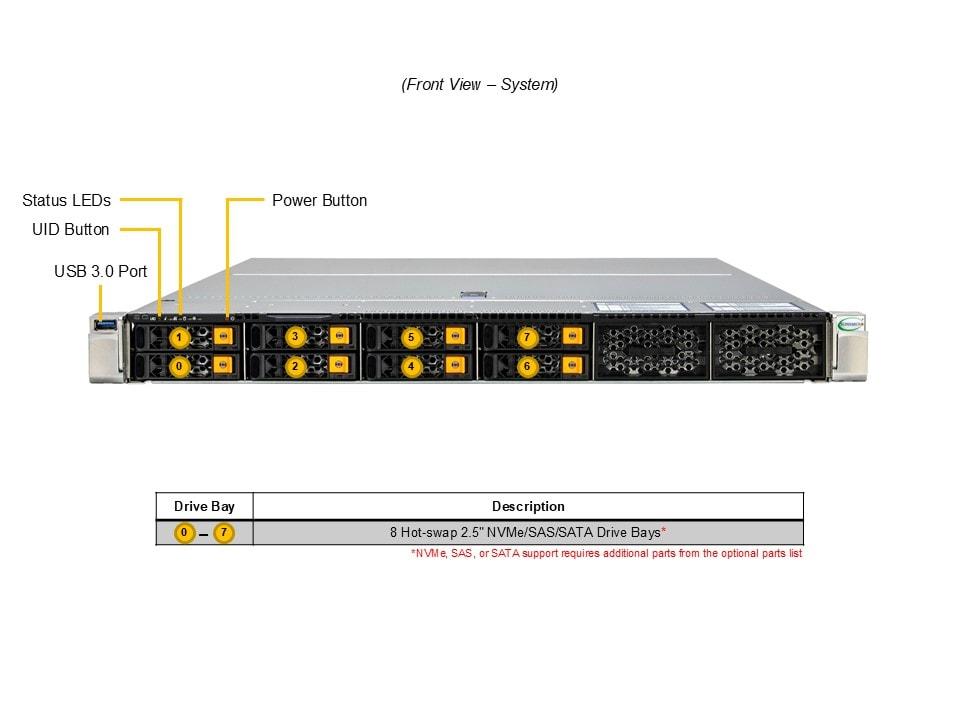

Refer to User's Manual8 & 12 drive bay configuration options for NVMe, SAS, or SATA support
