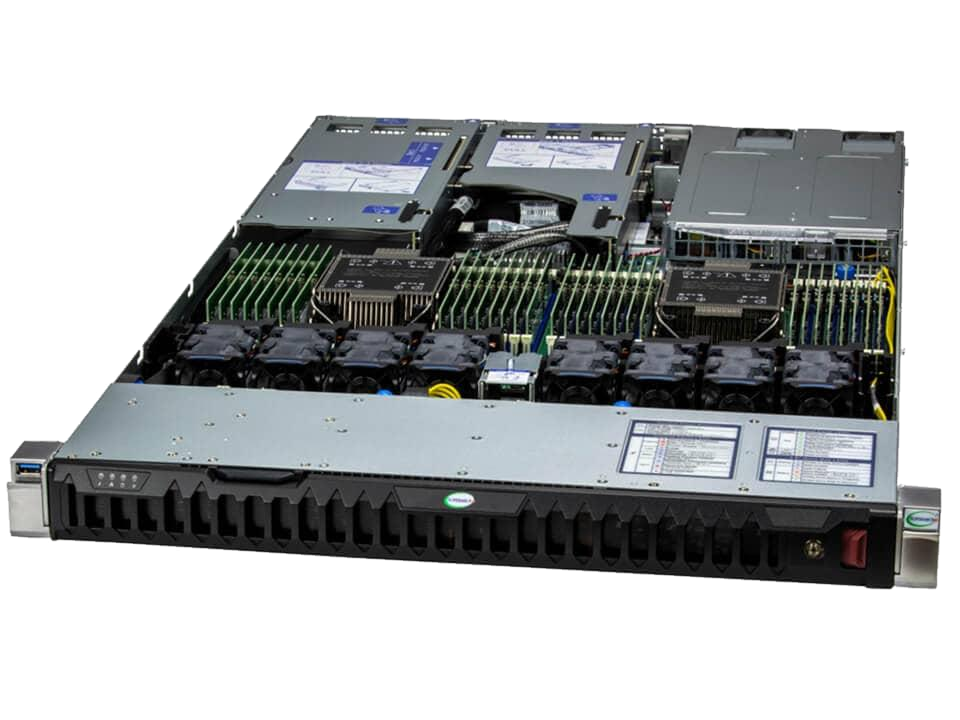

Name: Supermicro SYS-121H-TNR-G1 1U Server
Brand: Supermicro
SKU: SYS-121H-TNR-G1
Availability: InStock

Key Features

CPU - Dual Intel® Xeon® Gold 6548Y+ Processors (32-Cores)
Chassis - 1U / 1 Node
Drive - 2x 960GB M.2 NVMe + 2x 3.8TB U.2 NVMe
RAM - 16x 32GB DDR5-5600 RDIMM Memory
Network Ports - 2x 10GbE RJ45 LAN Ports via AIOM

Use Cases

Virtualization

Software-defined Storage

AI Inference and Machine Learning

Cloud Computing

Enterprise Server

Motherboard

Super X13DEM

BIOS Type:

AMI 64MB SPI Flash

Max GPU Count:

Up to 1 double-width or 3 single-width GPUs

Supported GPU:

NVIDIA PCIe: H100 NVL, H100, RTX A5000, RTX A4000, L40S, L4

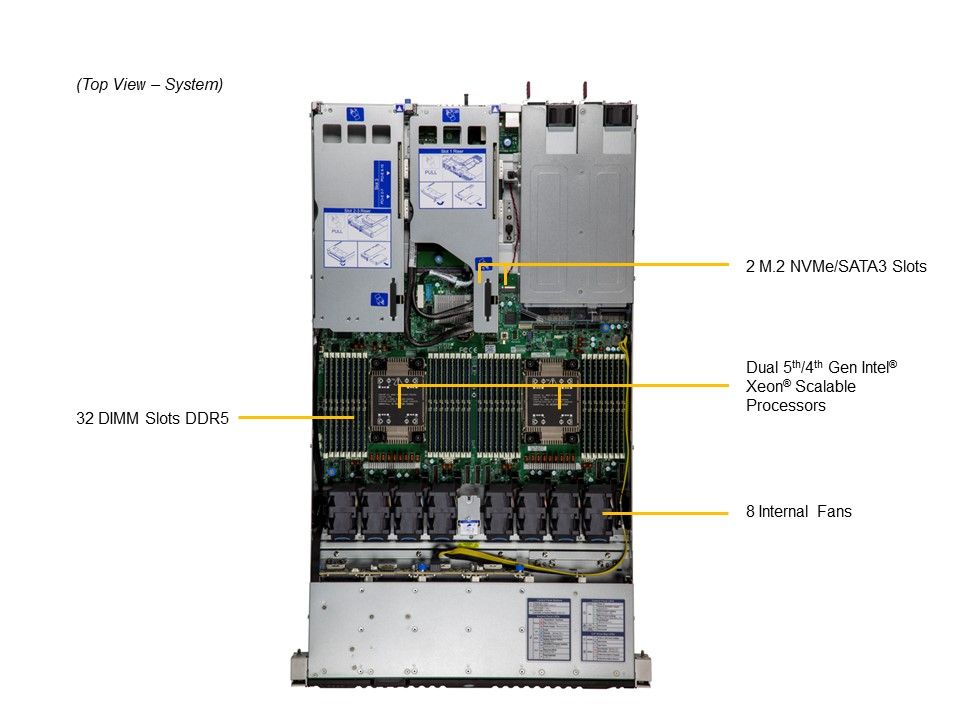

Memory:

Slot Count: 32 DIMM slots
Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM

Memory Voltage:

1.1V

NVMe:

NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)

Chipset:

Intel® C741

Network Connectivity:

Via AIOM

SATA:

SATA (6Gbps) ; RAID 0/1/5/10 support

LAN:

1x RJ45 1 GbE Dedicated BMC LAN port

USB:

2x USB 2.0 ports(rear)
1x USB 3.0 port(front)

Video:

1x VGA port

Software:

SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!

Power Configurations:

Power-on mode for AC power recovery
ACPI Power Management

Hardware:

Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features:

Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown

CPU:

Monitors for CPU Cores, Chipset Voltages, Memory

Fan:

Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors

Temperature:

Monitoring for CPU and chassis environment
Thermal Control for fan connectors

CPU:

Dual Socket E (LGA-4677)
5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)

Cores:

Up to 64C/128T; Up to 320MB Cache per CPU

Note:

Supports up to 350W TDP CPUs (Air Cooled)*
Supports up to 350W TDP CPUs (Liquid Cooled)
*Air Cooled CPUs with TDP over 250W only supported under specific conditions. Contact a Supermicro representative for details.

Chassis

Buttons:

Power On/Off
UID button

LED:

HDD activity
LAN1 activity
Power
System information

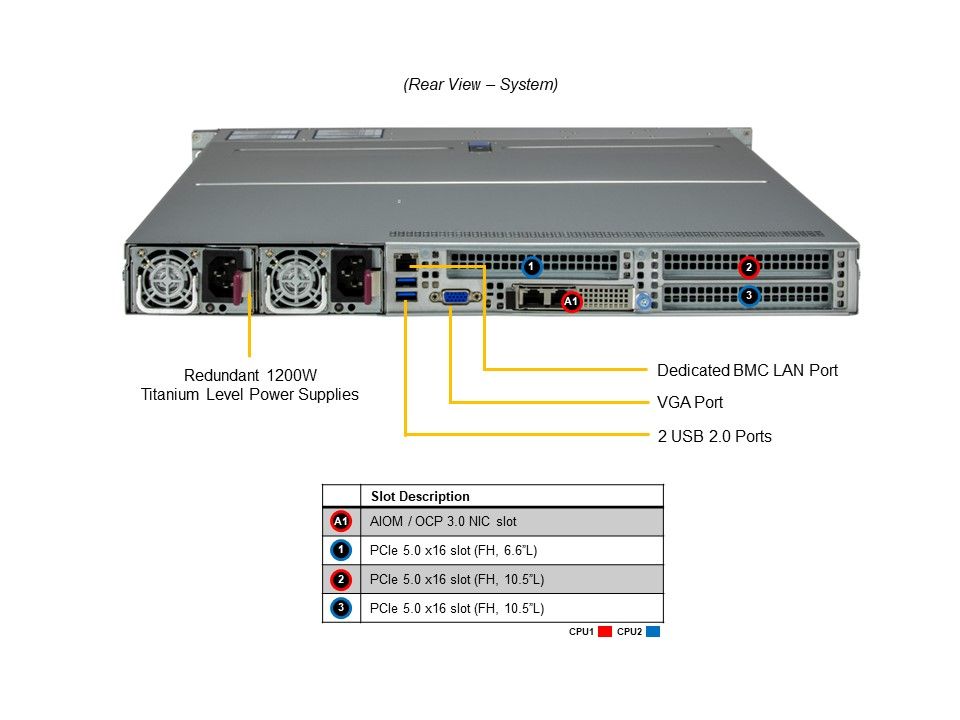

PCI-Express (PCIe) Configuration:

Default
1x PCIe 5.0 x16 FHHL slot
2x PCIe 5.0 x16 FH/10.5"L slots
1x PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

M.2:

2x M.2 NVMe/SATA slots (B+M-key 2280/22110)

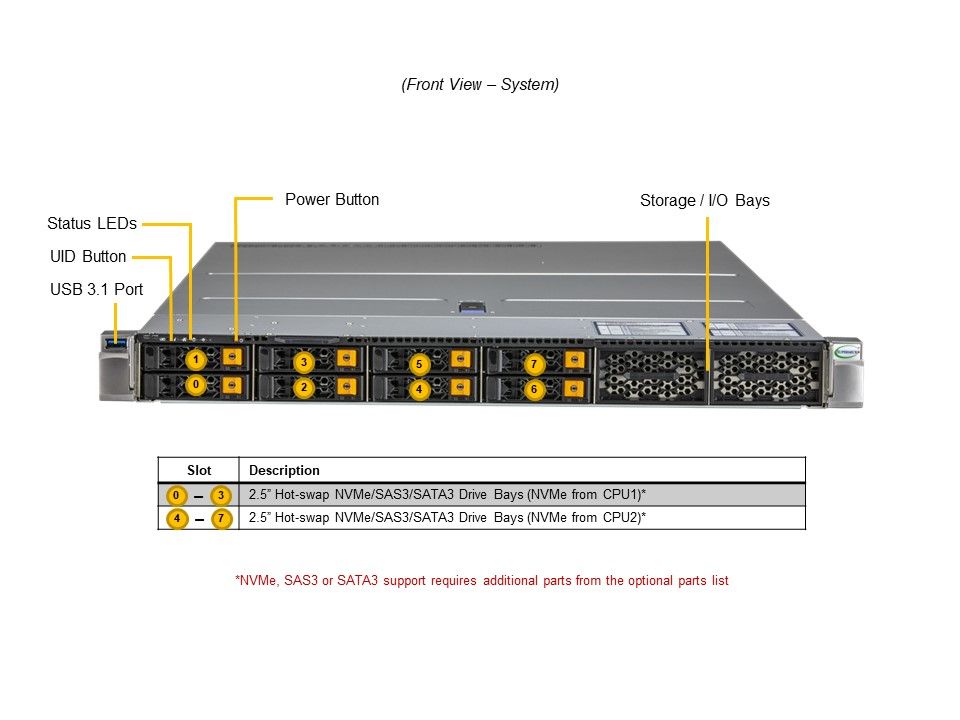

Drive Bays Configuration:

Default: Total 8 bays
8x front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
Option A: Total 12 bays
12x front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
(*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)

M.2:

2x M.2 NVMe/SATA slots (M-key 2280/22110)

Fans:

8x counter-rotating 40x40x56mm Fan(s)

Air Shroud:

2x Air Shrouds

Liquid Cooling:

Direct to Chip (D2C) Cold Plate (optional)

Environmental Spec.:

Name: A2
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -30°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing)
Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing)

Configuration:

2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies

Dimension (W x H x L):

73.5 x 40 x 265 mm

Input:

800W: 100-127Vac
800W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 230-240Vdc / 50-60Hz (for CCC only)

+12V:

Max: 66.7A / Min: 0A (100Vac-127Vac)
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vac-240Vac)
Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)

12V SB:

Max: 2.1A / Min: 0A

Output Type:

Backplanes (gold finger)

Height:

1.7 in

Width:

17.2 in

Depth:

29.4 in

Gross Weight:

48.94 lb

Net Weight:

33.95 lb

Available Color:

N/A

Recycle:

Contact us at lifecycle@rackables.com for recycling options.

Part NumberQtyDescription

Cable Management Arm + Rail Set

MCP-290-00168-0N + MCP-290-11901-0N-7.5" cable management arm + 41" long ball-bearing rail set

CacheVault for Broadcom 3916/3908

BTR-CVPM05 + MCP-120-00092-0N1CacheVault Flash Cache Protection Module for Broadcom 3916/3908 RAID controller (CVPM05) + slot 2-3 riser cage mounting bracket

Drive Bay Configuration Options

Refer to User's Manual-8 & 12 drive bay configuration options for NVMe, SAS, or SATA support

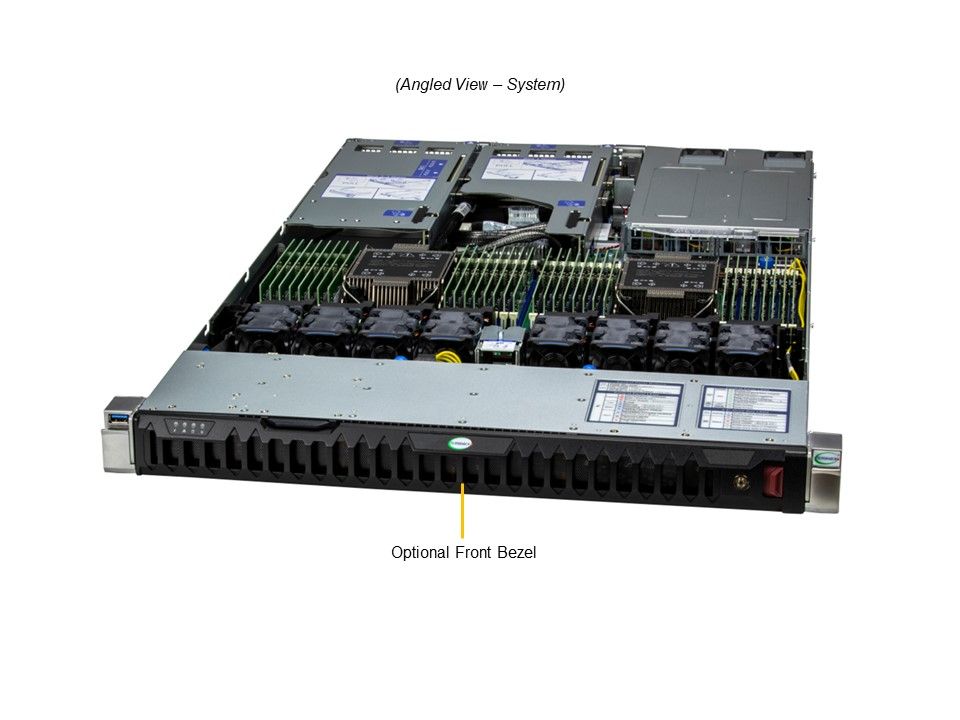

Front Bezel

MCP-210-11909-0B1Optional front bezel for 1U Hyper

Global Services & Support

OS4HR3/2/1-Gold Level, 3/2/1-year onsite 24x7x4 SLAOSNBD3/2/1-Silver Level, 3/2/1-year onsite NBD SLASMSAD3/2/1-Bronze Level, 3/2/1-year 3BD SLA

Power Supply

MCP-250-00025-0N-Single Power Supply Dummy Cover (W73.5mm) for 1U/2U Hyper ChassisPWS-2K63A-1R-1U 2600W Redundant Power Supply, 80 PLUS Titanium, W73.5xH40xL265mm, C20 inletPWS-2K07A-1R-1U 1000W/2000W Redundant Power Supply, 80 PLUS Titanium, W73.5xH40xL265mm, C14 inletPWS-1K63A-1R-1U 1000W/1600W Redundant Power Supply, 80 PLUS Titanium, W73.5xH40xL265mm, C14 inletPWS-1K24A-1R (included in the system)-1U 800W/1200W Redundant Power Supply, 80 PLUS Titanium, W73.5xH40xL265mm, C14 inlet

Rail Set

MCP-290-21103-0N121.65" ball-bearing rail set for Hyper serversMCP-290-11903-0N (included in the system )130.5" ball-bearing rail set for Hyper serversMCP-290-11902-0N135.25" ball-bearing rail set for Hyper serversMCP-290-11901-0N141" ball-bearing rail set for Hyper servers

Software

SFT-DCMS-Single1DataCenter Management Package (per node license)

Trusted Platform Module Options

AOM-TPM-9672V-FIPS-O1AOM-TPM-9672V-FIPS TPM 2.0 support FIPSAOM-TPM-9672V-O1SPI capable vertical TPM 2.0

Warranty & Support

Please visit the link for more information about Supermicro products warranty.
