Supermicro
$58,862.72SYS-212GB-FNR-01-G2
Elevate your data center performance with the Supermicro SYS-212GB-FNR, a compact 2U single-node powerhouse designed for high-density compute environments. Featuring the latest Intel® Xeon® 6731P 32-Core processor and a massive 512GB of high-speed DDR5-6400 RAM, this system is built to handle intensive multi-threaded workloads without bottlenecking.
Engineered for professional visualization and AI inference, this configuration includes dual NVIDIA RTX 6000 Server Edition GPUs, providing unparalleled graphical horsepower. Storage is optimized for speed and reliability with a 960GB M.2 boot drive and a lightning-fast 3.84TB E1.S NVMe drive. Whether you are scaling a CDN or deploying edge nodes, the dual 10GbE RJ45 LAN ports ensure low-latency connectivity.
SKU: SYS-212GB-FNR-01-G2
Features
Key Features
- CPU - Single Intel® Xeon® 6731P Processor (32-Core)
- GPU - 2x NVIDIA RTX 6000 PRO Server Edition
- Chassis - 2U / 1 Node
- Drive - 1x 960GB M.2 NVMe + 2x 3.84TB E1.S NVMe
- RAM - 8x 64GB DDR5-6400 RDIMM Memory
- Network Ports - 2x 10GbE RJ45 LAN Ports
Use Cases
Scientific Research
Model analysis
High Performance Computing (HPC)
Research Lab
Financial Services
Edge AI

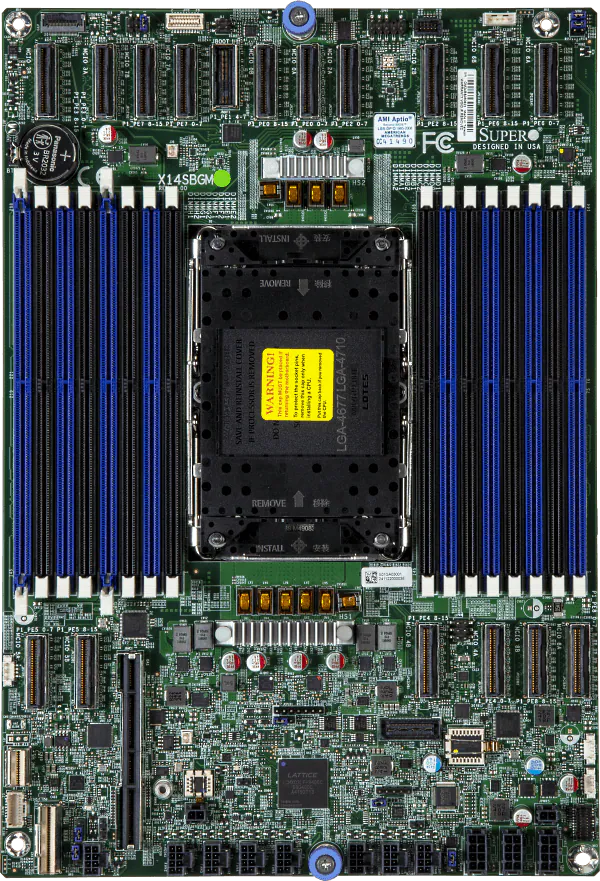

Motherboard
Super X14SBGM
GPU
Input / Output
Management
On-Board Devices
PC Health Monitoring
Processor
Security
System BIOS
System Memory
CPU-GPU Interconnect:
PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect:
NVIDIA® NVLink™ Bridge (optional)
Max GPU Count:
Up to 4 double-width GPUs
Supported GPU:
NVIDIA PCIe: NVIDIA RTX PRO™ 6000 Blackwell Server Edition
LAN:
1x RJ45 1 GbE Dedicated BMC LAN port
USB:
1x USB 3.0 Type-A port(Rear)
Video:
1x mini-DP port
Power Configurations:
Power-on mode for AC power recovery
ACPI Power Management
ACPI Power Management
Software:
SuperCloud Composer®
Supermicro Server Manager (SSM)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Plug-ins for 3rd Party Software
Supermicro Server Manager (SSM)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Plug-ins for 3rd Party Software
Chipset:
System on Chip
CPU:
8+4 Phase-switching voltage regulator
Monitors for CPU Cores, Chipset Voltages, Memory
Monitors for CPU Cores, Chipset Voltages, Memory
Fan:
Fans with tachometer monitoring
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Thermal Control for fan connectors
Core Count:
Up to 80C/160T
CPU:
Single Socket E2 (LGA-4710)
Intel® Xeon® 6700-series processors with P-cores
Intel® Xeon® 6700-series processors with P-cores
Note:
Supports up to 350W TDP CPUs (Air Cooled)
Features:
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
Hardware:
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
BIOS Type:
AMI 64MB SPI Flash EEPROM
Memory:
Slot Count: 16 DIMM slots/8 Channels
Max Memory (1DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMM
Max Memory (1DPC): Up to 512GB 8000MT/s ECC DDR5 MRDIMM
Max Memory (2DPC): Up to 2TB 5200MT/s ECC DDR5 RDIMM
Max Memory (1DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMM
Max Memory (1DPC): Up to 512GB 8000MT/s ECC DDR5 MRDIMM
Max Memory (2DPC): Up to 2TB 5200MT/s ECC DDR5 RDIMM
Memory Voltage:
1.1V
Chassis
CSE-MG204-R000NDFP
Dimensions
Expansion Slots
Form Factor
Front Panel
Model
Operating Environment
Power Supply
Storage
System Cooling
Environmental / Recycling
Available Color:
Silver
Depth:
35.43 in
Gross Weight:
84 lb
Height:
3.43 in
Net Weight:
65.92 lb
Package Depth:
47.24 in
Package Height:
11.02 in
Package Width:
27.56 in
Width:
17.3 in
M.2:
2x M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110)
PCI-Express (PCIe) Configuration:
Default 4 PCIe 5.0 x16 FHFL double-width slots 3 PCIe 5.0 x16 FHFL slots View AOC Options
Form Factor:
Rackmount
Buttons:
Power On/Off
LED:
HDD activity
Model:
CSE-MG204-R000NDFP
Environmental Spec.:
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing)
Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing)
Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing)
Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing)
2x 2700W Titanium
+12V:
Max: 225A / Min: 0A (200Vac-240Vac)
Max: 225A / Min: 0A (240Vdc-240Vdc)
Max: 225A / Min: 0A (240Vdc-240Vdc)
12V SB:
Max: 4A / Min: 0A
Description:
2x 2700W Redundant Titanium Level (96%) power supplies
Dimension (W x H x L):
73.5 x 40 x 185 mm
Input:
2700W: 200-240Vac / 50-60Hz
2700W: 240-240Vdc / 50-60Hz (for CQC only)
2700W: 240-240Vdc / 50-60Hz (for CQC only)
Output Type:
Backplanes (gold finger)
Drive Bays
Configuration 1
Count:
4
Form Factor:
E1.S
Location:
rear
Option:
default
Interface
Configuration 1
Interface:
PCIe 5.0 x4 NVMe
M.2
Count:
2
Generation:
PCIe 5.0
Lanes:
2
Keys
Configuration 1
Keys:
M
Fans:
5x 8cm heavy duty fans with optimal fan speed control
Recycle:
Contact us at lifecycle@rackables.com for recycling options.
Part NumberQtyDescription
Rails
MCP-290-20104-0N137.3" ball bearing rail set with auto latch, no cable arm feature
Trusted Platform Module Options
AOM-TPM-9672V-O1TPM 2.0 with 10 pins SPI,RoHS
