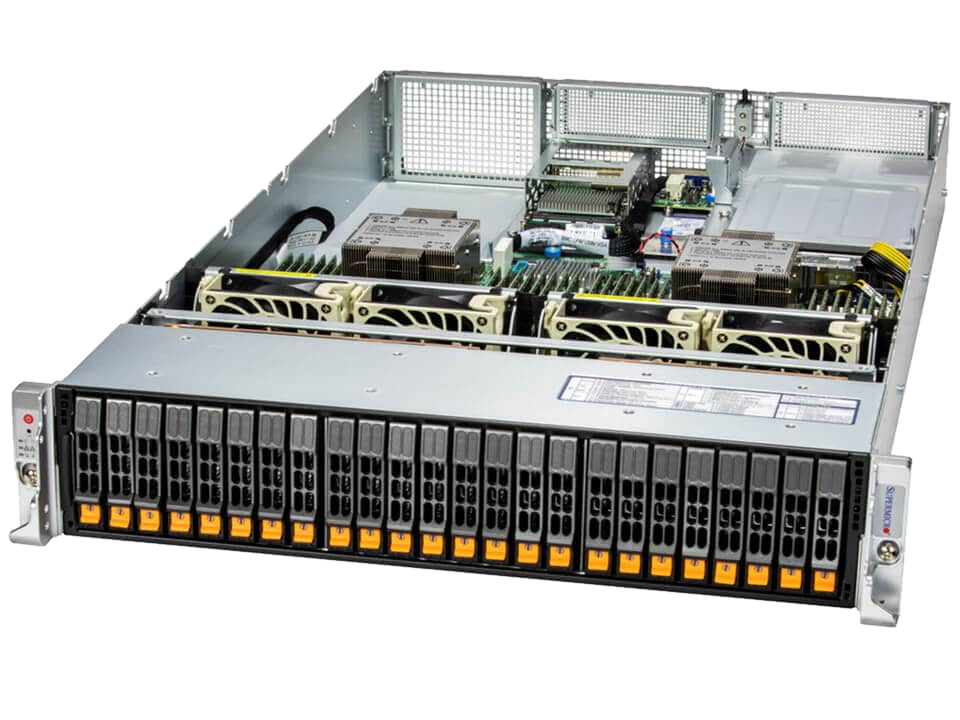

SYS-221H-TN24R-G1
RFQ Only
This powerful 2U rack server is engineered for resource-intensive workloads such as virtualization, AI inference and machine learning, enterprise server applications, software-defined storage, and cloud computing. Harness the immense power of dual Intel® Xeon® Gold 6548Y+ processors (32 cores each) and 256GB of DDR5-5600 RDIMM memory for exceptional performance. Two 960GB M.2 NVMe drives and four 3.8TB U.2 NVMe drives provide a perfect balance of speed and capacity for your data storage needs. Connect seamlessly with dual 25GbE SFP28 ports via AIOM and take advantage of our 24-hour shipping for rapid deployment.
SKU: SYS-221H-TN24R-G1
Features
Key Features
- CPU - Dual Intel® Xeon® Gold 6548Y+ Processors (32-Cores)
- Chassis - 2U / 1 Node
- Drive - 2x 960GB M.2 NVMe + 4x 3.8TB U.2 NVMe
- RAM - 4x 64GB DDR5-5600 RDIMM Memory
- Network Ports - 2x 25GbE SFP28 Ports via AIOM
Use Cases
Virtualization
Software-defined Storage
AI Inference and Machine Learning
Cloud Computing
Enterprise Server
Motherboard
Super X13DEM
GPU
Input / Output
Management
On-Board Devices
PC Health Monitoring
Processor
Security
System BIOS
System Memory
Max GPU Count:
Up to 2 double-width or 3 single-width GPUs
Supported GPU:
NVIDIA PCIe: A100, L40S, RTX A2000
LAN:
1x RJ45 1 GbE Dedicated BMC LAN port
USB:
2x USB 2.0 ports(rear)
2x USB 3.0 ports(Header)
2x USB 3.0 ports(Header)
Video:
1x VGA port
Power Configurations:
Power-on mode for AC power recovery
ACPI Power Management
ACPI Power Management
Software:
SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Chipset:
Intel® C741
Network Connectivity:
Via AIOM
NVMe:
NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)
SATA:
SATA (6Gbps) ; RAID 0/1/5/10 support
CPU:
Monitors for CPU Cores, Chipset Voltages, Memory
Fan:
Fans with tachometer monitoring
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Thermal Control for fan connectors
Cache:
Up to 320MB Cache per CPU
Cores:
Up to 64C/128T; Up to 320MB Cache per CPU
CPU:
Dual Socket E (LGA-4677)
5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)
5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)
Note:
Supports up to 350W TDP CPUs (Air Cooled)
Supports up to 350W TDP CPUs (Liquid Cooled)
Supports up to 350W TDP CPUs (Liquid Cooled)
Features:
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
Hardware:
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
BIOS Type:
AMI 64MB SPI Flash
Memory:
Slot Count: 32 DIMM slots
Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM
Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM
Memory Voltage:
1.1V
Chassis
CSE-HS219-R1K63P
Dimensions
Expansion Slots
Form Factor

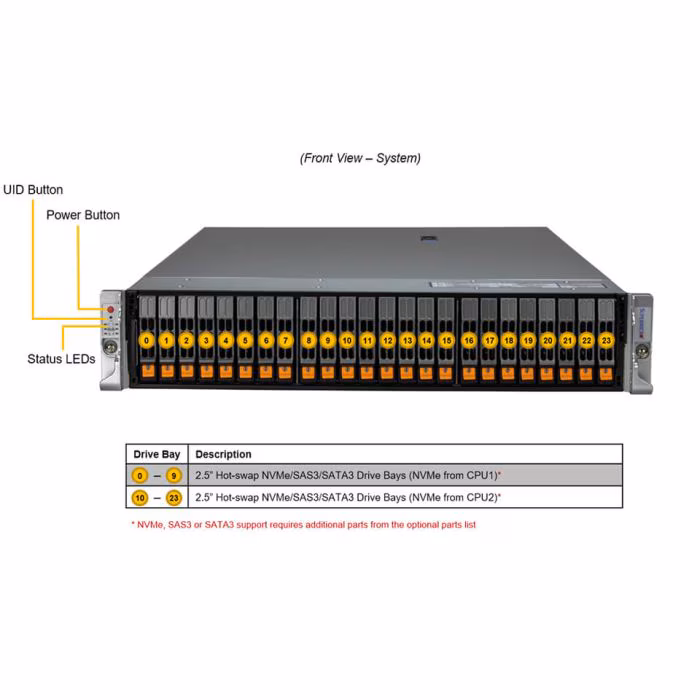

Front Panel
Model
Operating Environment
Power Supply
Storage
System Cooling
Environmental / Recycling
Available Color:
N/A
Depth:
29.9 in
Gross Weight:
65.92 lb
Height:
3.5 in
Net Weight:
39.9 lb
Package Depth:
43.6 in
Package Height:
10.4 in
Package Width:
23.8 in
Width:
17.2 in
M.2:
2x M.2 NVMe/SATA slots (B+M-key 2280/22110)
PCI-Express (PCIe) Configuration:
Option A*
4x PCIe 5.0 x16 (in x16) FH/10.5"L double-width slots
2x PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Option B*
8x PCIe 5.0 x8 (in x16) FH/10.5"L slots
2x PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)

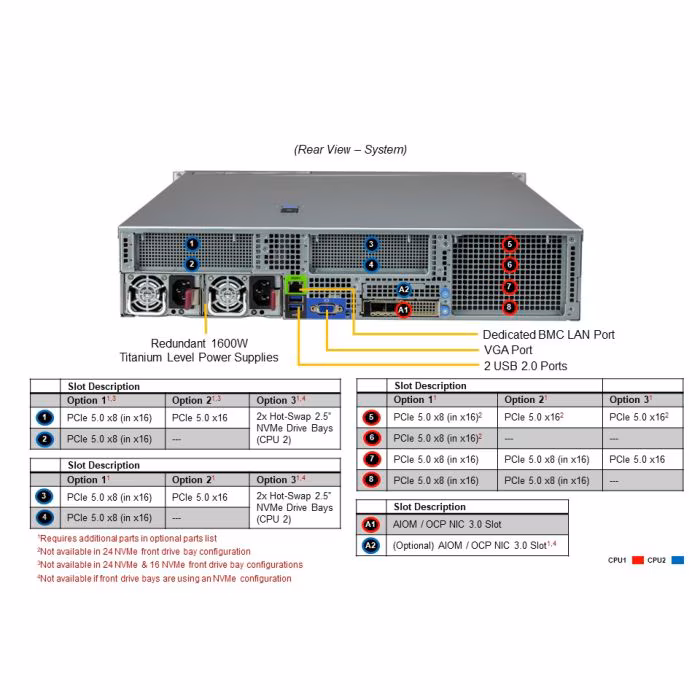

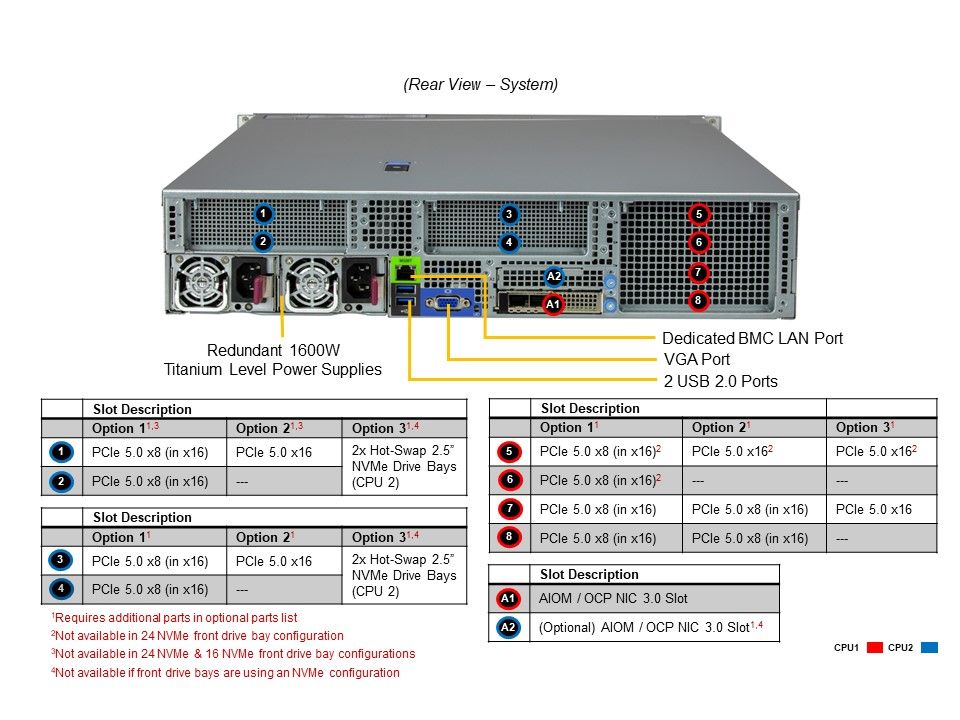

(*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
4x PCIe 5.0 x16 (in x16) FH/10.5"L double-width slots
2x PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Option B*
8x PCIe 5.0 x8 (in x16) FH/10.5"L slots
2x PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
(*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
Form Factor:
Rackmount
Buttons:
Power On/Off
Power On/Off
UID button
Power On/Off
UID button
LED:
HDD activity
LAN1 activity
Power
System information
LAN1 activity
Power
System information
Model:
CSE-HS219-R1K63P
Environmental Spec.:
Name: A2
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -30°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing)
Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing)
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -30°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing)
Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing)
2x 1600W Titanium
+12V:
Max: 83.3A / Min: 0A (100Vac-127Vac)
Max: 133.3A / Min: 0A (200Vac-240Vac)
Max: 133.3A / Min: 0A (200Vac-240Vac)
12V SB:
Max: 3.5A / Min: 0A
Max: 3.5A
Max: 3.5A
Description:
2x 1600W Redundant Titanium Level (96%) Hot-plug power supplies
Dimension (W x H x L):
73.5 x 40 x 265 mm
Input:
1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1600W: 200-240Vac
1600W: 200-240Vac / 50-60Hz
1600W: 200-240Vdc / 50-60Hz (for CQC only)
1000W: 100-127Vac / 50-60Hz
1600W: 200-240Vac
1600W: 200-240Vac / 50-60Hz
1600W: 200-240Vdc / 50-60Hz (for CQC only)
Output Type:
Backplanes (gold finger)

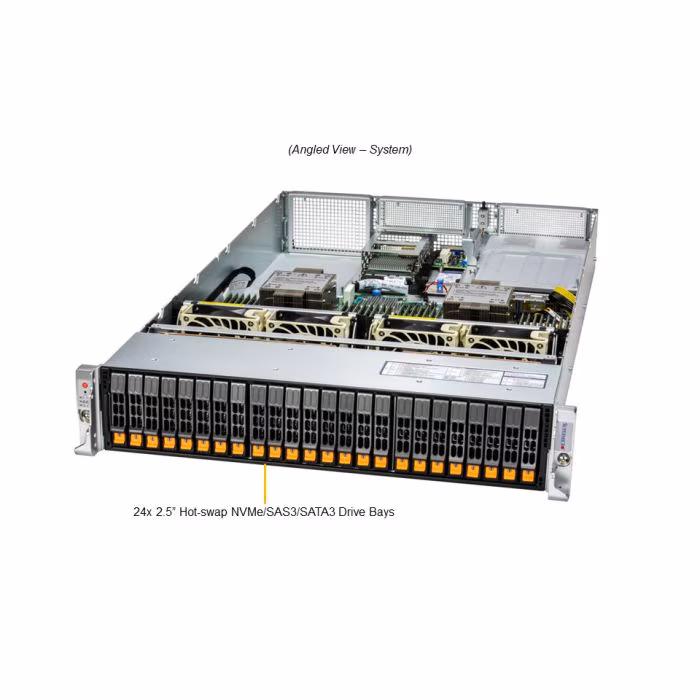

Drive Bays
Configuration 1
Count:
24
Form Factor:
2.5"
Location:
front
Option:
default
Interface
Configuration 1
Interface:
NVMe
Configuration 2
Interface:
SAS
Configuration 3
Interface:
SATA
M.2
Count:
2
Keys
Configuration 1
Keys:
M
Air Shroud:
2x Air Shrouds
Fans:
Up to 4x 8cm heavy duty fans with optimal fan speed control
Liquid Cooling:
Direct to Chip (D2C) Cold Plate (optional)
Recycle:
Contact us at lifecycle@rackables.com for recycling options.
Part NumberQtyDescription
2nd AIOM/OCP NIC 3.0 Slot
Refer to User's ManualAIOM slot A2 kit
Cable Management Arm + Rail Set
MCP-290-00168-0N + MCP-290-11901-0N7.5" cable management arm + 41" long ball-bearing rail set
Drive Bay Configuration Options
Refer to User's ManualDrive bay configuration options for NVMe, SAS, or SATA support
Global Services & Support
OS4HR3/2/1Gold Level, 3/2/1-year onsite 24x7x4 SLAOSNBD3/2/1Silver Level, 3/2/1-year onsite NBD SLASMSAD3/2/1Bronze Level, 3/2/1-year 3BD SLA
PCIe Slot Configuration Options
Refer to User's ManualPCIe slot configuration options to enable PCIe slots 1-8
Power Supply
MCP-250-00025-0NSingle Power Supply Dummy Cover (W73.5mm) for 1U/2U Hyper ChassisPWS-1K24A-1R1U 800W/1200W Redundant Power Supply, 80 PLUS Titanium, W73.5xH40xL265mm, C14 inletPWS-1K63A-1R (included in the system)1U 1000W/1600W Redundant Power Supply, 80 PLUS Titanium, W73.5xH40xL265mm, C14 inletPWS-2K07A-1R1U 1000W/2000W Redundant Power Supply, 80 PLUS Titanium, W73.5xH40xL265mm, C14 inletPWS-2K63A-1R1U 2600W Redundant Power Supply, 80 PLUS Titanium, W73.5xH40xL265mm, C20 inlet
Rail Set
MCP-290-11901-0N141" ball-bearing rail set for Hyper serversMCP-290-11902-0N135.25" ball-bearing rail set for Hyper serversMCP-290-11903-0N (included in the system )130.5" ball-bearing rail set for Hyper servers
Software
SFT-DCMS-Single1DataCenter Management Package (per node license)
Trusted Platform Module Options
AOM-TPM-9672V-FIPS-O1AOM-TPM-9672V-FIPS TPM 2.0 support FIPSAOM-TPM-9672V-O1SPI capable vertical TPM 2.0
Warranty & Support
Please visit the link for more information about Supermicro products warranty.
Resources
Manuals
Click the button to download the latest manuals for this product.How's your experience?
Your feedback is incredibly important to us as we are committed to providing the best possible user experience.
Please don't hesitate to share your thoughts and suggestions with us. Together, we can make your future interactions even more rewarding.Submit Feedback
Please don't hesitate to share your thoughts and suggestions with us. Together, we can make your future interactions even more rewarding.Submit Feedback
