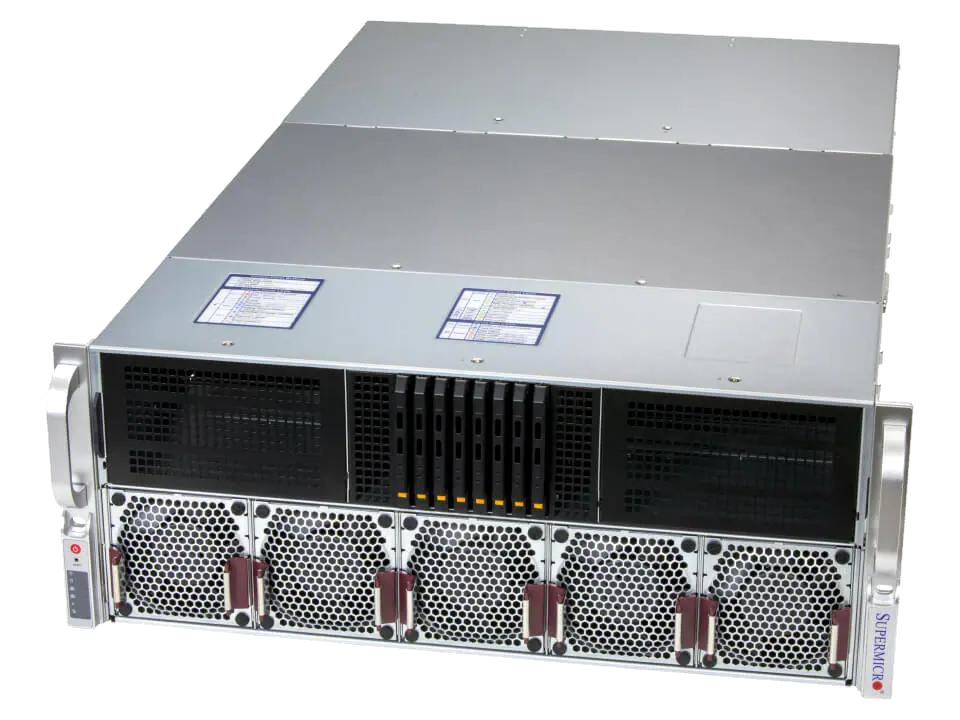

SupermicroSYS-422GA-NRT-01-G2
$109,179.20DP Intel 4U Dual-Root PCIe GPU System with up to 8 GPUs
SKU: SYS-422GA-NRT-01-G2
Features
Key Features
- CPU - Single 2x Intel Xeon 6960P (144 (2x 72)-Cores, 2.7GHz)
- GPU - 4x NVIDIA RTX PRO 6000 Server Edition
- Chassis - 4U
- Drive - 7.6TB (2x 3.8TB U.2 NVMe + 1x 960GB M.2 NVMe)
- RAM - 16x 64GB DDR5-6400
- Network Ports - 2-port 10GbE
Use Cases
High Performance Computing
VDI
AI/Deep Learning Training
Media/Video Streaming
Cloud Gaming
Animation and Modeling
Design & Visualization
3D Rendering
Diagnostic Imaging

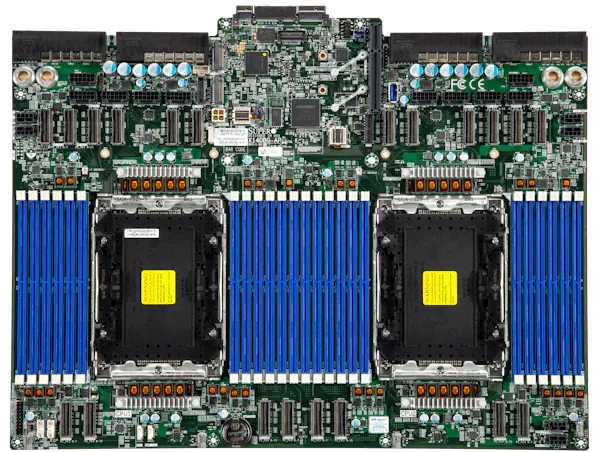

Motherboard
Super X14DBG-AP
System BIOS
GPU
System Memory
On-Board Devices
Input / Output
Management
Security
PC Health Monitoring
Processor
BIOS Type:
AMI 32MB SPI Flash EEPROM
Max GPU Count:
Up to 2 quad-width or 2 triple-width or 8 double-width or 10 single-width GPUs
Supported GPU:
NVIDIA PCIe: H200 NVL (141GB), NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition, NVIDIA RTX PRO™ 6000 Blackwell Server Edition
CPU-GPU Interconnect:
PCIe 5.0 x16 Switch Dual-Root
GPU-GPU Interconnect:
NVIDIA® NVLink™ Bridge (optional)
Memory:
Slot Count: 24 DIMM slots
Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM
Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM
Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM
Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM
Memory Voltage:
1.1V
Chipset:
System on Chip
Network Connectivity:
2x RJ45 10GbE with Intel® X710-AT2
LAN:
2x RJ45 10 GbE LAN ports (Intel® I350)
USB:
2x USB 3.0 Type-A ports(Rear)
Video:
1x VGA port
TPM:
1x TPM header
Software:
SuperCloud Composer®
Supermicro Server Manager (SSM)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Supermicro Server Manager (SSM)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Power Configurations:
Power-on mode for AC power recovery
ACPI Power Management
ACPI Power Management
Hardware:
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features:
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
CPU:
8+4 Phase-switching voltage regulator
Monitors for CPU Cores, Chipset Voltages, Memory
Monitors for CPU Cores, Chipset Voltages, Memory
Fan:
Fans with tachometer monitoring
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Thermal Control for fan connectors
CPU:
Dual Socket BR (LGA-7529); Intel® Xeon® 6900 series processors with P-cores
Cores:
Up to 128C/256T
Cache:
Up to 504MB Cache per CPU
Note:
Supports up to 500W TDP CPUs (Air Cooled)
Chassis
CSE-418G3TS-R6K40P
Expansion Slots
Drive Bays / Storage
System Cooling
Operating Environment
Power Supply
Dimensions
Environmental / Recycling

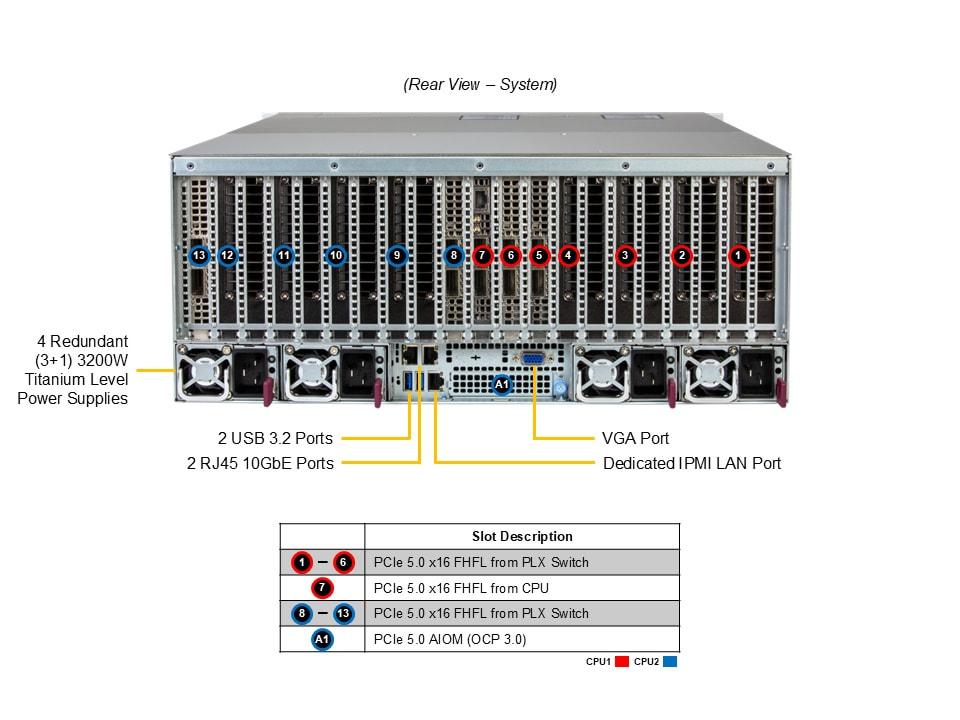

PCI-Express (PCIe) Configuration:
Default
13x PCIe 5.0 x16 FHFL slots
13x PCIe 5.0 x16 FHFL slots

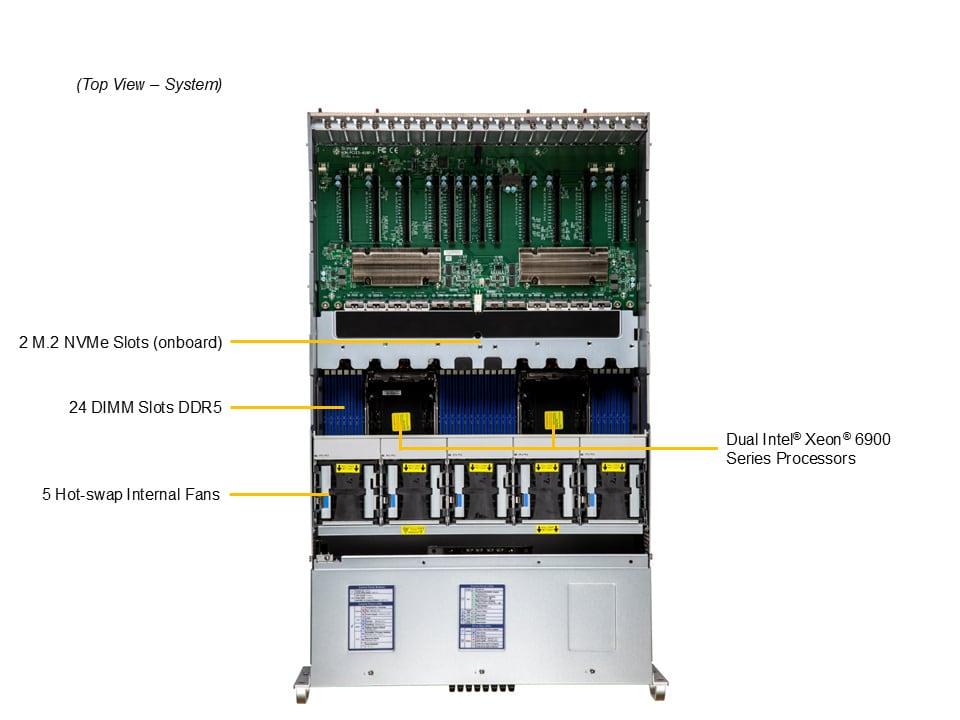

M.2:
2x M.2 PCIe 5.0 x4 NVMe slots (B+M-key)

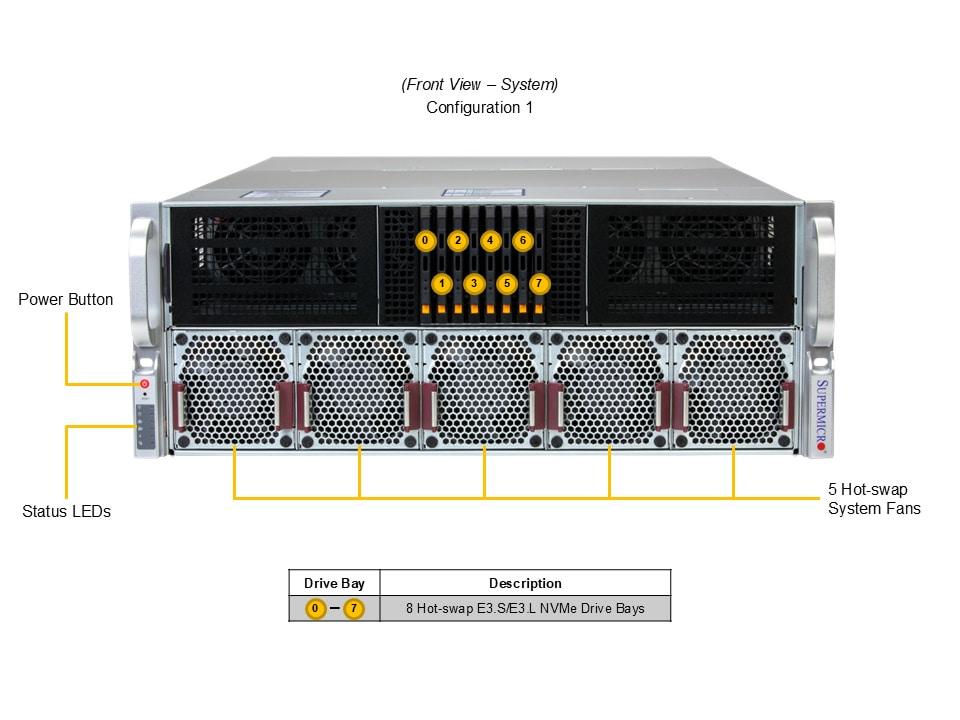

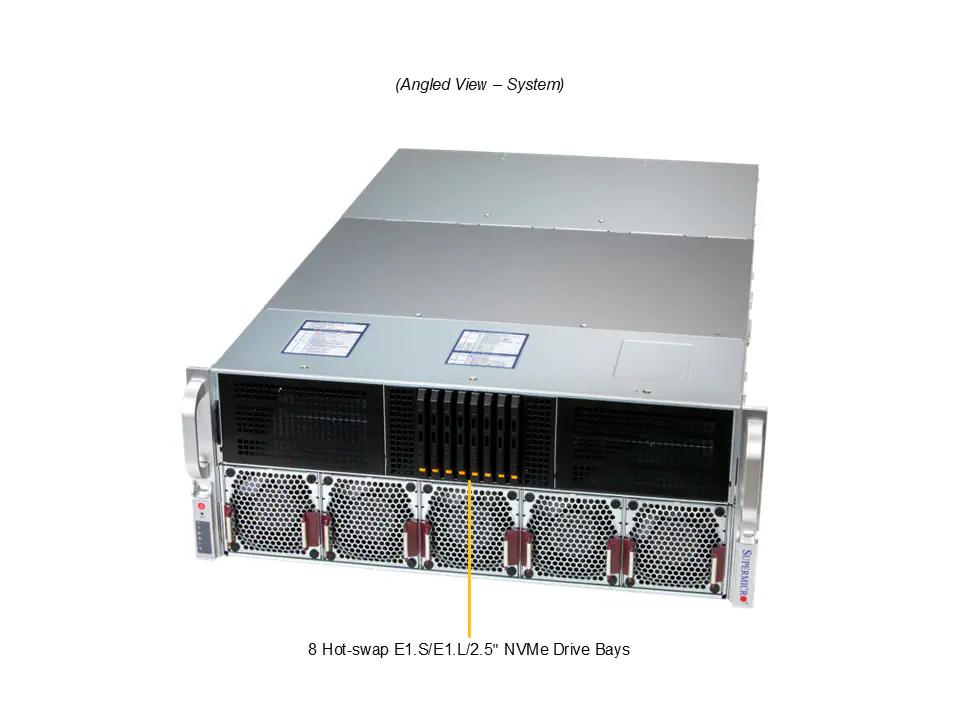

Drive Bays Configuration:
Option A: Total 8 bays
8x front hot-swap E3.S 1T PCIe 5.0 x4 NVMe drive bays
Option B: Total 8 bays
8x front hot-swap E3.L 1T PCIe 5.0 x4 NVMe drive bays
Option C: Total 8 bays
8x front hot-swap 2.5" PCIe 5.0 x4 NVMe drive bays
8x front hot-swap E3.S 1T PCIe 5.0 x4 NVMe drive bays
Option B: Total 8 bays
8x front hot-swap E3.L 1T PCIe 5.0 x4 NVMe drive bays
Option C: Total 8 bays
8x front hot-swap 2.5" PCIe 5.0 x4 NVMe drive bays
M.2:
2x M.2 NVMe slots (M-key)
Fans:
10x 8cm heavy duty fans with optimal fan speed control
Air Shroud:
1x Air Shroud
Environmental Spec.:
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Dimension (W x H x L):
73.5 x 40 x 203 mm
Input:
1400W: 100-127Vac / 50-60Hz 2900W: 200-207Vac / 50-60Hz 3000W: 207.1-219Vac / 50-60Hz 3200W: 219.1-240Vac / 50-60Hz 3200W: 240Vdc / 50-60Hz (for CQC only)
+12V:
Max: 116.6A / Min: 0A (100Vac-127Vac) Max: 241.6A / Min: 0A (200Vac-207Vac) Max: 250A / Min: 0A (207.1Vac-219Vac) Max: 266.6A / Min: 0A (219.1Vac-240Vac)
12V SB:
Max: 4A / Min: 0A
Output Type:
Backplanes (gold finger)
Description:
4x 3200W Redundant (3 + 1) Titanium Level (96%) power supplies
Model:
4x 3200W
Height:
7 in
Width:
17.2 in
Depth:
29 in
Package Height:
26.57 in
Package Width:
27 in
Package Depth:
41 in
Available Color:
Black Front & Silver Body
Form Factor:
4U Rackmount
Model:
CSE-418G3TS-R6K40P
Recycle:
Contact us at lifecycle@rackables.com for recycling options.
