SupermicroSYS-510D-4C-FN6P-02-G1
Out of stock

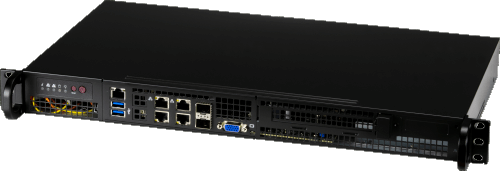

This 1U server, powered by a 4-core Intel® Xeon® D-1718T processor and 16GB of DDR4-3200 RDIMM memory, is tailored for network-centric applications. It's well-suited for retail deployments, firewall and gateway functions, as well as uCPE (Universal Customer Premises Equipment) solutions. Storage is handled by a fast 960GB M.2 NVMe drive, ensuring rapid data access. Network connectivity is robust, featuring four 1GbE RJ45 LAN ports for standard network connections and two 25GbE SFP28 ports for high-bandwidth fiber connections. With 24-hour shipping, this server provides rapid deployment for critical network infrastructure.
SKU: SYS-510D-4C-FN6P-02-G1
Features
Key Features
- CPU - Single Intel® Xeon® Processor D-1718T (4 Cores)
- Chassis - 1U / 1 Node
- Drive - 1x 960GB M.2 NVMe
- RAM - 1x 16GB DDR4-3200 RDIMM Memory
- Network Ports - 4x 1GbE RJ45 LAN Ports + 2x 25GbE SFP28 Ports
Use Cases
Retail Application
Firewall
Gateway
uCPE
Motherboard
Super X12SDV-4C-SP6F
System Memory
On-Board Devices
Input / Output
Management
Security
PC Health Monitoring
Processor
Memory:
Slot Count: 4 DIMM slots
Max Memory (2DPC): Up to 256GB 2933MT/s ECC DDR4 RDIMM
Max Memory (2DPC): Up to 256GB 2933MT/s ECC DDR4 RDIMM
Memory Voltage:
1.2V
Chipset:
Intel® SoC
Network Connectivity:
2x RJ45 1GBASE-T with Intel® I210
2x SFP28 25GbE with Intel® SoC
2x RJ45 1GBASE-T with Intel® I350-AM2
2x SFP28 25GbE with Intel® SoC
2x RJ45 1GBASE-T with Intel® I350-AM2
LAN:
1x RJ45 1 GbE Dedicated BMC LAN port
2x SFP28 25 GbE LAN ports (Intel® SOC)
2x RJ45 1 GbE LAN ports (Intel® I350-AM2)
2x RJ45 1 GbE LAN ports (Intel® I210-IT)
2x SFP28 25 GbE LAN ports (Intel® SOC)
2x RJ45 1 GbE LAN ports (Intel® I350-AM2)
2x RJ45 1 GbE LAN ports (Intel® I210-IT)
USB:
2x ports
Video:
1x VGA port
Software:
SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Power Configurations:
Power-on mode for AC power recovery
ACPI Power Management
ACPI Power Management
Hardware:
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features:
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
System Lockdown
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
System Lockdown
CPU:
Monitors for CPU Cores, Chipset Voltages, Memory
Fan:
Fans with tachometer monitoring
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Temperature:
CPU thermal trip support, PEPI Monitoring for CPU and chassis environment
CPU:
Single FCBGA-2227
Intel® Xeon® Processor D-1700 Series
Intel® Xeon® Processor D-1700 Series
Note:
Supports up to 46W TDP CPUs (Air Cooled)
Chassis
CSE-505-203B
Front Panel
Expansion Slots
Drive Bays / Storage
System Cooling
Operating Environment
Power Supply
Dimensions
Environmental / Recycling
Buttons:
Power On/Off button
System Reset button
System Reset button
LED:
Fan Fail/System Over Heat LED
HDD activity LED
Network Activity LEDs
Power status LED
HDD activity LED
Network Activity LEDs
Power status LED
PCI-Express (PCIe) Configuration:
Default
1x PCIe 4.0 x16 FHHL slot
1x PCIe 4.0 x16 FHHL slot
Drive Bays Configuration:
Default: Total 4 bays
4x internal fixed 2.5" SATA drive bays
4x internal fixed 2.5" SATA drive bays
M.2:
1x M.2 PCIe 3.0 x1 SATA slot (E-key 2230; USB 2.0)
1x M.2 PCIe 3.0 x2 SATA slot (B-key 2280/3042/3052; USB 3.0)
1x M.2 PCIe 3.0 x4 SATA slot (M-key 2280)
1x M.2 PCIe 3.0 x2 SATA slot (B-key 2280/3042/3052; USB 3.0)
1x M.2 PCIe 3.0 x4 SATA slot (M-key 2280)
Fans:
4x 4-PIN PWM 40x28mm Fan(s) (optional)
Air Shroud:
1x Air Shroud
Environmental Spec.:
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Dimension (W x H x L):

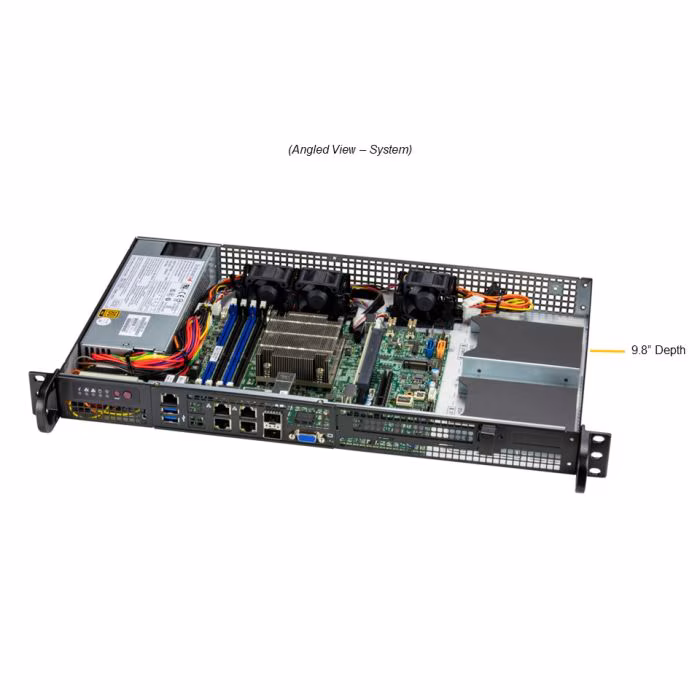

76x x 40.3 x 192 mm
Input:
200W: 100-240Vac 200W: 100-240Vac / 50-60Hz
+12V:
Max: 16A / Min: 0.1A (100Vac-240Vac)Max: 16A / Min: 0A (100Vac-240Vac)
Output Type:
20pin ATX
Certification:
Gold Level
Power Supply:

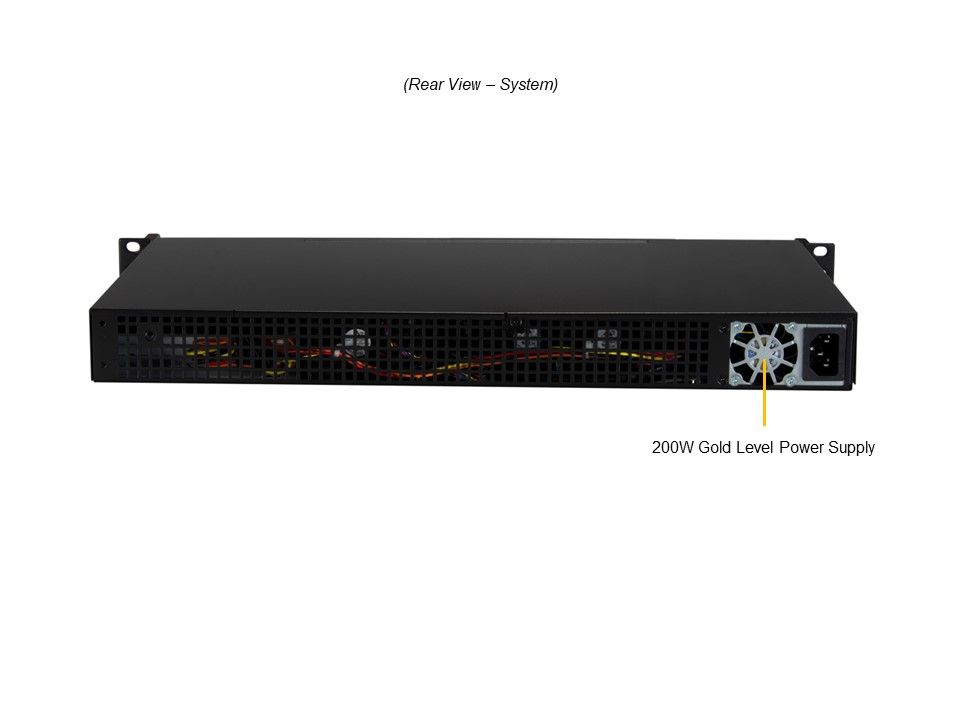

1x 200W Gold Level (91%) power supply
5V SB:
Max: 2A / Min: 0A
Height:
1.7 in
Width:
17.2 in
Depth:
9.8 in
Package Height:
6.1 in
Package Width:
25.8 in
Package Depth:
18.3 in
Gross Weight:
9.92 lb
Available Color:
Black
Form Factor:
Mini-1U
Model:
CSE-505-203B
Recycle:
Contact us at lifecycle@rackables.com for recycling options.
Part NumberQtyDescription
Motherboard / Chassis
MBD-X12SDV-4C-SP6F1Super X12SDV-4C-SP6F MotherboardCSE-505-203B1Mini-1U Chassis
Cable
CBL-SAST-053827pin SATA (STR to RA),29cm,PBFCBL-00871CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,50CMCBL-0260L1US POWER CORD 18 AWG, PBF
Fan
FAN-0065L434028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M
Drive Tray(s)
MCP-220-00051-0N2Single 2.5
Rear Window
MCP-240-00091-0N21U universal riser card bracket for standard chassis,HF,RoHS/REACH,PBF
Parts
MCP-260-00100-0B11U I/O ShieldMCP-260-00064-0B11U I/O shield for X9/X10 STD Server I/O use in SC510, SC505, SC504 with EMI Gasket,RoHS/REACH,PBFMCP-290-51001-0N1FHHL PCIe card retainer for SC510 chassis
Fan Holder
MCP-320-81302-0B3Optional fan tray for one 40x28mm fan in SC813T/SC813LT-single PWS (Fan tray only)
Manual
MNL-2530-QRG1510D-4C/8C/10C-FN6P Quick Reference Guide
Riser Card
RSC-S-6G411U LHS Standard riser card with one PCIe 4.0 x16 slot,HF,Ro
Power Supply
PWS-203-1H11U 200W Multi-output 80Plus Gold PWS
Front Panel
FPB-FP813-D1Front control board dual color for SC815,SC813M (C)
HDD Bracket
MCP-220-00044-0N -Dual 2.5" fixed HDD bracket for SC502, 503, 510, 512, 515U
Slimline to SATA cable
CBL-SAST-1256-100 -Slimline X4 (RE) to 4x SATA,INT,56/46/46/56CM,SB 56CM,1
Warranty & Support
Please visit the link for more information about Supermicro products warranty.
