SupermicroSYS-511E-WR-G1
Out of stock

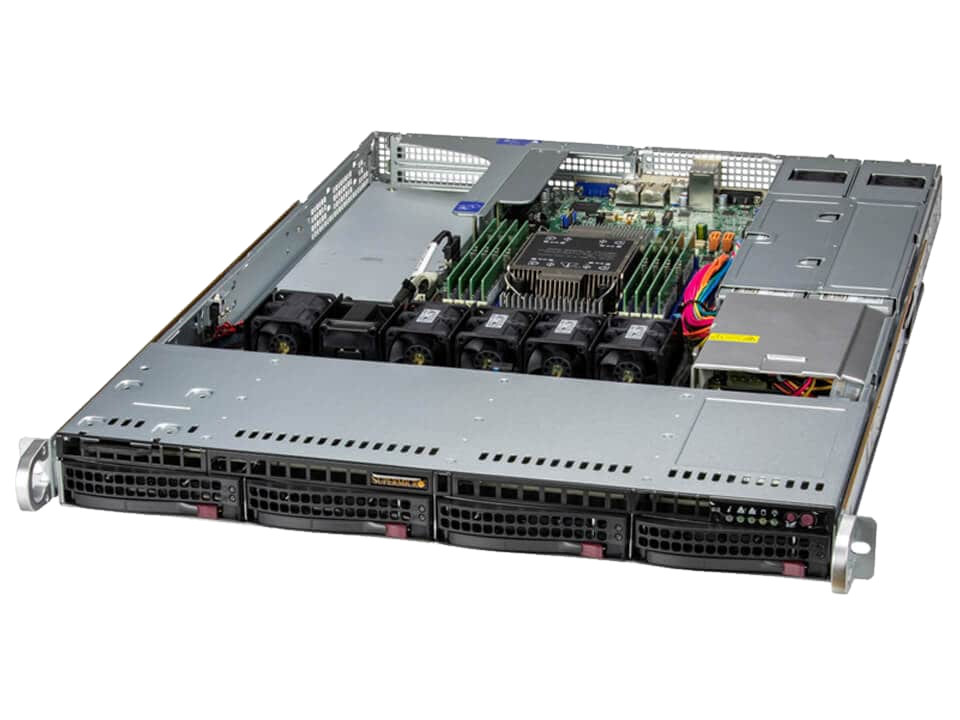

This 1U rack server, powered by a 12-core Intel® Xeon® 4510 processor, 64GB of DDR5-5600 RAM, and a 960GB NVMe drive, is a versatile and efficient solution for virtualization, cloud computing, and entry-level GPU workloads. Its data center-optimized design ensures reliable performance and scalability for demanding applications, while its value-oriented IaaS capabilities make it a cost-effective choice for businesses of all sizes. With dual 1GbE ports for network connectivity, this server provides a solid foundation for your IT infrastructure. Ready to ship within 24 hours, this server allows you to quickly deploy and manage your virtualized environments and cloud services.
SKU: SYS-511E-WR-G1
Features
Key Features
- CPU - Single Intel® Xeon® 4510 Processor (12-Cores)
- Chassis - 1U / 1 Node
- Drive - 1x 960GB M.2 NVMe
- RAM - 1x 64GB DDR5-5600 RDIMM Memory Slots
- Network Ports - 2x 1GbE RJ45 LAN Ports
Use Cases
Virtualization
Cloud Computing
Data Center Optimized
Entry GPU server
Value IaaS
Motherboard
Super X13SEW-F
System BIOS
GPU
System Memory
On-Board Devices
Input / Output
Management
Security
PC Health Monitoring
Processor
BIOS Type:
AMI 32MB SPI Flash EEPROM
Max GPU Count:
Up to 1 double-width or 2 single-width GPUs
Supported GPU:
NVIDIA PCIe: T400, RTX 4000 Ada Generation, RTX A4000, L4, A2, A10
CPU-GPU Interconnect:
PCIe 5.0 x16 CPU-to-GPU Interconnect
Memory:
Slot Count: 8 DIMM slots/8 Channels
Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
Memory Voltage:
1.1V
Chipset:
Intel® C741
Network Connectivity:
2x RJ45 1GbE with Intel® I210
SATA:
SATA (6Gbps) ; RAID 0/1/5/10 support
LAN:
2x RJ45 1 GbE LAN ports
1x RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1)
1x RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1)
USB:
2x USB 3.2 Gen1 Type-A ports(rear)
2x USB 2.0 Type-A ports(rear)
2x USB 3.2 Gen1 ports(Header)
1x USB 2.0 Type-A port(Header)
2x USB 2.0 Type-A ports(rear)
2x USB 3.2 Gen1 ports(Header)
1x USB 2.0 Type-A port(Header)
Video:
1x VGA port
TPM:
1x TPM header
Serial:
1x COM port(header)
1x COM port(rear)
1x COM port(rear)
Software:
SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Power Configurations:
ACPI/APM Power Management
Hardware:
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features:
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
CPU:
Monitors for CPU Cores, Chipset Voltages, Memory
8x Phase-switching voltage regulator
8x Phase-switching voltage regulator
Fan:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Thermal Control for fan connectors
CPU:
Single Socket E (LGA-4677)
5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Cores:
Up to 52C/104T; Up to 300MB Cache
Note:
Supports up to 300W TDP CPUs (Air Cooled)
Chassis
CSE-815BTS-R000WNP
Front Panel
Expansion Slots
Drive Bays / Storage
System Cooling
Operating Environment
Power Supply
Dimensions
Environmental / Recycling

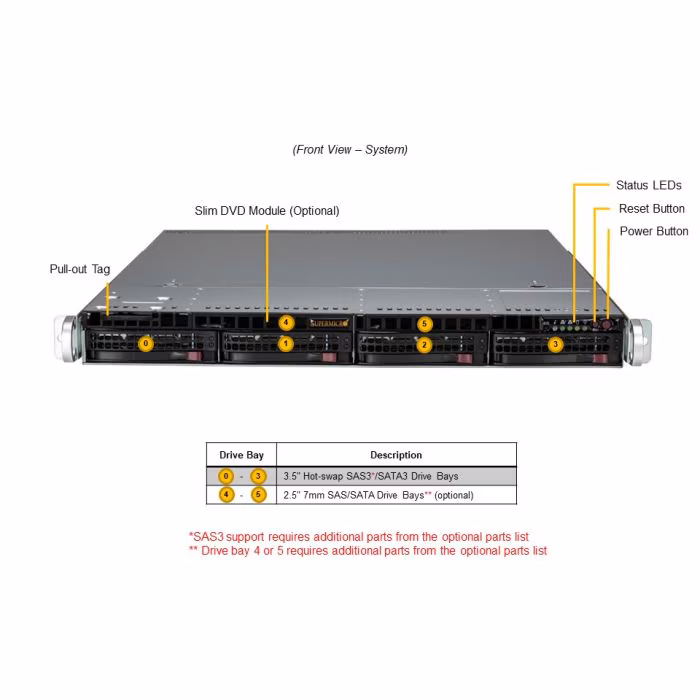

Buttons:
Power On/Off button
System Reset button
Unit Identification (UID) button
System Reset button
Unit Identification (UID) button
LED:
Fan Fail/System Over Heat LED
HDD activity LED
Network Activity LEDs
Power status LED
Unit Identification (UID) LED
HDD activity LED
Network Activity LEDs
Power status LED
Unit Identification (UID) LED

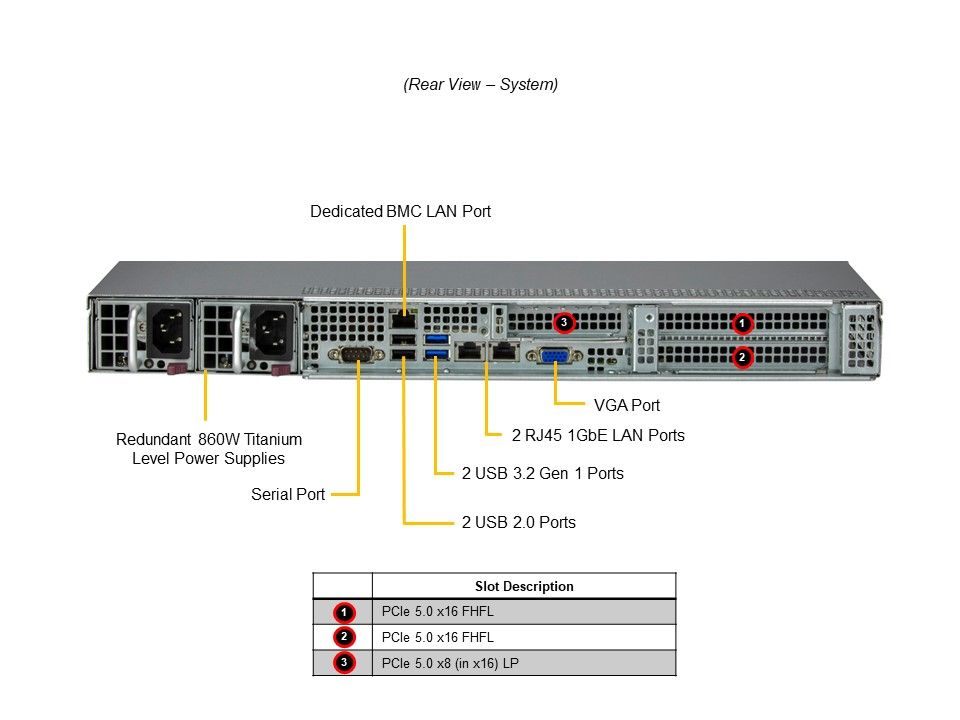

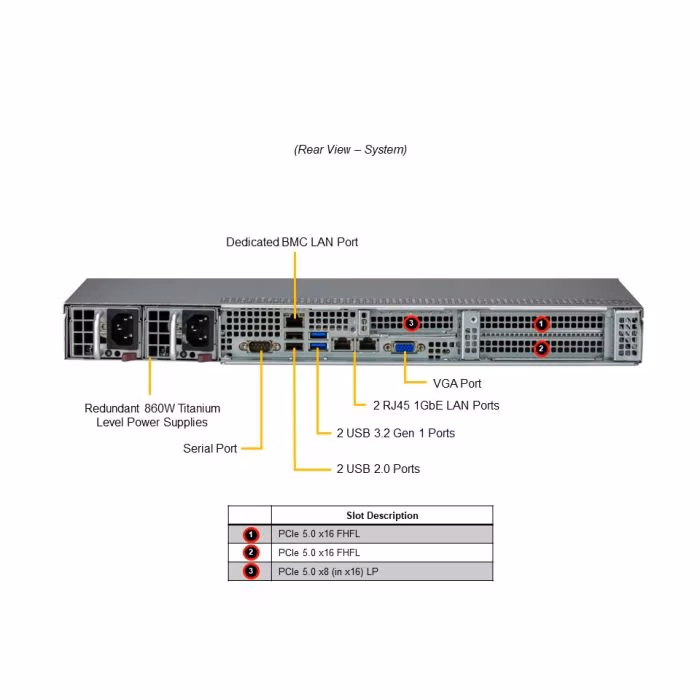

PCI-Express (PCIe) Configuration:
Default
2x PCIe 5.0 x16 FHFL slots
1x PCIe 5.0 x8 (in x16) LP slot
2x PCIe 5.0 x16 FHFL slots
1x PCIe 5.0 x8 (in x16) LP slot

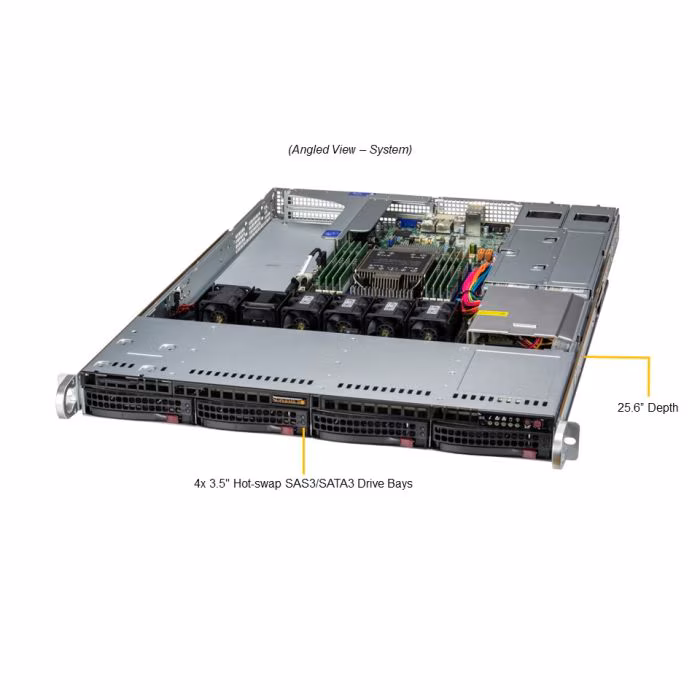

Drive Bays Configuration:
Default: Total 4 bays
4x front hot-swap 3.5" SAS*/SATA drive bays
(*SAS support may require additional storage controller and/or cables)
4x front hot-swap 3.5" SAS*/SATA drive bays
(*SAS support may require additional storage controller and/or cables)
M.2:
1x M.2 PCIe 3.0 x2 NVMe slot (M-key 2280/22110)
Peripheral Bays:
2x 2.5" peripheral bays (optional)
Fans:
5x middle cooling PWM 40x40x56mm Fan(s)
1x AOC cooling Fan(s) (optional)
1x AOC cooling Fan(s) (optional)
Air Shroud:
1x Air Shroud
Environmental Spec.:
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
Operating Relative Humidity: 8% to 80% (non-condensing)
Non-operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
Operating Relative Humidity: 8% to 80% (non-condensing)
Non-operating Relative Humidity: 8% to 90% (non-condensing)
Configuration:
2x 860W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (W x H x L):
54.5 x 40.25 x 322 mm
Input:
800W: 100-127Vac / 50-60Hz
860W: 200-240Vac / 50-60Hz
860W: 240Vdc / 50-60Hz
860W: 200-240Vac / 50-60Hz
860W: 240Vdc / 50-60Hz
+12V:
Max: 66.67A / Min: 0A (100Vac-127Vac)
Max: 71.67A / Min: 0A (200Vac-240Vac)
Max: 71.67A / Min: 0A (Vdc-240Vdc)
Max: 71.67A / Min: 0A (200Vac-240Vac)
Max: 71.67A / Min: 0A (Vdc-240Vdc)
Output Type:
Backplanes (gold finger)
5V SB:
Max: 4A / Min: 0A
Height:
1.7 in
Width:
17.2 in
Depth:
25.6 in
Package Height:
8.5 in
Package Width:
23.5 in
Package Depth:
33.7 in
Gross Weight:
34.39 lb
Net Weight:
21.61 lb
Available Color:
Black
Form Factor:
1U
Model:
CSE-815BTS-R000WNP
Recycle:
Contact us at lifecycle@rackables.com for recycling options.
Part NumberQtyDescription
Motherboard / Chassis
MBD-X13DEI-T1Super X13DEI-T MotherboardCSE-847BTS-R1K68LPBP514U Chassis
Add-on Card / Module
AOC-S3908L-H8IR-P18 int 12Gb/s ports, x8 Gen4, ROC- LP, 240 HDD w/exp,RoHSAOM-SAS3-8I8E-LP18-port Mini SAS HD Int-to-Ext Cable Adapter W/LP Bracket
Backplane
BPN-SAS3-826EL1-N4-112U 12-slot SAS3/SATA3 LFF Expander BPN, 4 of the 12-slots arBPN-SAS3-846EL1-N8-114U 24-Port LFF Expander Backplane support up to 16 SAS3/SATA
Cable
CBL-0296L29" 4 PIN FAN PWS EXTENSION CORD, PBFCBL-CDAT-072814 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1CBL-SAST-1281-1001Slimline x8 (STR) to 2x Slimline x4 (STR),80CM,100 OHM,CBL-SAST-1285-1002Slimline x4 (STR) to MiniSAS HD (STR) x4,85CM,100 OHM,RCBL-SAST-1286-1002Slimline x4 (STR) to Slimline x4 (STR),INT,85CM,100 OHM,CBL-0071L1ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LFCBL-0160L2US POWER CORD 16AWG, PB FREECBL-PWEX-10797PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,37CM,22AWG,5A/pin,RoHS
Parts
MCP-260-00042-3N1STD I/O shield for X13 server MB with venting holes
Software
SFT-OOB-LIC1License key for enabling OOB BIOS management
Heatsink / Retention
SNK-P0088AP412U Active CPU Heat Sink for X13 Gen. Building Block SolutionSNK-P0088P12U Passive CPU HS for X13 EGS and X14-SP BHS-SP Systems
Power Supply
PWS-1K68A-1R21U 1600W Redundant Titanium Power Supply 76mm width 27Pair,PBF
Power Distributor
PDB-PT847-H882414U support redundancy input powers and output over 2.6KW PDB
Fan
FAN-0166L4780x80x38 mm, 13.5K RPM, Optional Middle Cooling Fan for 2U Ultra Series Servers (Hot-swappable Version of FAN-0162L4)
Front Panel
FPB-TB826-T1Chassis transfer board for SC826
Drive Tray(s)
MCP-220-00075-0B36Black gen 5.5 hot-swap 3.5" HDD trayMCP-220-84708-ASM1SC847B LP MB Tray assembly,HF,RoHS/REACH
Rail Set
MCP-290-00057-0N1 setRail set, quick/quick, default for 4U 17.2" WMCP-410-00007-0N1Rail screw bag
Air Shroud
MCP-310-49004-0N1SC847/417 DP X9 universal PC air shroud 1368x13/12x13MB
