SupermicroSYS-521C-NR-G1
Out of stock
This high-performance 1U server is optimized for demanding workloads including virtualization, CDN deployments, edge computing, data centers, HPC, cloud computing, and storage headnode applications. Powered by a single 12-core Intel® Xeon® 4510 processor and equipped with 128GB of DDR5-5600 RDIMM memory across two slots, this system delivers exceptional processing power and memory bandwidth. Storage needs are met with a fast 960GB M.2 NVMe drive, ensuring rapid data access. Network connectivity is provided by two 10GbE RJ45 LAN ports via AIOM. Designed for rapid deployment, this server ships within 24 hours.
SKU: SYS-521C-NR-G1
Features
Key Features
- CPU - Single Intel® Xeon® 4510 Processor (12-Cores)
- Chassis - 2U / 1 Node
- Drive - 2x 960GB M.2 NVMe
- RAM - 2x 64GB DDR5-5600 RDIMM Memory Slots
- Network Ports - 2x 10GbE RJ45 LAN Ports via AIOM
Use Cases
Cloud Computing
Data Center Optimized
Network Appliance
AI inferencing, ML training
Database/Storage
Motherboard
Super X13SEDW-F
System BIOS
GPU
System Memory
On-Board Devices
Input / Output
Management
Security
PC Health Monitoring
Processor
BIOS Type:
AMI 32MB SPI Flash EEPROM
Max GPU Count:
Up to 2 double-width or 4 single-width GPUs
Supported GPU:
NVIDIA PCIe: H100, H100 NVL, A16, A30, A40, L4, L40S, RTX 6000 Ada Generation, RTX A2000, A2, RTX A6000, T1000, L40, RTX 4000 Ada Generation, RTX 4000 SFF Ada Generation, RTX 2000 Ada, RTX 4500 Ada, RTX A4000
CPU-GPU Interconnect:
PCIe 5.0 x16 CPU-to-GPU Interconnect
Memory:
Slot Count: 16 DIMM slots/8 Channels
Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 4TB 4400MT/s ECC DDR5 RDIMM
Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 4TB 4400MT/s ECC DDR5 RDIMM
Memory Voltage:
1.1V
NVMe:
NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)
Chipset:
Intel® C741
Network Connectivity:
Via AIOM
SATA:
SATA (6Gbps) ; RAID 0/1/5/10 support
LAN:
1x RJ45 1 GbE Dedicated BMC LAN port
USB:
2x USB 2.0 ports(header)
2x USB 3.2 Gen1 Type-A ports(rear)
2x USB 3.2 Gen1 Type-A ports(rear)
Video:
1x VGA port
TPM:
1x TPM header
Serial:
1x COM port(rear)
Software:
SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Power Configurations:
ACPI/APM Power Management
Hardware:
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features:
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
CPU:
Monitors for CPU Cores, Chipset Voltages, Memory
8x Phase-switching voltage regulator
8x Phase-switching voltage regulator
Fan:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Thermal Control for fan connectors
CPU:
Single Socket E (LGA-4677)
5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Cores:
Up to 64C/128T; Up to 320MB Cache
Note:
Supports up to 350W TDP CPUs (Air Cooled)
Chassis
Front Panel
Expansion Slots
Drive Bays / Storage
System Cooling
Operating Environment
Power Supply
Dimensions
Environmental / Recycling
Buttons:
Power On/Off
Universal Information (UID)
Universal Information (UID)
LED:
Drive activity
Network activity
Power status
Universal Information (UID)
Network activity
Power status
Universal Information (UID)

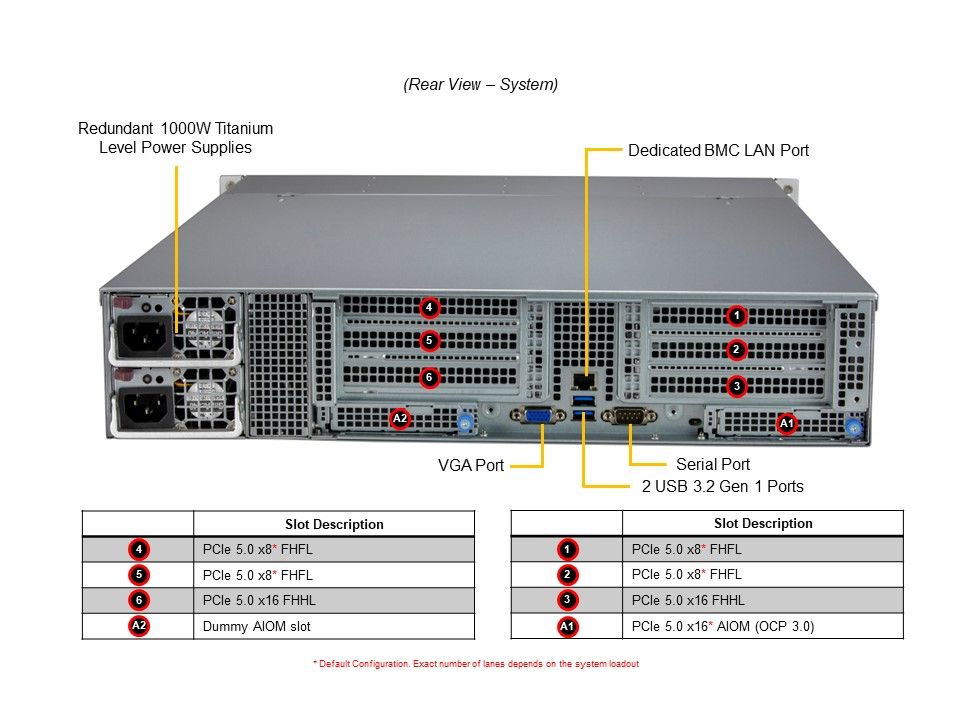

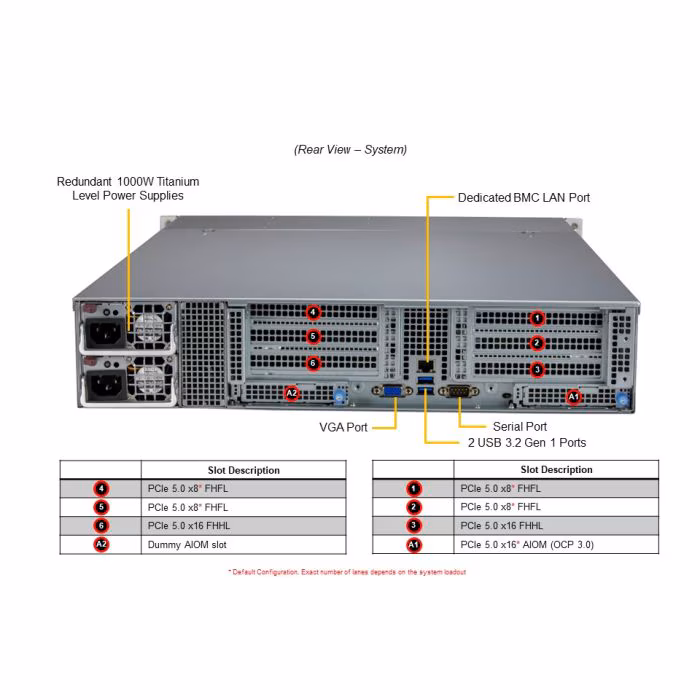

PCI-Express (PCIe) Configuration:
Default
4x PCIe 5.0 x8 FHFL slots
2x PCIe 5.0 x16 FHHL slots
1x PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option A
1x PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible)
Option B
2x PCIe 5.0 x16 FHFL double-width slots
4x PCIe 5.0 x8 FHFL slots
2x PCIe 5.0 x16 FHHL slots
1x PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option A
1x PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible)
Option B
2x PCIe 5.0 x16 FHFL double-width slots

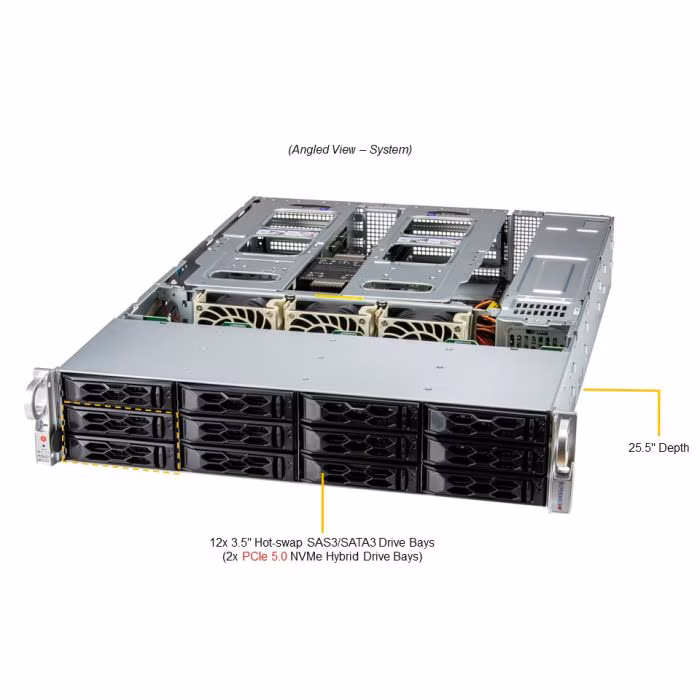

Drive Bays Configuration:
Default: Total 12 bays
12x front hot-swap 3.5" SAS*/SATA drive bays
Option A: Total 12 bays
2x front hot-swap 3.5" PCIe 5.0 x4 NVMe*/SAS*/SATA drive bays
10x front hot-swap 3.5" SAS*/SATA drive bays
(*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
12x front hot-swap 3.5" SAS*/SATA drive bays
Option A: Total 12 bays
2x front hot-swap 3.5" PCIe 5.0 x4 NVMe*/SAS*/SATA drive bays
10x front hot-swap 3.5" SAS*/SATA drive bays
(*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2:
2x M.2 PCIe 3.0 x2 NVMe slots (M-key 2280/22110)

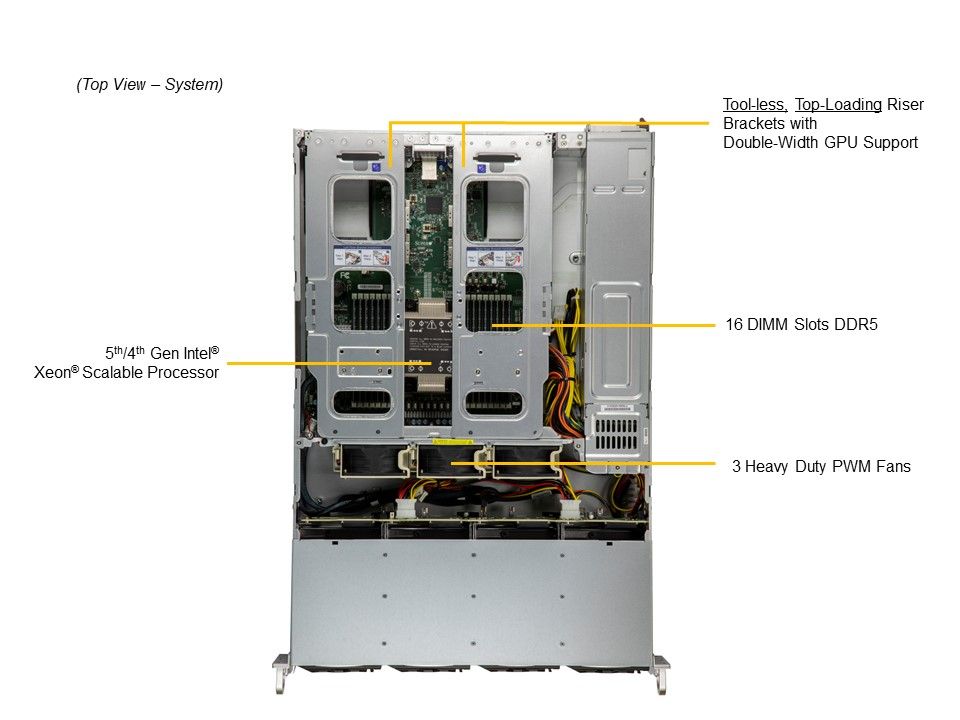

Fans:
3x heavy duty PWM 80x80x38mm Fan(s)
Air Shroud:
1x Air Shroud
Environmental Spec.:
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
Operating Relative Humidity: 8% to 80% (non-condensing)
Non-operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
Operating Relative Humidity: 8% to 80% (non-condensing)
Non-operating Relative Humidity: 8% to 90% (non-condensing)
Configuration:
2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (W x H x L):
76x x 40 x 336 mm
Input:
1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 200-240Vdc / 50-60Hz (for CCC only)
1000W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V:
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vdc-240Vdc)
Max: 100A / Min: 0A (200Vac-240Vac)
Max: 100A / Min: 0A (200Vdc-240Vdc)
Max: 100A / Min: 0A (200Vac-240Vac)
Output Type:
Backplanes (gold finger)
5V SB:
Max: 4A / Min: 0A
Height:
3.5 in
Width:
17.2 in
Depth:
25.5 in
Gross Weight:
59.08 lb
Net Weight:
33.07 lb
Available Color:
Black front & sliver body
Recycle:
Contact us at lifecycle@rackables.com for recycling options.
Part NumberQtyDescription
Motherboard / Chassis
MBD-X13DEI-T1Super X13DEI-T MotherboardCSE-847BTS-R1K68LPBP514U Chassis
Add-on Card / Module
AOC-S3908L-H8IR-P18 int 12Gb/s ports, x8 Gen4, ROC- LP, 240 HDD w/exp,RoHSAOM-SAS3-8I8E-LP18-port Mini SAS HD Int-to-Ext Cable Adapter W/LP Bracket
Backplane
BPN-SAS3-826EL1-N4-112U 12-slot SAS3/SATA3 LFF Expander BPN, 4 of the 12-slots arBPN-SAS3-846EL1-N8-114U 24-Port LFF Expander Backplane support up to 16 SAS3/SATA
Cable
CBL-0296L29" 4 PIN FAN PWS EXTENSION CORD, PBFCBL-CDAT-072814 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1CBL-SAST-1281-1001Slimline x8 (STR) to 2x Slimline x4 (STR),80CM,100 OHM,CBL-SAST-1285-1002Slimline x4 (STR) to MiniSAS HD (STR) x4,85CM,100 OHM,RCBL-SAST-1286-1002Slimline x4 (STR) to Slimline x4 (STR),INT,85CM,100 OHM,CBL-0071L1ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LFCBL-0160L2US POWER CORD 16AWG, PB FREECBL-PWEX-10797PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,37CM,22AWG,5A/pin,RoHS
Parts
MCP-260-00042-3N1STD I/O shield for X13 server MB with venting holes
Software
SFT-OOB-LIC1License key for enabling OOB BIOS management
Heatsink / Retention
SNK-P0088AP412U Active CPU Heat Sink for X13 Gen. Building Block SolutionSNK-P0088P12U Passive CPU HS for X13 EGS and X14-SP BHS-SP Systems
Power Supply
PWS-1K68A-1R21U 1600W Redundant Titanium Power Supply 76mm width 27Pair,PBF
Power Distributor
PDB-PT847-H882414U support redundancy input powers and output over 2.6KW PDB
Fan
FAN-0166L4780x80x38 mm, 13.5K RPM, Optional Middle Cooling Fan for 2U Ultra Series Servers (Hot-swappable Version of FAN-0162L4)
Front Panel
FPB-TB826-T1Chassis transfer board for SC826
Drive Tray(s)
MCP-220-00075-0B36Black gen 5.5 hot-swap 3.5" HDD trayMCP-220-84708-ASM1SC847B LP MB Tray assembly,HF,RoHS/REACH
Rail Set
MCP-290-00057-0N1 setRail set, quick/quick, default for 4U 17.2" WMCP-410-00007-0N1Rail screw bag
Air Shroud
MCP-310-49004-0N1SC847/417 DP X9 universal PC air shroud 1368x13/12x13MB
Cable - for NVMe in main drive bay
CBL-MCIO-1260M5 3MCIO (x8 STR to x8 STR),60CM,30AWG,85OHM,RoHS
Cable Management Arm
MCP-120-82503-0N 1Cable Arm AdapterMCP-290-00073-0N 1Supermicro Cable Management Arm
Converter Tray
MCP-220-00043-0N12.5" HDD TRAY IN 4TH GENERATION 3.5" HOT SWAP TRAY
Converter Tray - orange NVMe tab
MCP-220-00138-0B1Black gen-5.5 tool-less NVMe 3.5-to-2.5 drive tray, Orange tab
Network Cards
AOC-S25G-b2S-O1Std LP 2-port 25G SFP28, Broadcom BCM57414AOC-S25G-i2S-O1Std. Low Profile 25G dual port SFP28, based on Intel XXV710AOC-S25G-m2S-O1Std LP 2-port 25G SFP28, Mellanox ConnectX-4 LX ENAOC-STG-b2T-O 1Standard LP 2-port 10Gbase-T, Broadcom 57416,HF,RoHSAOC-STGS-I2T-O 1Std LP 2-port 10G RJ45, Intel X550
Power Cord
CBL-PWCD-05791Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250VCBL-PWCD-0579-11Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250VCBL-PWCD-0300-IS1PWCD,US,IEC60320 C14 TO C13,6FT,18AWG,RoHS/REACH
Supercap
BTR-CVPM05 1Cachevault supercap for storage controllerMCP-240-00203-0N 1PCIe plastic battery holder with FH/LP-bracket
TPM
AOM-TPM-9670V-O 1TPM 2.0, vertical form factor, provisioned for server
VROC
AOC-VROCSTNMOD 1Intel VROC HW key (RSTe) standard upgrade module,HF,RoHSAOC-VROCPREMOD 1Intel VROC Premium, RAID0,1,5,10,HF,RoHS
Warranty & Support
Please visit the link for more information about Supermicro products warranty.
