SupermicroSYS-821GE-TNHR-G1
Out of stock
Unleash the power of AI and high-performance computing with this cutting-edge server, purpose-built for demanding workloads. Featuring dual Intel Xeon Platinum 8570 processors with 56 cores each, 32 DDR5-5600 RDIMM memory modules, and 8 NVIDIA HGX H200 SXM5 GPUs, this 8U server delivers unparalleled performance for AI/Deep Learning training, Conversational AI, Business Intelligence & Analytics, Industrial Automation, and High-Performance Computing. The server also boasts lightning-fast storage with 2 960GB M.2 NVMe drives and high-bandwidth networking with 8 400GbE OSFP, 2 200GbE QSFP112, and 2 10GbE RJ45 LAN ports. Ready to ship within 24 hours, this server empowers you to accelerate your innovation and drive groundbreaking results.
SKU: SYS-821GE-TNHR-G1
Features
Key Features
- CPU - Dual Intel® Xeon® Platinum 8570 Processors (56-Cores)
- GPU - 8x NVIDIA HGX H200 SXM5
- Chassis - 8U / 1 Node
- Drive - 2x 960GB M.2 NVMe
- RAM - 32x 64GB DDR5-5600 RDIMM Memory
- Network Ports - 8x 400GbE OSFP + 2x 200GbE QSFP112 + 2x 10GbE RJ45 LAN Ports
Use Cases
High Performance Computing
AI/Deep Learning Training
Industrial Automation, Retail
Healthcare
Conversational AI
Business Intelligence & Analytics
Drug Discovery
Climate and Weather Modeling
Finance & Economics
Motherboard
Super X13DEG-OAD
System BIOS
GPU
System Memory
On-Board Devices
Input / Output
Management
Security
PC Health Monitoring
Processor
BIOS Type:
AMI 32MB SPI Flash EEPROM
Max GPU Count:
8x onboard GPUs
Supported GPU:
NVIDIA SXM: HGX H100 8-GPU (80GB), HGX H200 8-GPU (141GB)
CPU-GPU Interconnect:
PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect:
NVIDIA® NVLink® with NVSwitch™

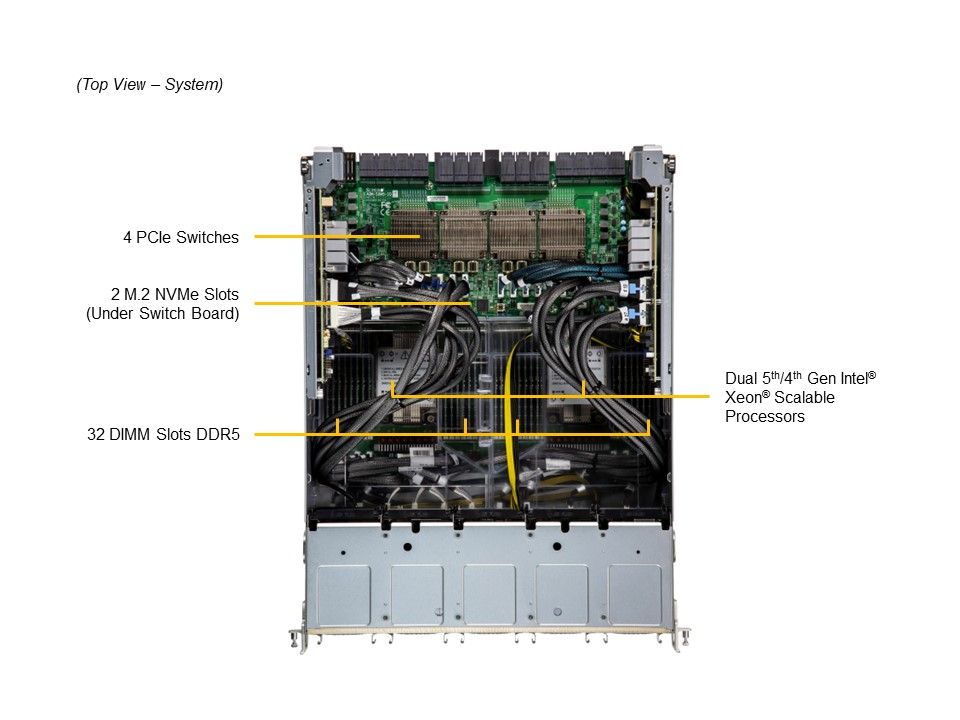

Memory:
Slot Count: 32 DIMM slots
Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM
Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM
Memory Voltage:
1.1V
Chipset:
Intel® C741
Network Connectivity:
2x RJ45 10GbE with Intel® X550-AT2 (optional)
2x SFP28 25GbE with Broadcom® BCM57414 (optional)
2x RJ45 10GbE with Intel® X710-AT2 (optional)
2x SFP28 25GbE with Broadcom® BCM57414 (optional)
2x RJ45 10GbE with Intel® X710-AT2 (optional)
Video:
1x VGA port
Software:
SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Power Configurations:
Power-on mode for AC power recovery
ACPI Power Management
ACPI Power Management
Hardware:
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features:
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
CPU:
Monitors for CPU Cores, Chipset Voltages, Memory
8+4 Phase-switching voltage regulator
8+4 Phase-switching voltage regulator
Fan:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Thermal Control for fan connectors
CPU:
Dual Socket E (LGA-4677)
5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Cores:
Up to 64C/128T; Up to 320MB Cache per CPU
Note:
Supports up to 350W TDP CPUs (Air Cooled)
Chassis
CSE-GP801TS
Front Panel
Expansion Slots
Drive Bays / Storage
System Cooling
Operating Environment
Power Supply
Dimensions
Environmental / Recycling
Buttons:
Power On/Off button
System Reset button
System Reset button
LED:
Hard drive activity LED
Network activity LEDs
Power status LED
System Overheat & Power Fail LED
Network activity LEDs
Power status LED
System Overheat & Power Fail LED

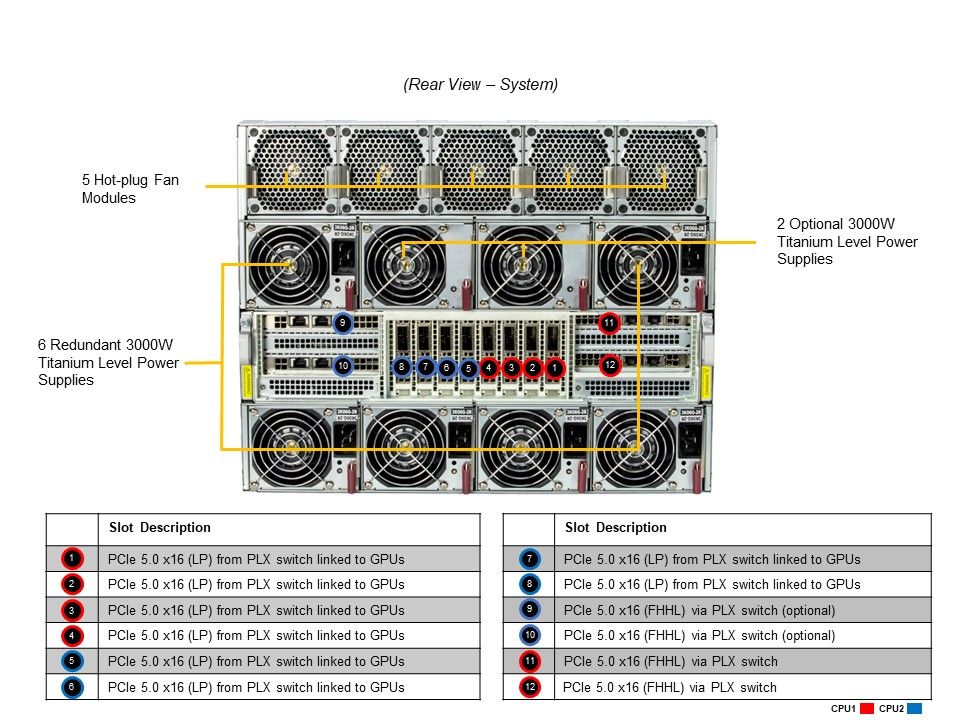

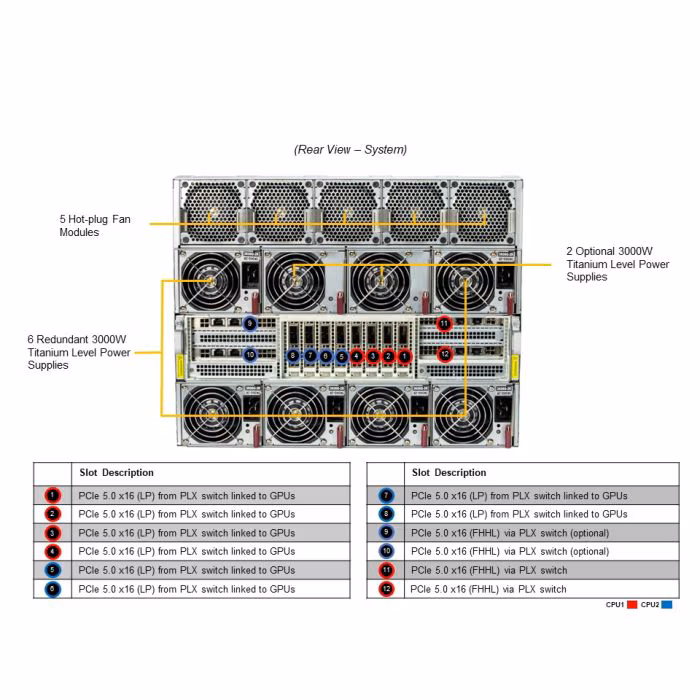

PCI-Express (PCIe) Configuration:
Default
8x PCIe 5.0 x16 LP slots
2x PCIe 5.0 x16 FHHL slots
Option A
8x PCIe 5.0 x16 LP slots
2x PCIe 5.0 x16 FHHL slots
Option A

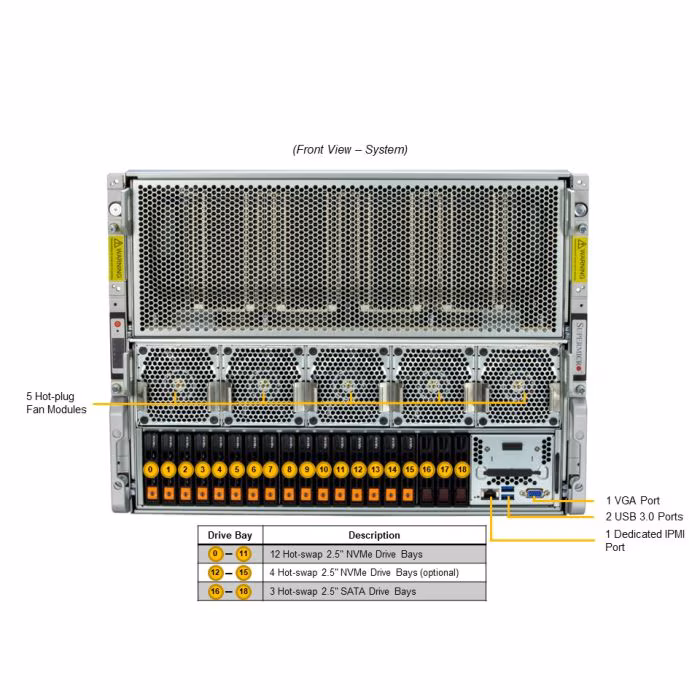

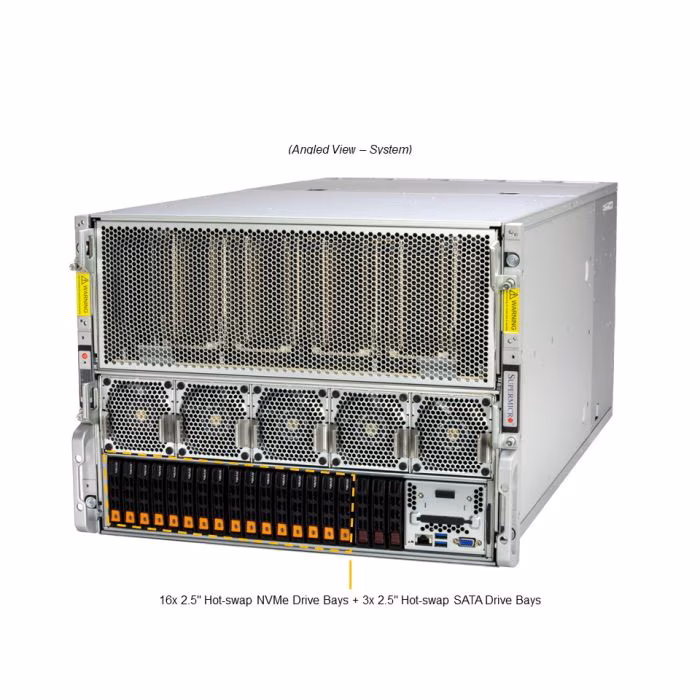

Drive Bays Configuration:
Default: Total 15 bays
12x front hot-swap 2.5" NVMe drive bays
3x front hot-swap 2.5" SATA drive bays
Option A: Total 19 bays
4x front hot-swap 2.5" NVMe* drive bays
(*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
12x front hot-swap 2.5" NVMe drive bays
3x front hot-swap 2.5" SATA drive bays
Option A: Total 19 bays
4x front hot-swap 2.5" NVMe* drive bays
(*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2:
2x M.2 NVMe slots (M-key)
Fans:
10x heavy duty fans with optimal fan speed control
Environmental Spec.:
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Configuration:
6x 3000W Redundant (3 + 3) Titanium Level (96%) power supplies
Dimension (W x H x L):
106.5 x 82.1 x 245.5 mm
Input:
3000W: 0240Vdc / 50-60Hz (for CQC only) 2880W: 200-207Vac / 50-60Hz 3000W: 207-240Vac / 50-60Hz 3000W:
+12V:
Max: 91.66A / Min: 0A (200Vac-240Vac)
12V SB:
Max: 3A / Min: 0A
Output Type:
Backplanes (gold finger)
Height:
14 in
Width:
17.2 in
Depth:
33.2 in
Package Height:
29.5 in
Package Width:
27.5 in
Package Depth:
51.2 in
Gross Weight:
225.09 lb
Net Weight:
166.01 lb
Available Color:
Black front & silver body
Form Factor:
8U Rackmount
Model:
CSE-GP801TS
Recycle:
Contact us at lifecycle@rackables.com for recycling options.
Part NumberQtyDescription
8x Power Supply optional parts
PWS-3K06G-2R 2AC-DC 3000W, Titanium efficiency, DC output: 54Vdc/45A
8x SATA optional sets
CBL-GNZ2-1221MTS41GenZ 2C+2 mount holes to SlimSAS x8,21cm,31AWG,RoHSMCP-220-00147-0B 5Black gen-3 hot-swap 2.5" Tool-less HDD tray (clip design)
Side expension sets
AOM-DP801-PCIE-P1NIC Riser board(After Mid-Plane) for Delta-Next GPU System,RoHSAOM-DP801-SW-P1NIC adaptor board with PLX switch for Delta-Next GPU system,RoHSCBL-MCIO-1342LFM5B4-E12 pre-bundled MCIO x8 (LF/STR to STR), 42Y/41W cm, 32 AWG, RoHSCBL-MCIO-1348LFM5B3-E12 pre-bundled MCIO x8 (LF/STR to STR), 48B/44W cm, 32 AWG, RoHSCBL-PWEX-1142B-40 1MicroHi(2x4 to 2x4), PH3.0, 40cm, 8.5A/p, 18AWG, RoHS
