SupermicroSYS-822GS-NB3RT-01-G2
Out of stock

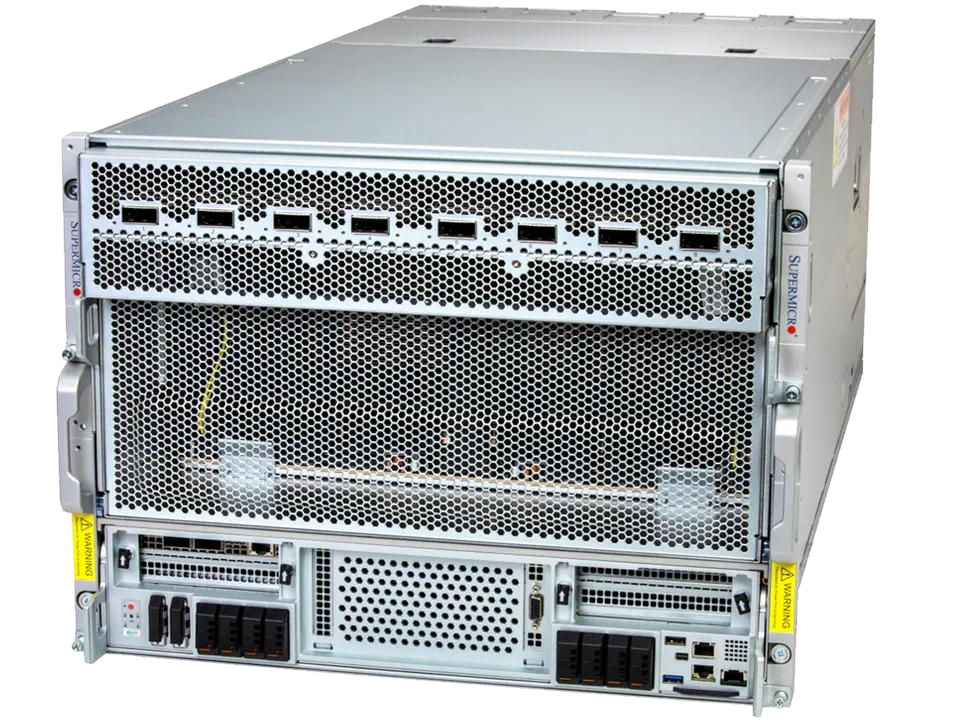

DP Intel 8U System with NVIDIA HGX B300 8-GPU
SKU: SYS-822GS-NB3RT-01-G2
Features
Key Features
- CPU - Single 2x Intel Xeon 6768P (128 (2x 64)-Cores, 2.4GHz)
- GPU - NVIDIA Blackwell HGX B300 8-GPU
- Chassis - 8U
- Drive - 960GB (1x 960GB M.2 NVMe)
- RAM - 16x 128GB DDR5-6400
- Network Ports - 8-port 800GbE/XDR800
Use Cases
Scientific Research
Conversational AI
Business Intelligence & Analytics
Drug Discovery
Finance Services and Fraud Detection
AI/Deep Learning Training and Inference
Large Language Model (LLM) and Generative AI
High Performance Computing (HPC)
Autonomous Vehicle Technologies

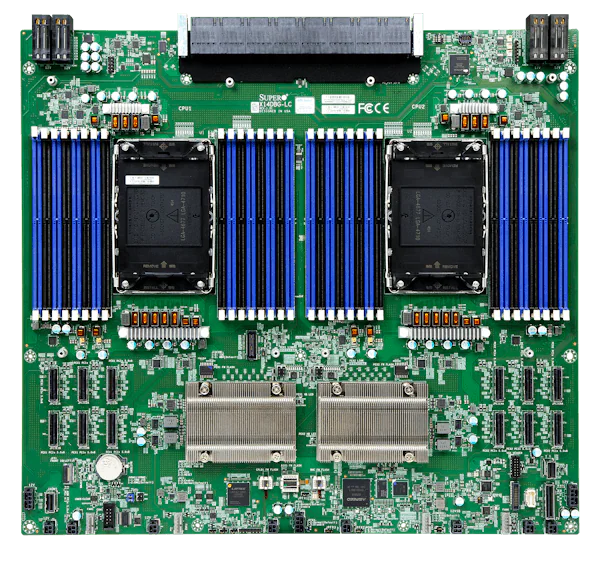

Motherboard
Super X14DBG-LC
System BIOS
GPU
System Memory
On-Board Devices
Input / Output
Management
Security
PC Health Monitoring
Processor
BIOS Type:
AMI 64MB UEFI
Max GPU Count:
8x onboard GPUs
Supported GPU:
NVIDIA SXM: HGX B300 8-GPU (288GB)
GPU-GPU Interconnect:
NVIDIA® NVLink™ with NVSwitch™
Memory:

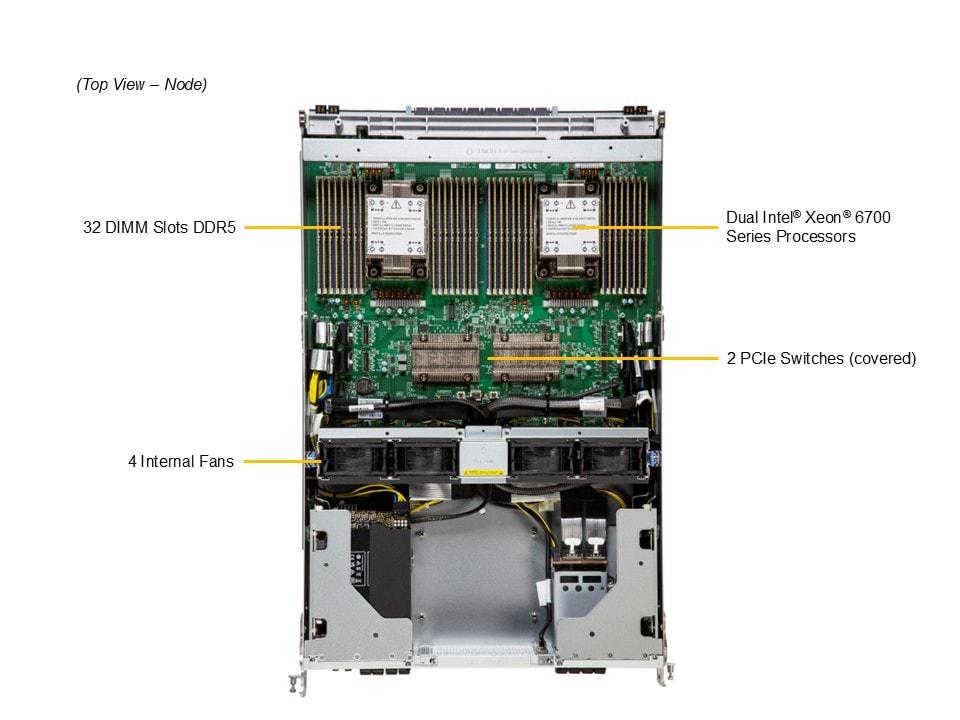

Slot Count: 32 DIMM slots
Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 8TB 5200MT/s ECC DDR5 RDIMM
Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 8TB 5200MT/s ECC DDR5 RDIMM
Memory Voltage:
1.1V
Chipset:
System on Chip
Network Connectivity:
8x OSFP 800GbE
2x RJ45 10GbE
2x RJ45 10GbE
LAN:
8x OSFP 800 GbE LAN ports (NVIDIA ConnectX®-8 SuperNIC)
2x RJ45 10 GbE LAN ports (Intel® X710)
2x RJ45 10 GbE LAN ports (Intel® X710)
USB:
1x USB 3.0 Type-A port(Front)
1x USB 2.0 Type-A port(Front)
1x USB 2.0 Type-A port(Front)
Video:
1x VGA port
1x mini-DP port
1x mini-DP port
Software:
SuperCloud Composer®
Supermicro Server Manager (SSM)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Supermicro Server Manager (SSM)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Power Configurations:
Power-on mode for AC power recovery
ACPI Power Management
ACPI Power Management
Hardware:
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) 64 NIST 800-193 Compliant
Silicon Root of Trust (RoT) 64 NIST 800-193 Compliant
Features:
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
CPU:
8+4 Phase-switching voltage regulator
Monitors for CPU Cores, Chipset Voltages, Memory
Monitors for CPU Cores, Chipset Voltages, Memory
Fan:
Fans with tachometer monitoring
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Thermal Control for fan connectors
CPU:
Dual Socket E2 (LGA-4710); Intel® Xeon® 6700-series processors with P-cores
Cores:
Up to 86C/172T
Cache:
Up to 336MB Cache per CPU
Note:
Supports up to 350W TDP CPUs (Air Cooled)
Chassis
CSE-GP807TS-R000NP
Front Panel
Expansion Slots
Drive Bays / Storage
System Cooling
Operating Environment
Power Supply
Dimensions
Environmental / Recycling
Buttons:
Power On/Off
UID
UID
LED:
HDD activity
LAN1 activity
LAN2 activity
Power Fail
Power status
System information (overheat/UID)
LAN1 activity
LAN2 activity
Power Fail
Power status
System information (overheat/UID)

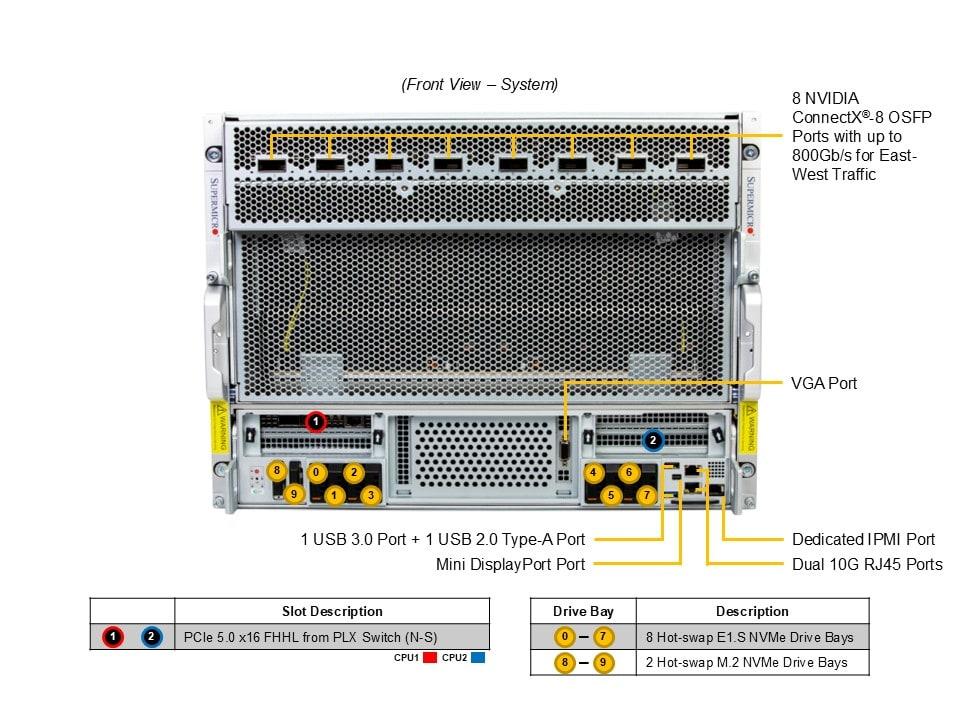

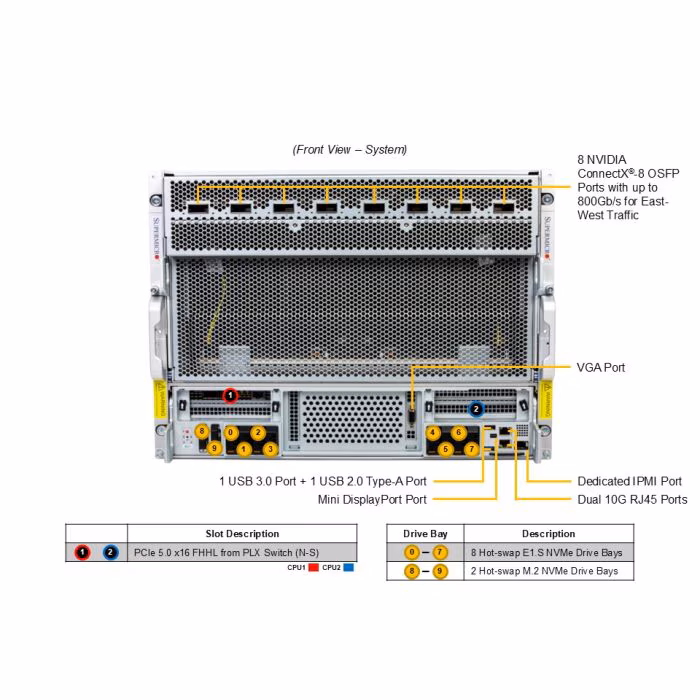

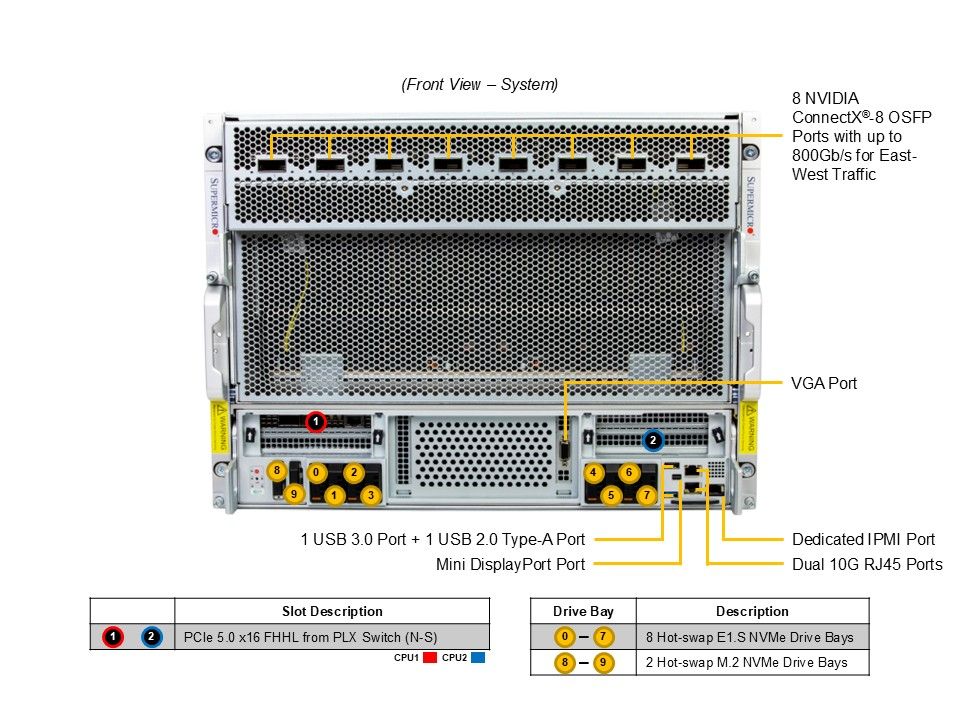

PCI-Express (PCIe) Configuration:
Default
2x PCIe 5.0 x16 FHHL slots
2x PCIe 5.0 x16 FHHL slots

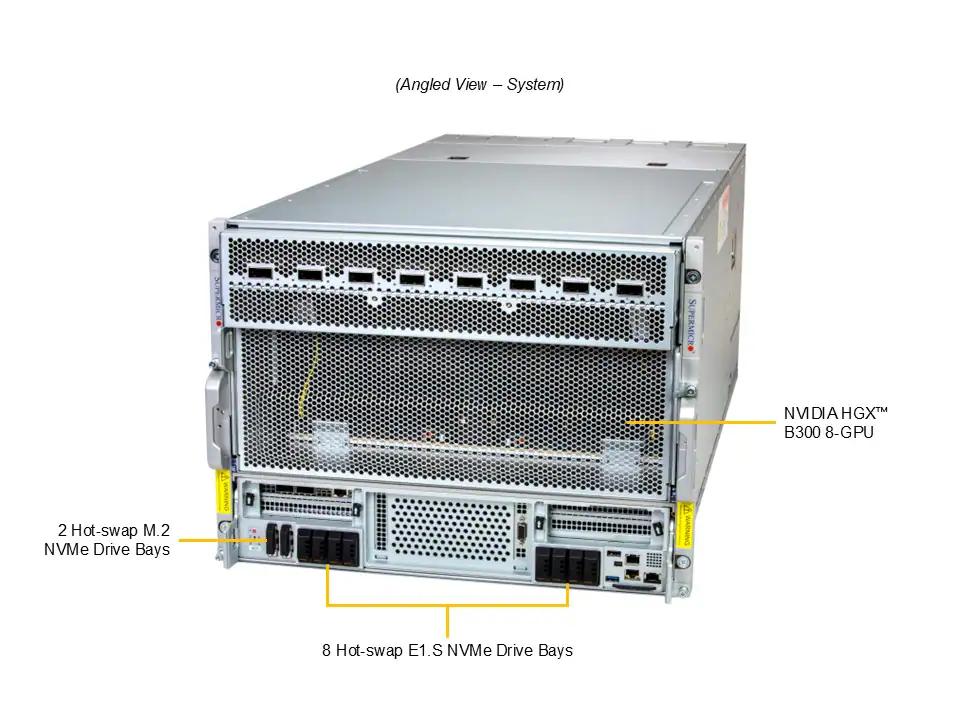

Drive Bays Configuration:
Default: Total 8 bays
8x front hot-swap E1.S NVMe drive bays
8x front hot-swap E1.S NVMe drive bays
M.2:
2x M.2 NVMe slots (M-key; RAID support via S3808N controller)
Fans:
Up to 12 heavy duty fans with optimal fan speed control
Environmental Spec.:
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Dimension (W x H x L):
106.5 x 82.1 x 245.3 mm
Input:
5900W: 200-207.9Vac / 50-60Hz 6000W: 208-219.9Vac / 50-60Hz 6300W: 220-229.9Vac / 50-60Hz 6500W: 230-238.9Vac / 50-60Hz 6600W: 239-240Vac / 50-60Hz
+12V:
Max: 130A / Min: 0A (200Vac-207.9Vac) Max: 130A / Min: 0A (208Vac-219.9Vac) Max: 130A / Min: 0A (220Vac-229.9Vac) Max: 130A / Min: 0A (230Vac-238.9Vac) Max: 130A / Min: 0A (239Vac-240Vac)
12V SB:
Max: 4A / Min: 0A
Output Type:
Backplanes (gold finger)
Certification:
Titanium Level 94%+ [ Test Report ]
Description:

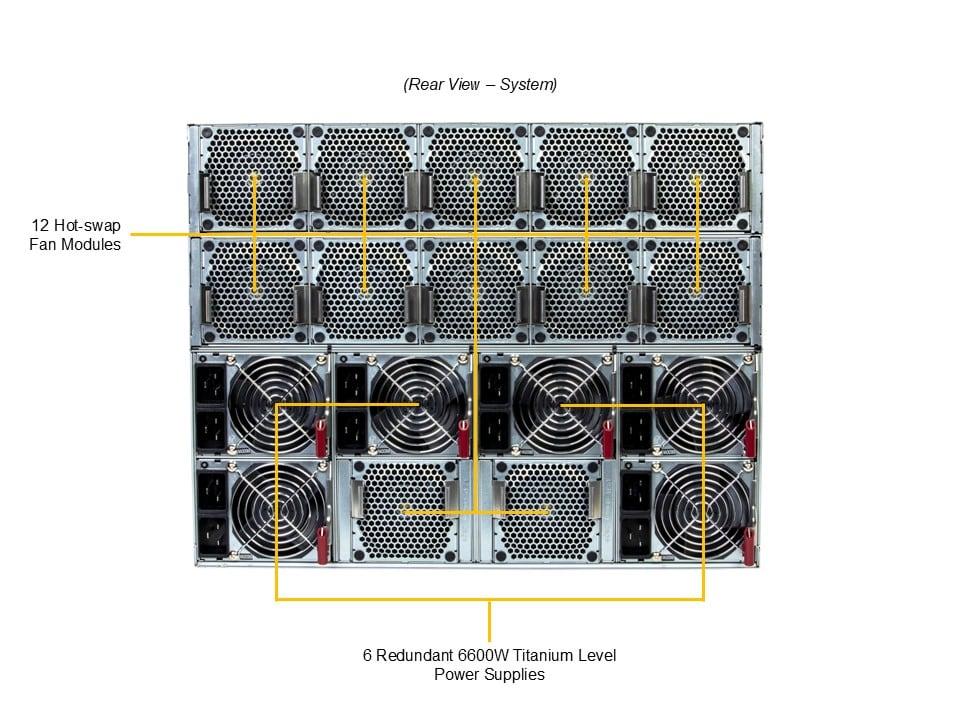

6x 6600W Redundant (3 + 3) Titanium Level (96%) power supplies
Title:
6x 6600W
Height:
13.8 in
Width:
17.6 in
Depth:
37.4 in
Package Height:
26.38 in
Package Width:
28.74 in
Package Depth:
50.39 in
Available Color:
Silver
Form Factor:
8U Rackmount
Model:
CSE-GP807TS-R000NP
Recycle:
Contact us at lifecycle@rackables.com for recycling options.
