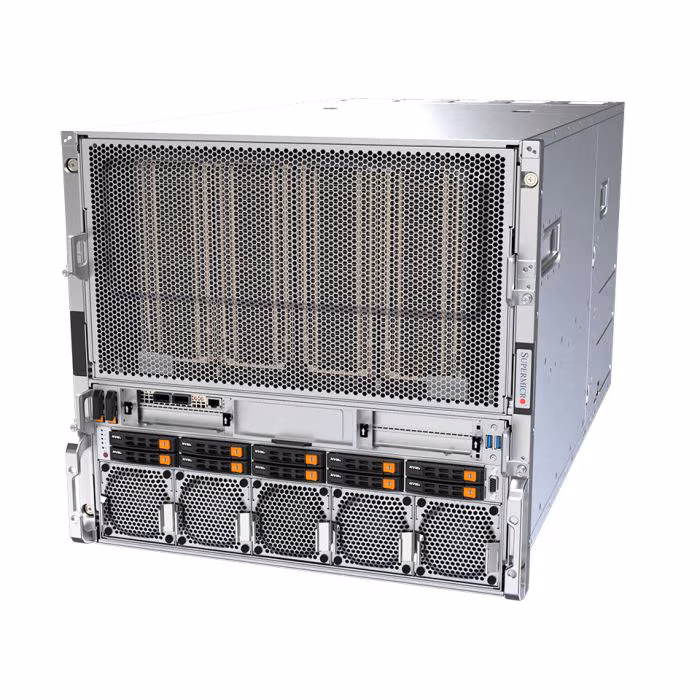

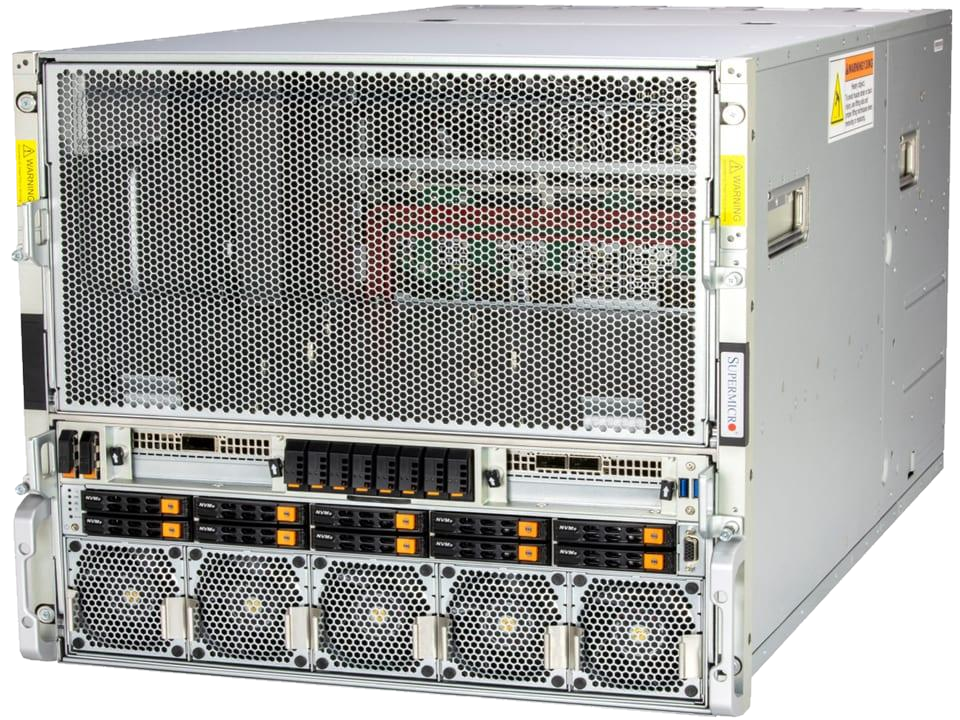

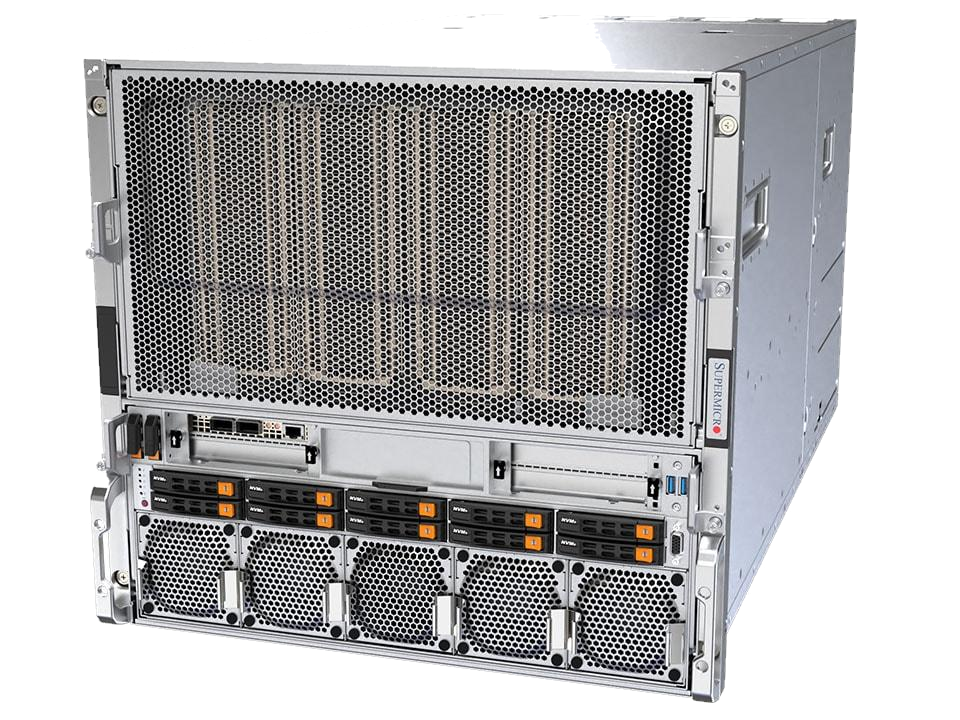

SupermicroSYS-A22GA-NBRT-G1
Out of stock
Engineered for cutting-edge applications, this 10U single-node server delivers exceptional performance for AI/Deep Learning, Conversational AI, High Performance Computing (HPC), Scientific Research, and Drug Discovery. Driven by dual Intel® Xeon® 6960P processors boasting a combined 144 cores, and complemented by 24 high-capacity 96GB DDR5-6400 RDIMMs, this system handles complex computations with ease. Storage is optimized for speed with 2x 1.9TB M.2 NVMe drives and 4x 1.9TB U.2 NVMe drives. Accelerate your research and training with the formidable 8 NVIDIA HGX B200 GPUs. High-bandwidth connectivity is ensured through 8x 400GbE OSFP ports, a dual-port 200GbE DPU, and 2x 10GbE RJ45 LAN ports. Ready to deploy immediately, this powerful server ships within 24 hours, minimizing downtime and maximizing productivity.
SKU: SYS-A22GA-NBRT-G1
Features
Key Features
- CPU - Dual Intel® Xeon® 6960P Processors (72-Cores)
- GPU - 8x NVIDIA HGX B200
- Chassis - 10U / 1 Node
- Drive - 2x 1.9TB M.2 NVMe + 4x 1.9TB U.2 NVMe
- RAM - 24x 96GB DDR5-6400 RDIMM Memory
- Network Ports - 8x 400GbE OSFP + 1x 200GbE DPU + 2x 10GbE RJ45 LAN Ports
Use Cases
Scientific Research
Conversational AI
Business Intelligence & Analytics
Drug Discovery
Finance Services and Fraud Detection
AI/Deep Learning Training and Inference
Large Language Model (LLM) and Generative AI
High Performance Computing (HPC)
Autonomous Vehicle Technologies

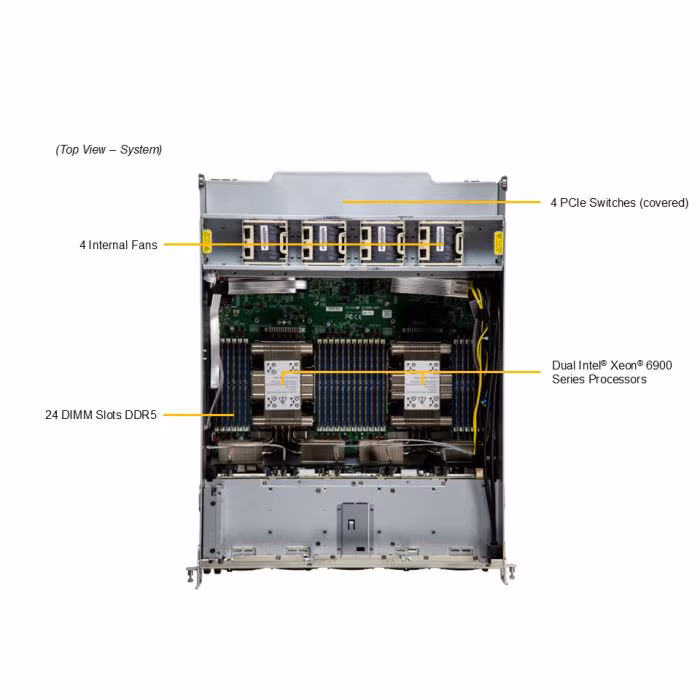

Motherboard
Super X14DBG-DAP
System BIOS
GPU
System Memory
On-Board Devices
Input / Output
Management
Security
PC Health Monitoring
Processor
BIOS Type:
AMI 64MB UEFI
Max GPU Count:
8x onboard GPUs
Supported GPU:
NVIDIA SXM: HGX B200 8-GPU (180GB)
CPU-GPU Interconnect:
PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect:
NVIDIA® NVLink® with NVSwitch™
Memory:
Slot Count: 24 DIMM slots
Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM
Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM
Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM
Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM
Memory Voltage:
1.1V
Chipset:
System on Chip
Network Connectivity:
2x RJ45 10GbE with Intel® X710
LAN:
1x RJ45 1 GbE Dedicated BMC LAN port
USB:
2x USB 3.0 ports(rear)
Video:
1x VGA port
TPM:
1x TPM header
Software:
SuperCloud Composer®
Supermicro Server Manager (SSM)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Supermicro Server Manager (SSM)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Power Configurations:
Power-on mode for AC power recovery
ACPI Power Management
ACPI Power Management
Hardware:
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features:
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
CPU:
Monitors for CPU Cores, Chipset Voltages, Memory
Fan:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Thermal Control for fan connectors
CPU:
Dual Socket BR (LGA-7529)
Intel® Xeon® 6900 series processors with P-cores
Intel® Xeon® 6900 series processors with P-cores
Cores:
Up to 128C/256T; Up to 504MB Cache per CPU
Note:
Supports up to 500W TDP CPUs (Air Cooled)
Chassis
Front Panel
Expansion Slots
Drive Bays / Storage
System Cooling
Operating Environment
Power Supply
Dimensions
Environmental / Recycling
Buttons:
Power On/Off
UID/ Reset button
UID/ Reset button
LED:
HDD activity
Network activity LEDs
System information (overheat/UID)
UID
Network activity LEDs
System information (overheat/UID)
UID
PCI-Express (PCIe) Configuration:
Default
10x PCIe 5.0 x16 LP slots
2x PCIe 5.0 x16 FHHL slots
10x PCIe 5.0 x16 LP slots
2x PCIe 5.0 x16 FHHL slots
Drive Bays Configuration:
Default: Total 10 bays
10x front hot-swap 2.5" PCIe 5.0 x4 NVMe drive bays
10x front hot-swap 2.5" PCIe 5.0 x4 NVMe drive bays
M.2:
2x M.2 PCIe 4.0 x4 NVMe slots (M-key 2280/22110)

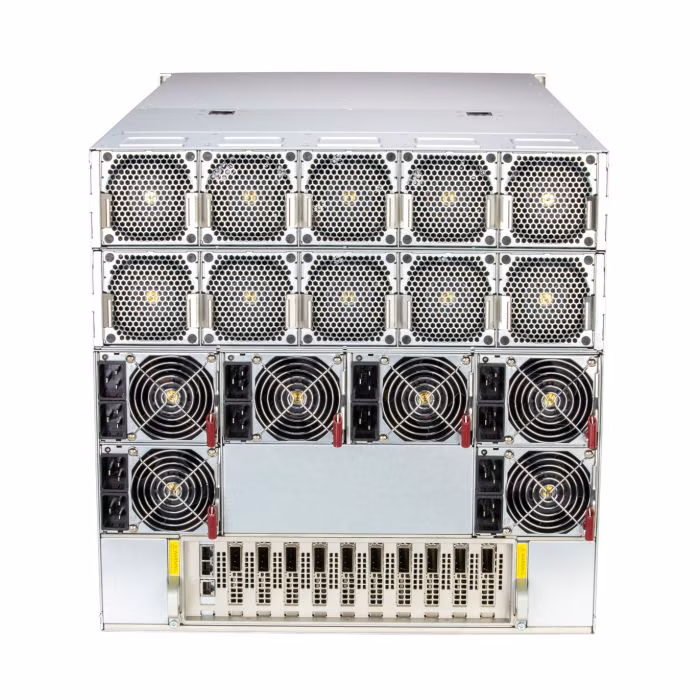

Fans:
15x counter-rotating 80x80x80mm Fan(s)
4x counter-rotating 60x60x56mm Fan(s)
4x counter-rotating 60x60x56mm Fan(s)
Air Shroud:
1x Air Shroud
Environmental Spec.:
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Configuration:
6x 5250W Redundant (3 + 3) Titanium Level (96%) power supplies
Dimension (W x H x L):
106.5 x 82.1 x 245.3 mm
Input:
5250W: 200-240Vac / 50-60Hz
+12V:
Max: 125A / Min: 0A (200Vac-240Vac)
12V SB:
Max: 4A / Min: 0A
Output Type:
Backplanes (gold finger)
Certification:
Titanium Level
Height:
17.2 in
Width:
17.6 in
Depth:
33.2 in
Gross Weight:
341.06 lb
Net Weight:
292.99 lb
Available Color:
Silver
Recycle:
Contact us at lifecycle@rackables.com for recycling options.
