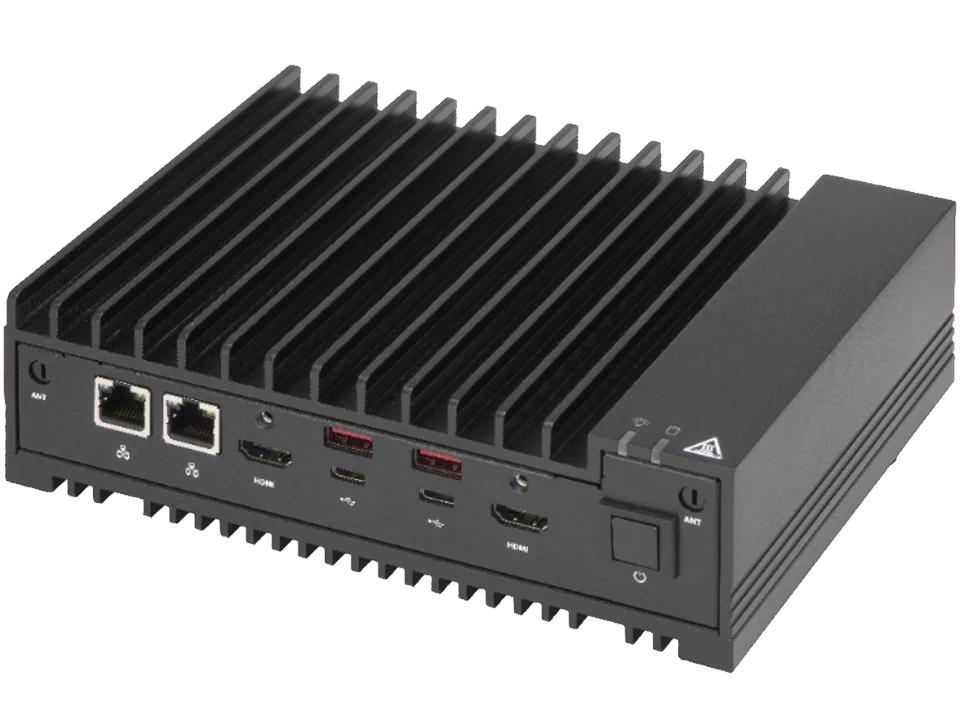

SupermicroSYS-E100-13AD-L-G1
Out of stock
Supermicro has chosen the most popular configurations, allowing you to skip complex customization and validation processes! The Gold Series Solutions are designed for faster and large-scale deployments.
This compact and versatile Mini-ITX system, featuring a 6-core Intel® Core™ i3-1215UE processor, 16GB of DDR5-4800 RAM, and a 256GB SATA SSD, is designed to excel in demanding industrial and commercial environments. Its robust performance and small footprint make it ideal for a wide range of applications, including industrial automation, digital signage kiosks, interactive information systems, and smart medical expert systems. Equipped with dual 2.5GbE ports, this system ensures seamless connectivity for critical data transfer and communication. Furthermore, it serves as a powerful IoT gateway for smart factories, buildings, and security/surveillance deployments, enabling efficient data collection and analysis. Ready to ship within 24 hours, this system provides a readily available solution for your diverse operational needs.
SKU: SYS-E100-13AD-L-G1
Features
Key Features
- CPU - Single Intel® Core™ i3-1215UE Processor (6-Cores)
- Chassis - Mini-ITX
- Drive - 1x 256GB M.2 SATA
- RAM - 1x 16GB DDR5-4800 RDIMM Memory Slot

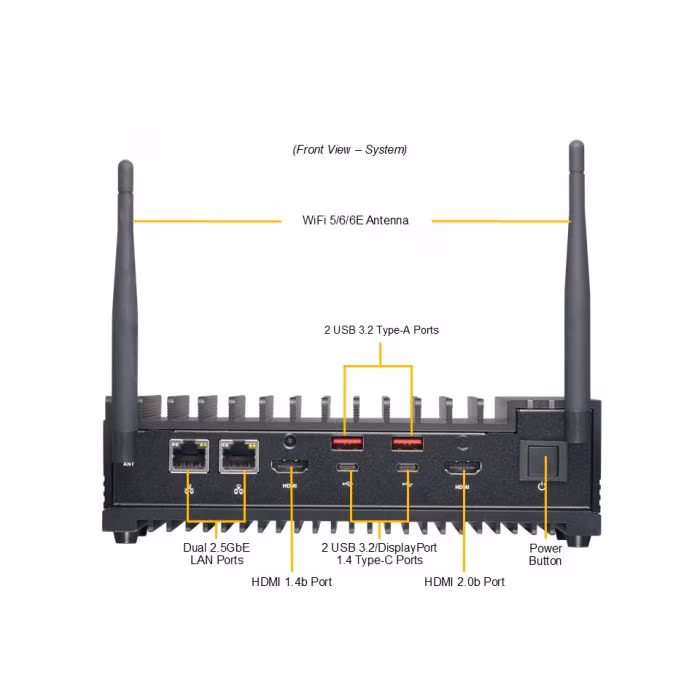

- Network Ports - 2x 2.5GbE RJ45 LAN Ports
Use Cases
Industrial Automation, Retail
Smart Medical Expert Systems
Digital Signage Kiosk, Interactive info system
IoT Gateway for Smart Factory
Smart Building, Security and Surveillance
Motherboard
Super X13SAN-L-WOHS
System BIOS
System Memory
On-Board Devices
Input / Output
Management
Security
Processor
BIOS Type:
AMIUEFI
BIOS Features:
ACPI 6.4
SMBIOS 3.5 or later
UEFI 2.8
PCI F/W 3.0
SMBIOS 3.5 or later
UEFI 2.8
PCI F/W 3.0
Memory:
Slot Count: 2 DIMM slots/2 Channels
Max Memory (2DPC): Up to 64GB 4800MT/s non-ECC DDR5 SO-DIMM
Max Memory (2DPC): Up to 64GB 4800MT/s non-ECC DDR5 SO-DIMM
Memory Voltage:
1.1V
Chipset:
intel System on Chip
Network Connectivity:
2x RJ45 2.5GbE with Intel® I225-IT
LAN:
2x RJ45 2.5 GbE LAN ports (Intel® I225-IT)

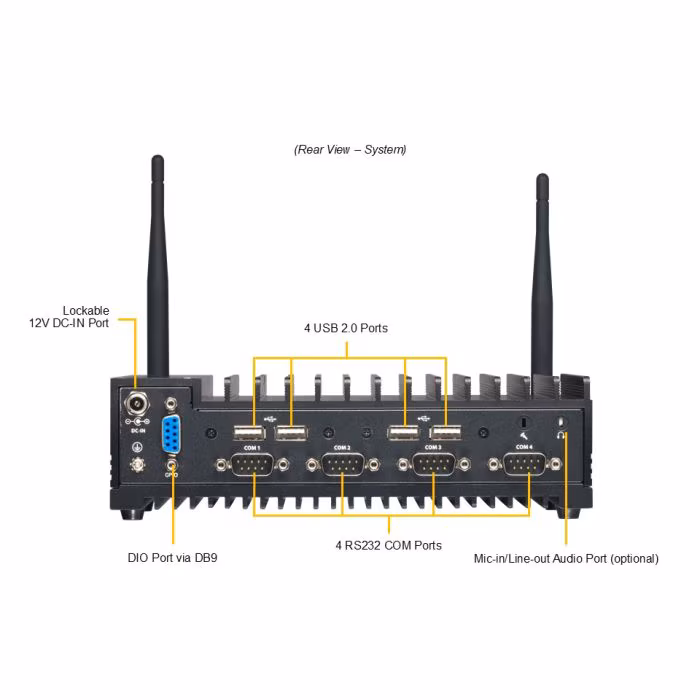

USB:
2x USB 3.2 Gen1 Type-C ports(front)
2x USB 3.2 Gen1 Type-A ports(front)
4x USB 2.0 Type-A ports(Rear)
2x USB 3.2 Gen1 Type-A ports(front)
4x USB 2.0 Type-A ports(Rear)
Video:
1x HDMI 2.0b port(Front)
1x HDMI 1.4b port(Front)
2x Mini-DP 1.4 ports(Front)
1x HDMI 1.4b port(Front)
2x Mini-DP 1.4 ports(Front)
TPM:
1x TPM Onboard/port 80
Serial:
4x COM ports(Rear)
Software:
Supermicro SuperDoctor® 5 (SD5)
Power Configurations:
ACPI Power Management
CPU thermal trip support for processor protection
Control of power-on for recovery from AC power loss
DC 12V~24V Wide power range input
Force power-on by jumper
CPU thermal trip support for processor protection
Control of power-on for recovery from AC power loss
DC 12V~24V Wide power range input
Force power-on by jumper
Hardware:
Trusted Platform Module (TPM) 2.0
CPU:
Single FCBGA-1744
Intel® Core™ i3-1215UE
Intel® Core™ i3-1215UE
Cores:
Up to 6C/12T; Up to 10MB Cache
Note:
Supports up to 15W TDP CPUs (Air Cooled)
Chassis
CSE-E101-04
Front Panel
Expansion Slots
Drive Bays / Storage
System Cooling
Operating Environment
Power Supply
Dimensions
Environmental / Recycling
Buttons:
Power On/Off
LED:
HDD Status
LAN1 activity
LAN2 activity
Power status
LAN1 activity
LAN2 activity
Power status
M.2:
1x M.2 SATA slot (B-key 2242/2280; USB 3.0)
1x M.2 slot (E-key 2230; USB 2.0)
1x M.2 slot (E-key 2230; USB 2.0)
M.2:
1x M.2 PCIe 4.0 x4 NVMe slot (M-key 2242/2280)
1x M.2 SATA slot (B-key 2242/2280; USB 3.0)
1x M.2 SATA slot (B-key 2242/2280; USB 3.0)
Fans:
N/A
Environmental Spec.:
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Rohs:
RoHS Compliant
Dimension (W x H x L):
160x x 32.2 x 58 mm
Input:
84W: 100-240Vac / 47-63Hz
Power Supply:
1x 84W power supply

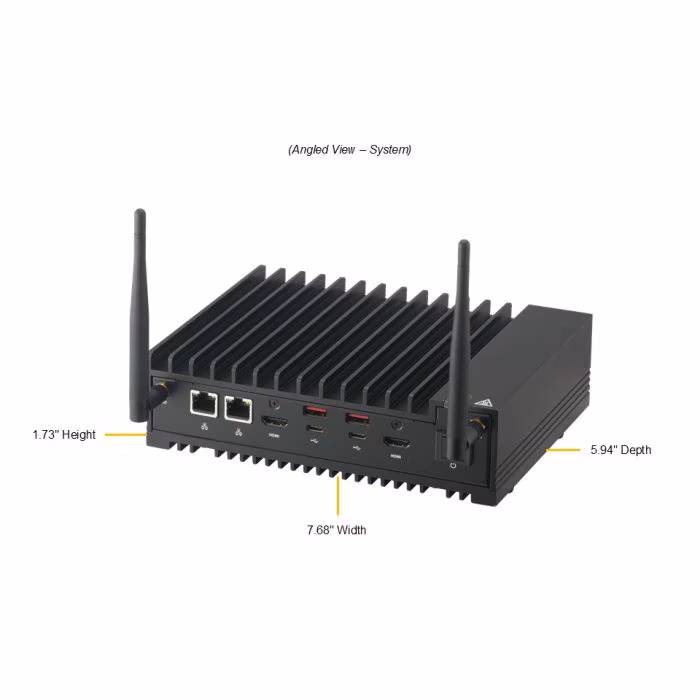

Height:
1.73 in
Width:
7.68 in
Depth:
5.94 in
Package Height:
5.12 in
Package Width:
11.81 in
Package Depth:
11 in
Gross Weight:
4.41 lb
Net Weight:
2.2 lb
Available Color:
Black
Form Factor:
Fanless Embedded
Model:
CSE-E101-04
Recycle:
Contact us at lifecycle@rackables.com for recycling options.
Part NumberQtyDescription
Motherboard / Chassis
MBD-X13SAN-L-WOHS1Super X13SAN-L-WOHS MotherboardCSE-E101-041Fanless Embedded Chassis
Cable
CBL-PWCD-0260-IS1PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,18AWG,RoHS/REACHCBL-CUSB-09852USB 2.0,INT-EXT,2 PORT,TYPE-A-2X5/P2.00, 18CMCBL-CUSB-10471SERIAL, DB9F TO 2X5F/P2.00,INT TO EXT,FLAT, 30CM, 28AWGCBL-OTHR-104612x LED (green, orange) to 8P/F/P2.00 + push button switch, 32CM, 26AWG
Power Supply
MCP-250-10137-0N184W Lockable AC to DC power adapter w/o power cord - EN62368
Heatsink / Retention
MCP-350-10103-0N1for X13SAN in system
Manual
MNL-2622-QRG1E100-13AD-H/E/L/C Quick Reference Guide
Audio Kit
MCP-280-10001-0B1Audio Cable Phone Jack and Plug(3.5mm) L:100mm,HF,RoHS
Din Rail Kit
MCP-290-10201-0N1CSE-E101/E102/E50 Mounting Hardware Clip for 35mm DIN Rail
Thermal Solution
MCP-270-10105-0B1FIN base bottom cover for M.2 NMVeMCP-270-10105-1B1FIN base bottom cover for HAILO-8 M.2 Module
WiFi Certificate
AOC-ANTE-WFRP-012WiFi 5/6/6E ANT, SMA R.P, Freq. 2.4-2.5/5.15-7.125 GHzAOC-CSMA-MRPI4-202SMA R.P/Male pin to IPEX MHF-IV for OD 1.13mm CBL, 20cmAOC-WLAN-210NGWGII1Intel® Wi-Fi 6E AX210 (Gig+), 2230, 2x2 AX R2 (6GHz)+BT, vPro
Warranty & Support
