SupermicroSYS-E200-12A-8C-G1
Out of stock
Supermicro has chosen the most popular configurations, allowing you to skip complex customization and validation processes! The Gold Series Solutions are designed for faster and large-scale deployments.

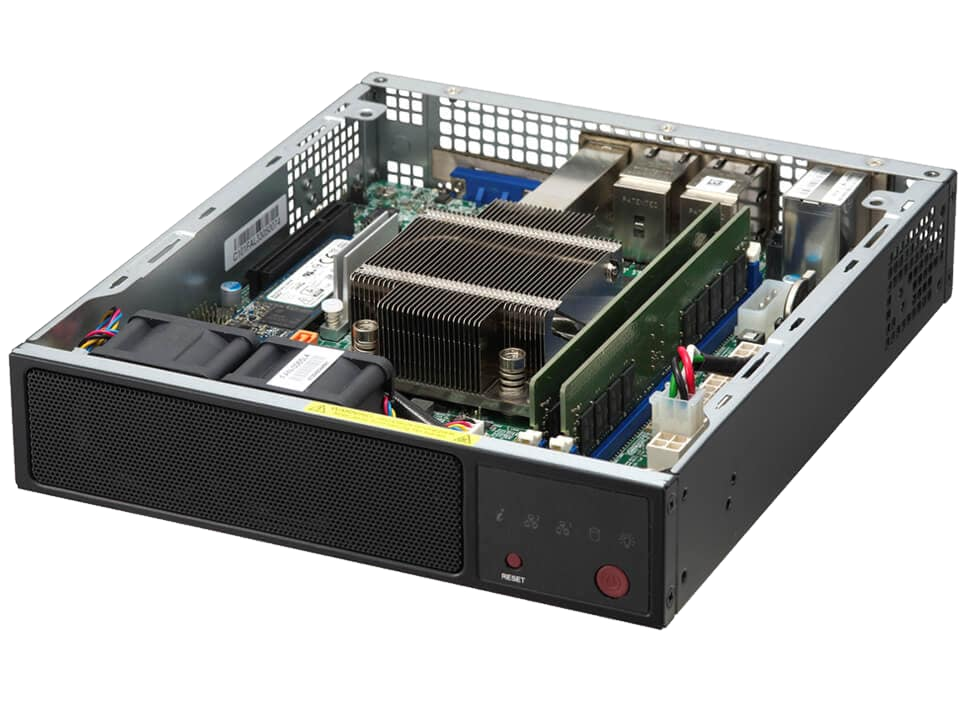

This compact Mini-ITX server, powered by an Intel® Atom® C5325 8-core processor, is perfect for virtualization, entry-level network appliances, and virtual CPE white box solutions. It offers a balance of performance and efficiency, featuring a 960GB NVMe drive for fast storage, 32GB of DDR4-3200 RAM, and versatile networking with 4x 1GbE RJ45 and 2x 10GbE SFP+ ports. This server is ideal for businesses seeking a compact and reliable solution that ships within 24 hours.
SKU: SYS-E200-12A-8C-G1
Features
Key Features
- CPU - Single Intel® Atom® C5325 Processor (8-Cores)
- Chassis - Mini-ITX
- Drive - 1x 960GB M.2 NVMe
- RAM - 1x 32GB DDR4-3200 RDIMM Memory Slot
- Network Ports - 4x 1GbE RJ45 + 2x 10GbE SFP+ Ports
Use Cases
Virtualization Server
Virtual-CPE White Box
Entry-level Network Appliance
Motherboard
Super A3SPI-8C-LN6PF
System BIOS
System Memory
On-Board Devices
Input / Output
Management
Security
Processor
BIOS Type:
AMI 32MB UEFI
BIOS Features:
UEFI 2.7
ACPI 6.0 or later
SMBIOS 3.0 or later
ACPI 6.0 or later
SMBIOS 3.0 or later
Memory:
Slot Count: 2 DIMM slots
Max Memory (2DPC): 128GB 2933MT/s ECC DDR4 RDIMM
Max Memory (2DPC): 128GB 2933MT/s ECC DDR4 RDIMM
Memory Voltage:
1.2V
Chipset:
Intel® SoC

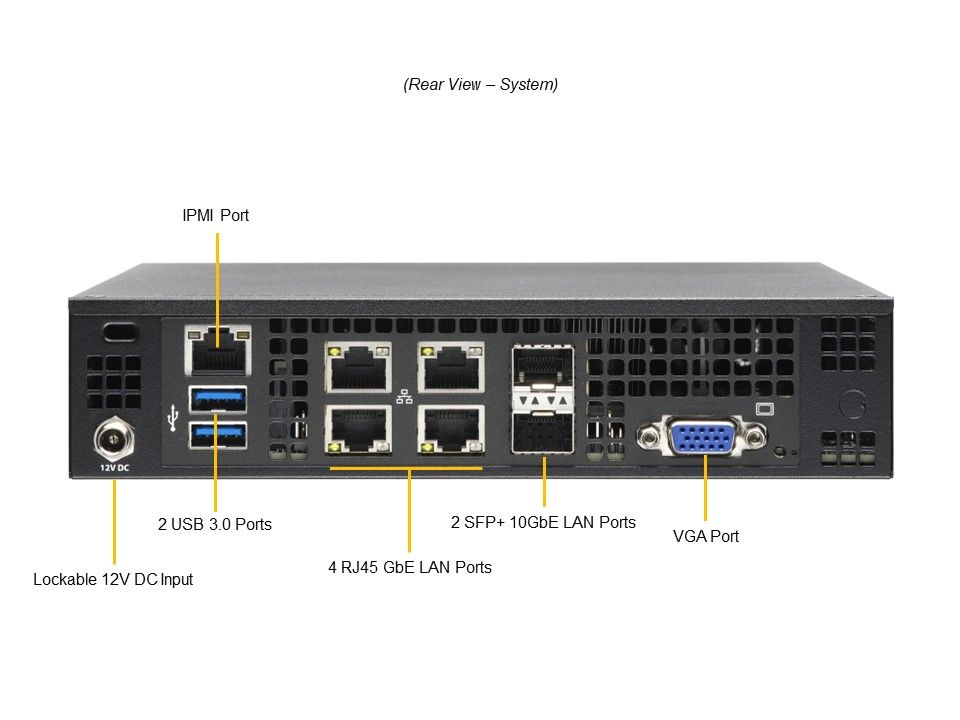

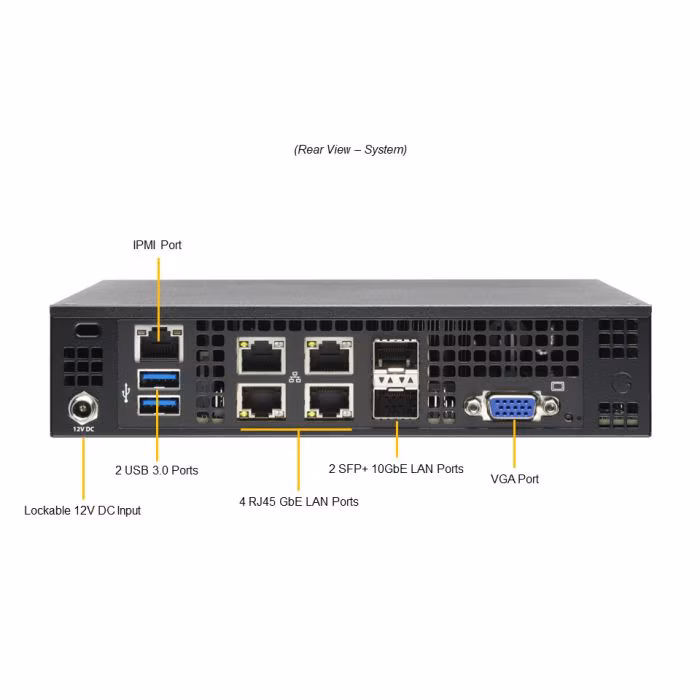

Network Connectivity:
4x RJ45 1GbE with Intel® C5000 SoC
2x SFP+ 10GbE with Intel® C5000 SoC
2x SFP+ 10GbE with Intel® C5000 SoC
LAN:
1x RJ45 1 GbE Dedicated BMC LAN port
2x SFP+ 10 GbE LAN ports
4x RJ45 1 GbE LAN ports
2x SFP+ 10 GbE LAN ports
4x RJ45 1 GbE LAN ports
USB:
2x USB 3.0 ports
Video:
1x VGA port
Software:
SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Power Configurations:
Power-on mode for AC power recovery
+12V DC Power Input
CPU thermal trip support for processor protection
+12V DC Power Input
CPU thermal trip support for processor protection
Hardware:
Trusted Platform Module (TPM) 2.0
CPU:
Single FCBGA-2106
Intel® Atom® processor C5325
Intel® Atom® processor C5325
Cores:
8C/8T; 9MB Cache
Note:
Supports up to 41W TDP CPUs (Air Cooled)
Chassis
CSE-101F
Front Panel
Expansion Slots
Drive Bays / Storage
System Cooling
Operating Environment
Power Supply
Dimensions
Environmental / Recycling

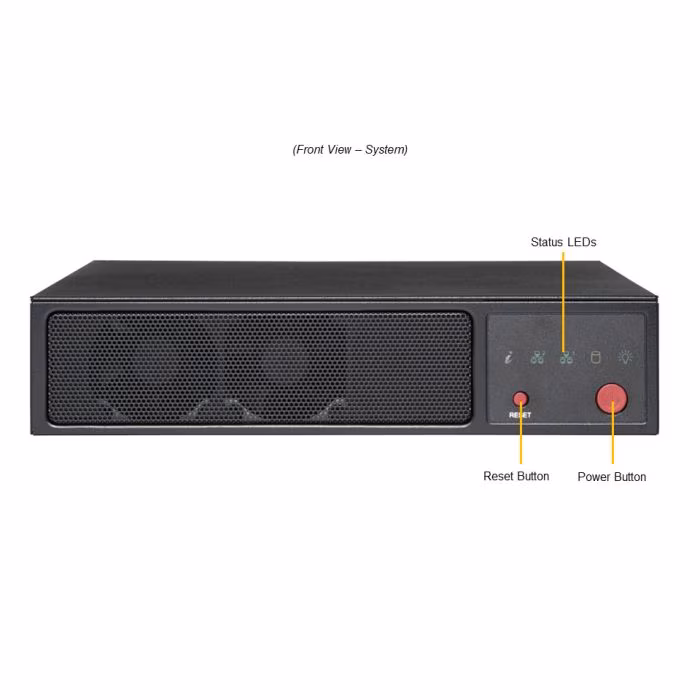

Buttons:
Power On/Off button
System Reset button
System Reset button
LED:
Unit Identification (UID) LED
M.2:
1x M.2 NVMe/SATA slot (B-key 3052)
M.2:
1x M.2 PCIe 3.0 x4 NVMe slot (M-key 2280)
Fans:
2x 4-PIN PWM 40x40x28mm Fan(s)
Environmental Spec.:
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Dimension (W x H x L):
151.3 x 25.4 x 75.6 mm
Input:
150W: 100-240Vac / 47-63Hz
Power Supply:
1x 150W power supply
Height:
1.69 in
Width:
7.68 in
Depth:
8.89 in
Package Height:
11.22 in
Package Width:
14.96 in
Package Depth:
5.47 in
Gross Weight:
7.5 lb
Net Weight:
2.87 lb
Available Color:
Black
Form Factor:
Mini-ITX
Model:
CSE-101F
Recycle:
Contact us at lifecycle@rackables.com for recycling options.
Part NumberQtyDescription
Motherboard / Chassis
MBD-A3SPI-8C-LN6PF1Super A3SPI-8C-LN6PF MotherboardCSE-101F1Mini-ITX Chassis
Fan
FAN-0065L414028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M
Power Supply
MCP-250-10128-0N1150W Lockable Power Adapter with US power cord
Parts
MCP-260-00175-0B11U E300/E200 I/O Shield for A3SPI with EMI Gasket
Dual System Tray Bracket
MCP-290-10119-0B1Dual System Tray Bracket
Mounting Brackets
MCP-290-10111-0B1Wall-Mount Bracket Kit
Rack Mounting Brackets
MCP-290-10110-0B1Rack Bracket
Warranty & Support
Please visit the link for more information about Supermicro products warranty.
