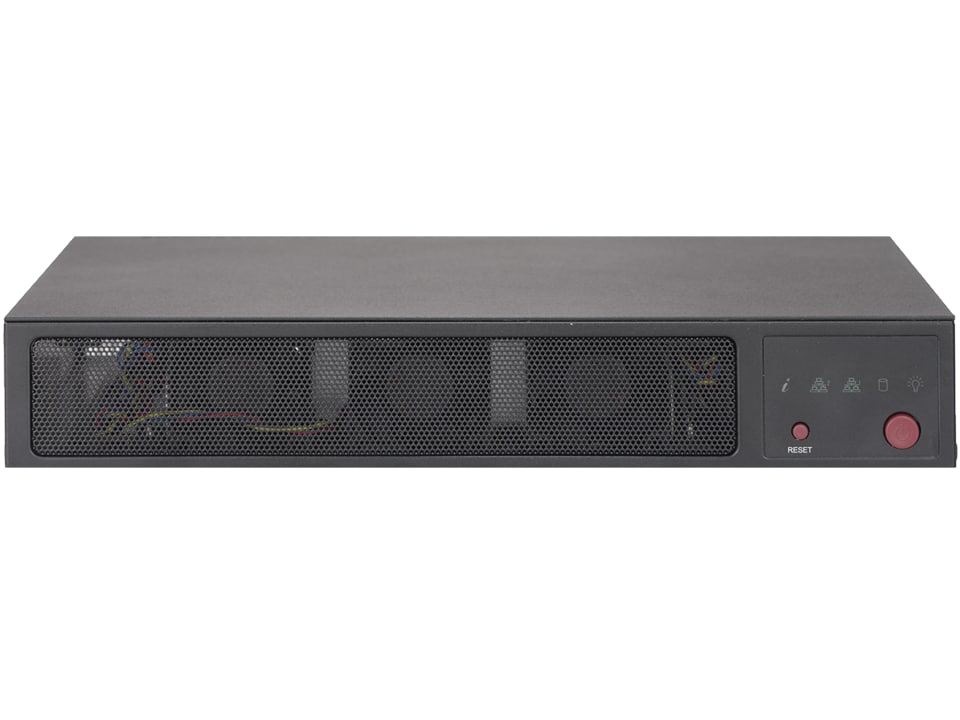

SupermicroSYS-E300-13AD-02-G1
Out of stock
This fan-based embedded server, powered by a 14-core Intel® Core™ i5-13500E processor and 32GB of DDR4-3200 SODIMM memory, is designed for versatile applications including digital signage, medical imaging, surveillance security, and AI inference. Storage is handled by a rapid 960GB M.2 NVMe drive for efficient data access. Network connectivity is provided by a combination of a 2.5GbE RJ45 LAN port for high-speed connections and a 1GbE RJ45 LAN port for standard networking. The fan-based embedded design ensures reliable operation in diverse environments, and with 24-hour shipping, it's ready for immediate deployment.
SKU: SYS-E300-13AD-02-G1
Features
Key Features
- CPU - Single Intel® Core™ i5-13500E Processor (14-Cores)
- Chassis - Fan-Based Embedded / 1 Node
- Drive - 1x 960GB M.2 NVMe
- RAM - 2x 16GB DDR4-3200 SODIMM Memory
- Network Ports - 1x 2.5GbE RJ45 LAN Port + 1x 1GbE RJ45 LAN Port
Use Cases
Digital Signage
Surveillance Security Server
Medical Applications
AI Inference

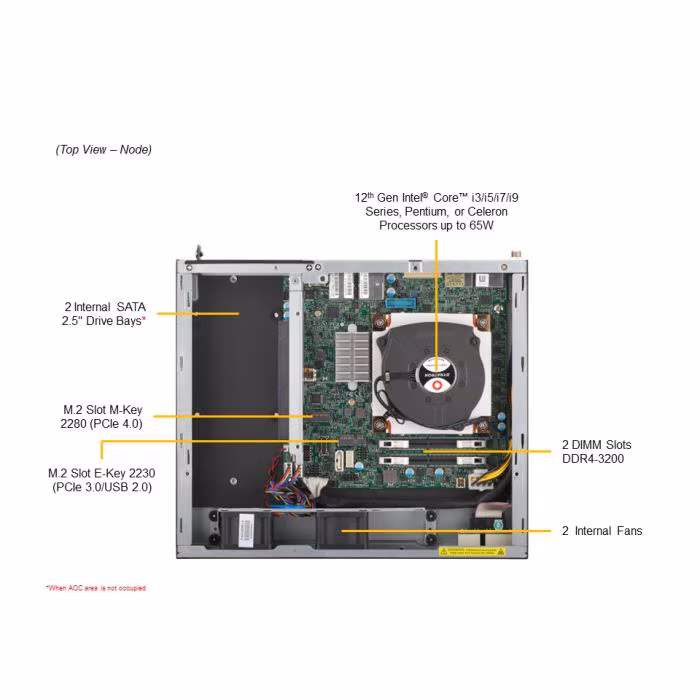

Motherboard
Super X13SAV-LVDS
System BIOS
GPU
System Memory
On-Board Devices
Input / Output
Management
Security
Processor
BIOS Type:
AMI 32MB SPI Flash
BIOS Features:
ACPI 6.0
Plug and Play (PnP)
RTC (Real Time Clock) Wakeup
SPI dual/quad speed support
Plug and Play (PnP)
RTC (Real Time Clock) Wakeup
SPI dual/quad speed support
Max GPU Count:
1x single-width GPU
Supported GPU:
NVIDIA PCIe: A1000, L4
Memory:
Slot Count: 2 DIMM slots
Max Memory (2DPC): Up to 64GB 3200MT/s non-ECC DDR4 SO-DIMM
Max Memory (2DPC): Up to 64GB 3200MT/s non-ECC DDR4 SO-DIMM
Memory Voltage:
1.2V
Chipset:
Intel® Q670E

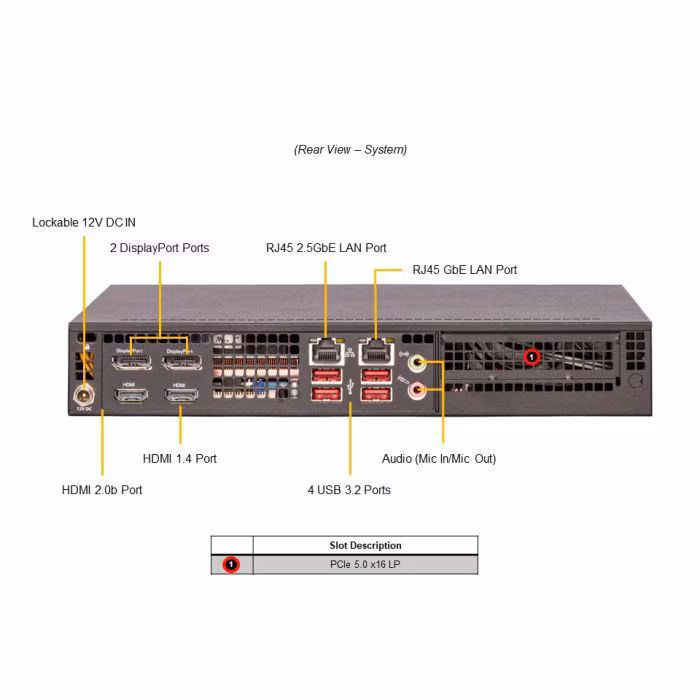

Network Connectivity:
1x RJ45 1GbE with Intel® I210-AT
1x RJ45 2.5GbE with Intel® I225-LM
1x RJ45 2.5GbE with Intel® I225-LM
LAN:
1x RJ45 2.5 GbE LAN port (Intel® I225-LM)
1x RJ45 1 GbE LAN port (Intel® I210-AT)
1x RJ45 1 GbE LAN port (Intel® I210-AT)
USB:
4x USB 3.2 Gen2 Type-A ports(Rear)
Video:
1x HDMI 2.0b port(Rear)
1x HDMI 1.4 port(Rear)
2x DisplayPort ports(Rear)
1x HDMI 1.4 port(Rear)
2x DisplayPort ports(Rear)
Audio:
Line Out
Mic in
Mic in
Software:
SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Power Configurations:
Power-on mode for AC power recovery
ACPI Power Management
ACPI Power Management
Hardware:
Trusted Platform Module (TPM) 2.0
CPU:
Single LGA-1700
13th/12th Gen Intel® Core i9/Core i7/Core i5/Core i3/Pentium/Celeron processor
13th/12th Gen Intel® Core i9/Core i7/Core i5/Core i3/Pentium/Celeron processor
Cores:
Up to 16C/32T; Up to 30MB Cache
Note:
Supports up to 65W TDP CPUs (Air Cooled)
Chassis
CSE-E300

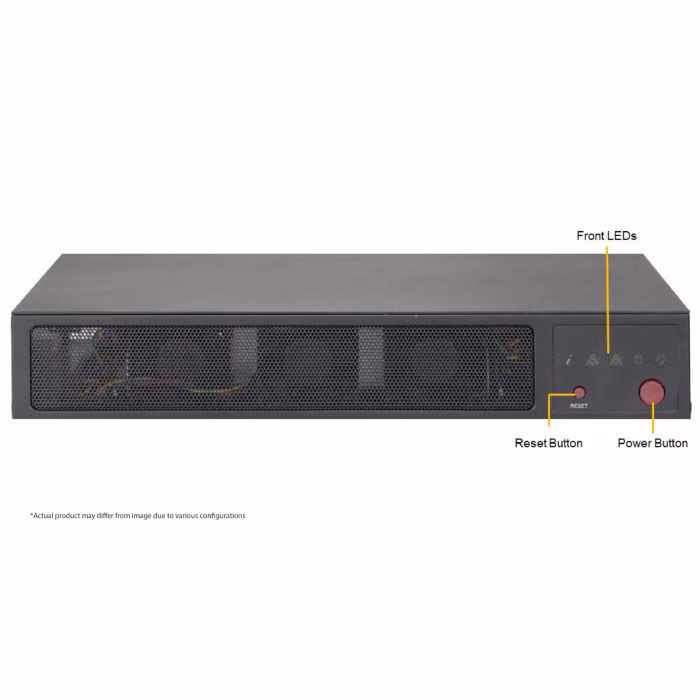

Front Panel
Expansion Slots
Drive Bays / Storage
System Cooling
Operating Environment
Power Supply
Dimensions
Environmental / Recycling
Buttons:
Power On/Off
LED:
HDD Status
LAN1 activity
LAN2 activity
Power status
WIFI activity
LAN1 activity
LAN2 activity
Power status
WIFI activity
PCI-Express (PCIe) Configuration:
Default*
1x PCIe 5.0 x16 (in x16) LP slot
(*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
1x PCIe 5.0 x16 (in x16) LP slot
(*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
M.2:
1x M.2 PCIe 3.0 x1 slot (E-key 2230)
Drive Bays Configuration:
Default: Total 1 bay
1x internal fixed 2.5" SATA* drive bay
(*SATA support may require additional storage controller and/or cables)
1x internal fixed 2.5" SATA* drive bay
(*SATA support may require additional storage controller and/or cables)
M.2:
1x M.2 PCIe 4.0 x4 NVMe slot (M-key 2280)
Fans:
2x 4-PIN PWM 40x40x28mm Fan(s)
1x CPU heatsink with Φ80x15mm Fan(s)
1x CPU heatsink with Φ80x15mm Fan(s)
Environmental Spec.:
Operating Temperature: 0°C to 40°C (32°F to 104°F) with 0.7 m/s airflow
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Dimension (W x H x L):
151.3 x 25.4 x 75.6 mm
Input:
180W: 100-240Vac / 47-63Hz
Power Supply:
1x 180W power supply
Height:
1.69 in
Width:
10.43 in
Depth:
8.89 in
Package Height:
10.87 in
Package Width:
15 in
Package Depth:
5.59 in
Gross Weight:
7.5 lb
Net Weight:
3.75 lb
Available Color:
Black
Form Factor:
Fan-based Embedded
Model:
CSE-E300
Recycle:
Contact us at lifecycle@rackables.com for recycling options.
Part NumberQtyDescription
Motherboard / Chassis
MBD-X13SAV-LVDS1Super X13SAV-LVDS MotherboardCSE-E3001Fan-based Embedded Chassis
Cable
CBL-0473L17pin SATA (STR to STR), 21cm, PBFCBL-PWEX-09821PWR EXT,1X4F/P2.50 TO SATA POWER, 25CM, 22AWG
Fan
FAN-0065L424028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M
Power Supply
MCP-250-10133-0N1180W DC power adapter with US power cord 18AWG 6ft
Parts
MCP-260-00167-0B11U E300, 101F I/O Shield for X13SAV-LVDS with EMI Gasket
Manual
MNL-2558-QRG1E300-13AD Quick Reference Guide
Heatsink / Retention
SNK-P0085A411U Active CPU Heat Sink for E300-13C Embedded Server
Dual 2.5" drive bay kits
CBL-SAST-09331OcuLink v 1.0 to 4x SATA 7-pin,INT, 50CM,32AWG,RoHSCBL-SAST-08861SATA 15pin x2 to 4pin /P2.5,40CM,22AWG,RoHS
Expansion slot kits
RSC-S-6G511U LHS Standard Riser card with one PCIe 5.0 X16 slot.,H
GPU air shroud
MCP-310-30001-0B1Air shroud for NVIDIA Low profile GPU card(T4/A2/L4)
Rackmount kits
MCP-290-30002-0B1CSE-E300 Rackmount kit with power adapter holder
Table Vertical Stand
MCP-290-30006-0B1CSE-E300 Vertical Stand,RoHS
