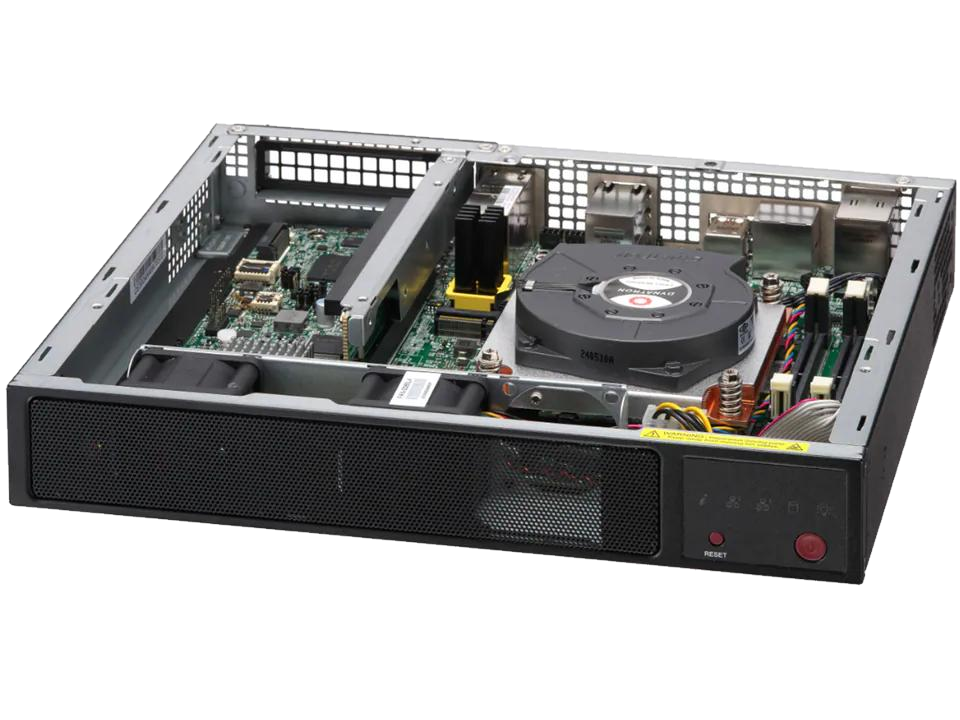

SupermicroSYS-E300-14AR-01-G2
$3,797.30Mini-1U Embedded System with Intel® Core™ Ultra processor up to 65W TDP
SKU: SYS-E300-14AR-01-G2
Features
Key Features
- CPU - Single Intel Core Ultra U5-245 (14-Cores, 3GHz)
- Chassis - Mini-1U (Compact)
- Drive - 960GB (1x 960GB M.2 NVMe)
- RAM - 2x 16GB DDR5-5600
- Network Ports - 2-port 10GbE, 2-port 2.5GbE
Use Cases
Healthcare
Surveillance Security Server
AI Inference
Digital Signage / PoS

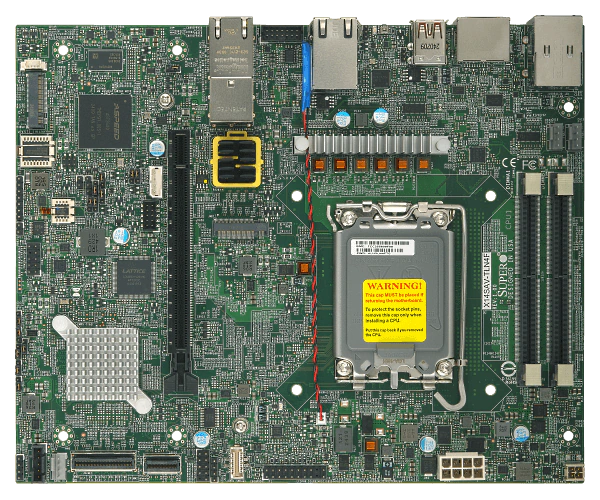

Motherboard
Super X14SAV-TLN4F
System BIOS
System Memory
On-Board Devices
Input / Output
Management
Security
Processor
BIOS Type:
AMI 32MB UEFI
BIOS Features:
ACPI 6.5
SMBIOS 3.7 or later
UEFI 2.9
SMBIOS 3.7 or later
UEFI 2.9
Memory:
Slot Count: 2 DIMM slots
Max Memory (1DPC): Up to 96GB 6400MT/s ECC/non-ECC DDR5 SO-DIMM
Max Memory (1DPC): Up to 96GB 6400MT/s ECC/non-ECC DDR5 SO-DIMM
Memory Voltage:
1.1V
Chipset:
Intel® W880

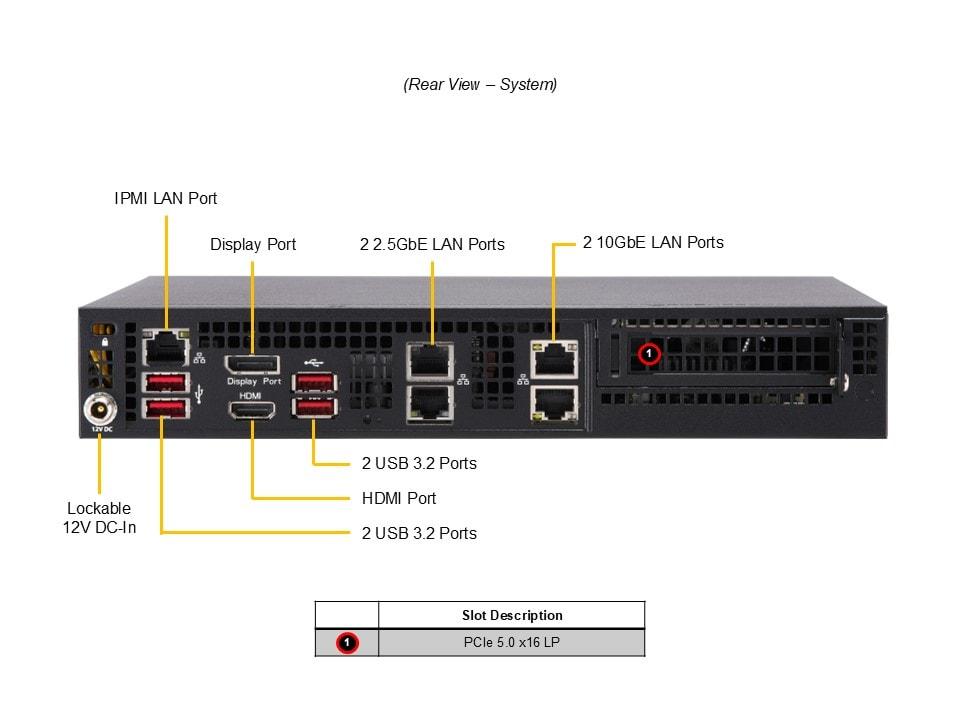

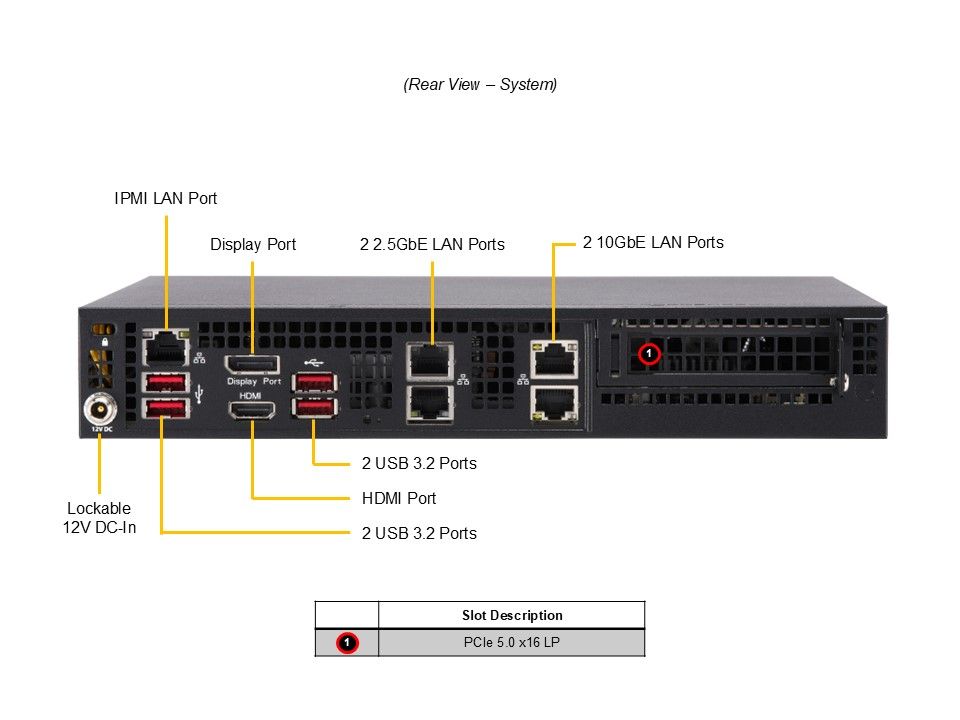

LAN:
1x RJ45 1 GbE Dedicated BMC LAN port
2x RJ45 10 GbE LAN ports (Intel® X550)
2x RJ45 2.5 GbE LAN ports (Intel® I226-LM)
2x RJ45 10 GbE LAN ports (Intel® X550)
2x RJ45 2.5 GbE LAN ports (Intel® I226-LM)
USB:
4x USB 3.2 Gen2 Type-A ports(Rear)
Video:
1x VGA port(Rear)
1x DisplayPort port(Rear)
1x HDMI port(Rear)
1x DisplayPort port(Rear)
1x HDMI port(Rear)
TPM:
1x TPM header
1x TPM Onboard/port 80
1x TPM Onboard/port 80
Software:
SuperCloud Composer®
Supermicro Server Manager (SSM)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Plug-ins for 3rd Party Software
Supermicro Server Manager (SSM)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Plug-ins for 3rd Party Software
Hardware:
Trusted Platform Module (TPM) 2.0
CPU:
Single LGA-1851; Intel® Core™ Ultra 9/7/5 (Series 2) processors
Note:
Supports up to 65W TDP CPUs (Air Cooled)
Processor Details
CPU:
Single LGA-1851
Intel® Core™ Ultra 9/7/5 (Series 2) processors
Intel® Core™ Ultra 9/7/5 (Series 2) processors
Note:
Supports up to 65W TDP CPUs (Air Cooled)
Chassis
CSE-E300
Front Panel
Expansion Slots
Drive Bays / Storage
System Cooling
Operating Environment
Power Supply
Dimensions
Environmental / Recycling

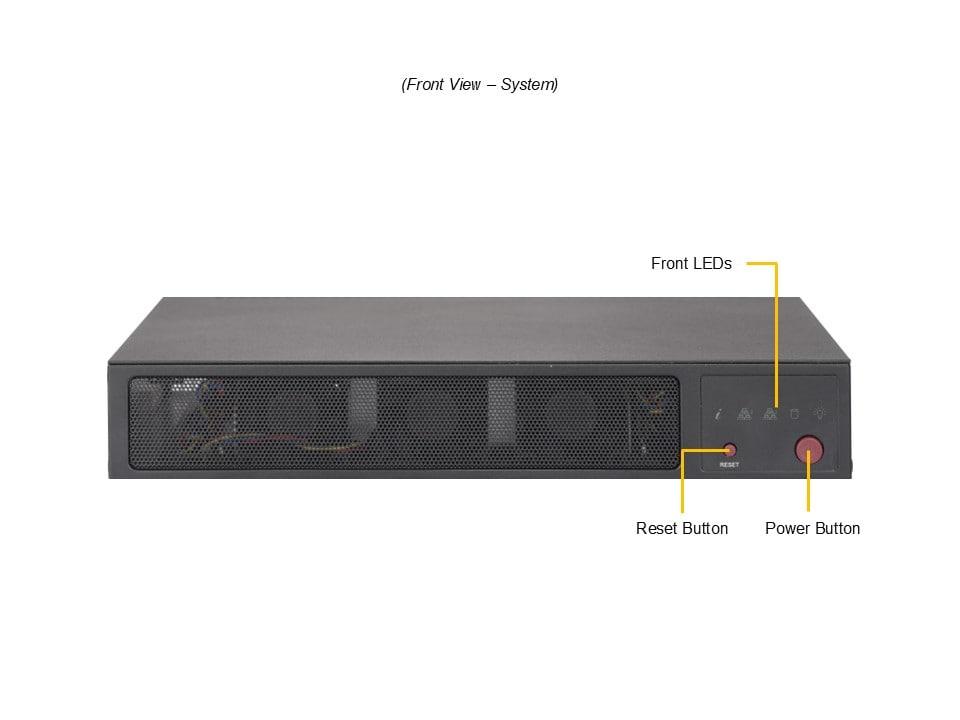

Buttons:
Power On/Off
LED:
HDD Status
LAN1 activity
LAN2 activity
Power status
WIFI activity
LAN1 activity
LAN2 activity
Power status
WIFI activity
PCI-Express (PCIe) Configuration:
Default*
1x PCIe 5.0 x16 (in x16) LP slot

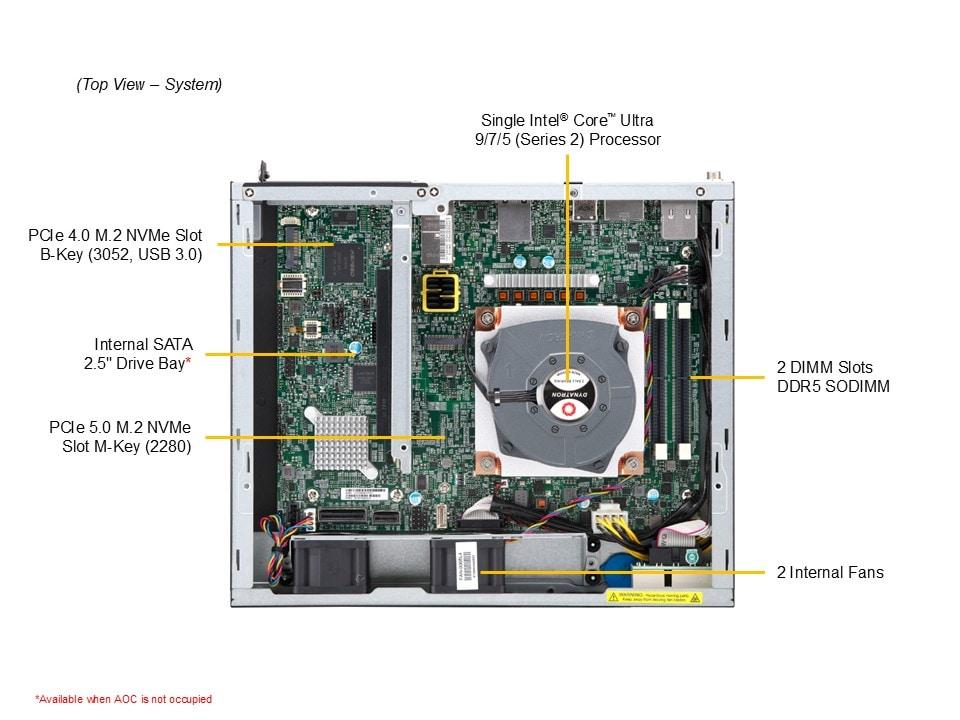

(*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
1x PCIe 5.0 x16 (in x16) LP slot
(*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
M.2:
1x M.2 PCIe 4.0 x2 slot (B-key 3052)
Drive Bays Configuration:
Default: Total 1 bay
1x internal fixed 2.5" SATA* drive bay
(*SATA support may require additional storage controller and/or cables)
1x internal fixed 2.5" SATA* drive bay
(*SATA support may require additional storage controller and/or cables)
M.2:
1x M.2 PCIe 5.0 x4 NVMe slot (M-key 2280)
Fans:
Up to 1 CPU heatsink with Φ80x15mm Fan(s)
Up to 2x 4-PIN PWM 40x40x28mm Fan(s)
Up to 2x 4-PIN PWM 40x40x28mm Fan(s)
Environmental Spec.:
Operating Temperature: 0°C to 40°C (32°F to 104°F) with 0.7 m/s airflow
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Dimension (W x H x L):
151.3 x 25.4 x 75.6 mm
Input:
180W: 100-240Vac / 47-63Hz
Description:
1x 180W power supply

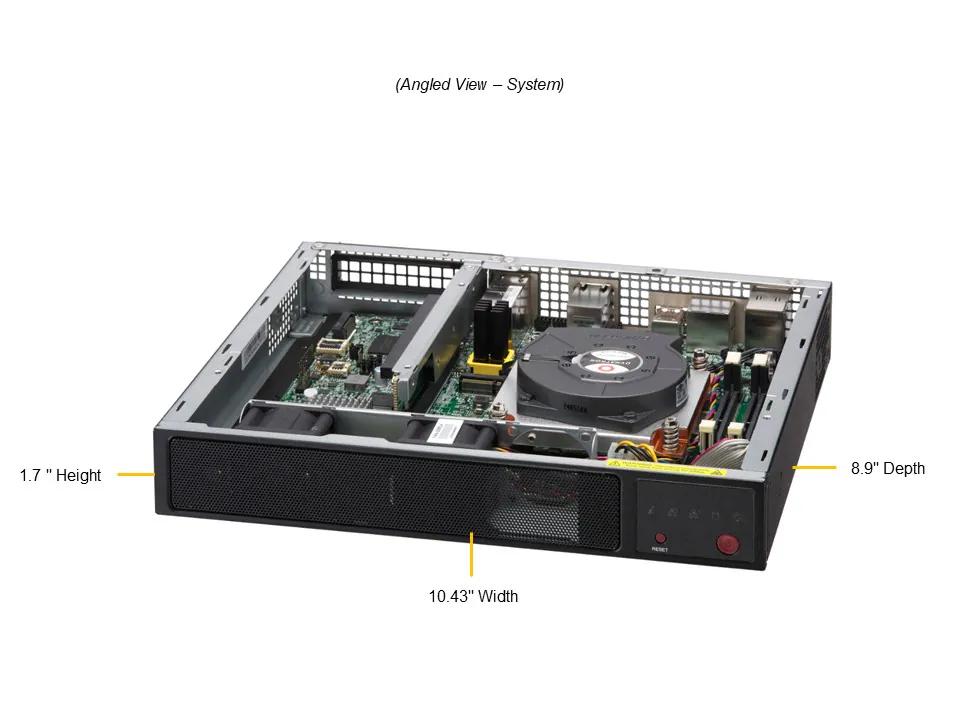

Height:
1.69 in
Width:
10.43 in
Depth:
8.89 in
Package Height:
10.87 in
Package Width:
15 in
Package Depth:
5.59 in
Available Color:
Black
Form Factor:
Fan-based Embedded
Model:
CSE-E300
Recycle:
Contact us at lifecycle@rackables.com for recycling options.
Part NumberQtyDescription
2.5" SATA Drive kits
CBL-MCIO-1250QT4Q-851MCIO to SATA cable, 50CMCBL-PWEX-10301SATA power cable, 20CM
Expansion slot kits
RSC-S-6G511U LHS Standard Riser card with one PCIe 5.0 X16 slot.,H
GPU air shroud
MCP-310-30001-0B1Air shroud for NVIDIA Low profile GPU card(T4/A2/L4)
Rackmount kits
MCP-290-30002-0B1CSE-E300 Rackmount kit with power adapter holder
