Supermicro
SYS-E403-13E-FRN2T-G1
RFQ Only

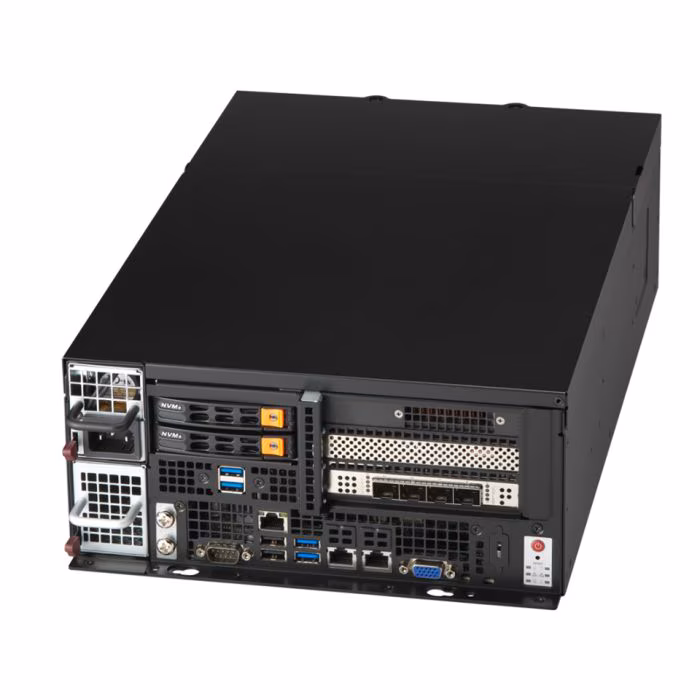

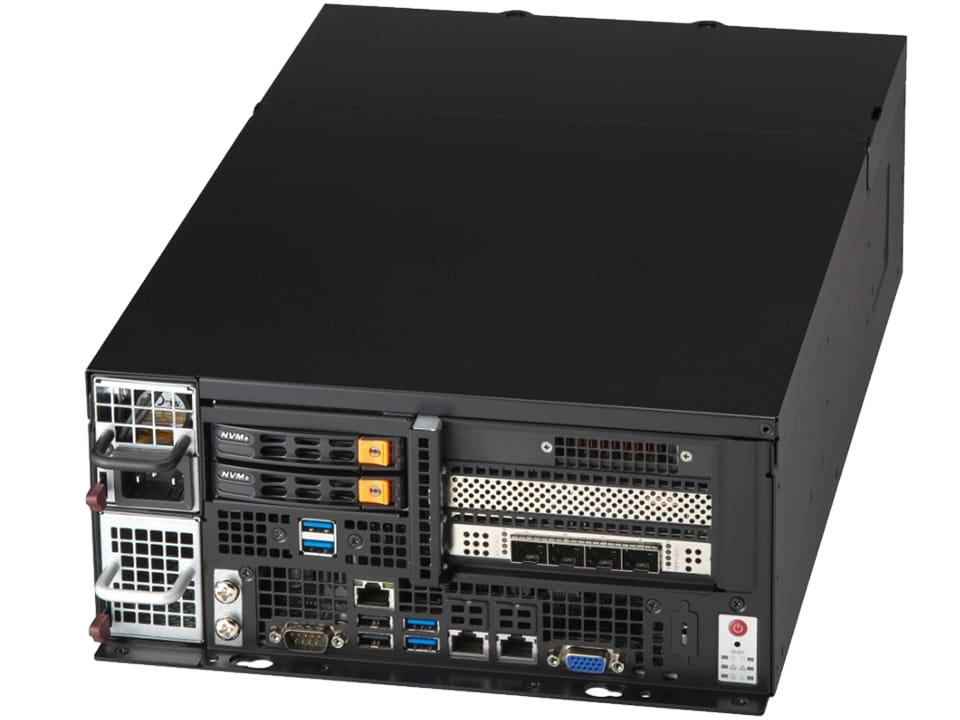

The Supermicro SYS-E403-13E-FRN2T is a fan-based embedded system designed for edge computing applications such as Multi-access Edge Computing (MEC), industrial automation, machine learning (ML), Universal Customer Premise Equipment (uCPE), AI on the edge, and smart retail/medical expert systems. This compact and robust system features a single Intel® Xeon® Silver 4510 processor (12 cores), 128GB of DDR5-5600 RDIMM memory, and a 480GB M.2 NVMe drive for fast and efficient data processing and storage. With dual 10GbE RJ45 LAN ports, the SYS-E403-13E-FRN2T ensures high-bandwidth connectivity for demanding network applications. This system is ideal for deployments in harsh environments and offers a reliable and high-performance solution for edge computing needs, and it ships within 24 hours.
SKU: SYS-E403-13E-FRN2T-G1
Features
Key Features
- CPU - Single Intel® Xeon® Silver 4510 Processors (12-Cores)
- Chassis - Fan-Based Embedded / 1 Node
- Drive - 1x 480GB M.2 NVMe
- RAM - 4x 32GB DDR5-5600 RDIMM Memory
- Network Ports - 2x 10GbE RJ45 LAN Ports
Use Cases
Multi-Access Edge Computing (MEC)
Universal Customer Premise Equipment (uCPE)
Industrial Automation
Retail
Machine Learning (ML)
Edge AI

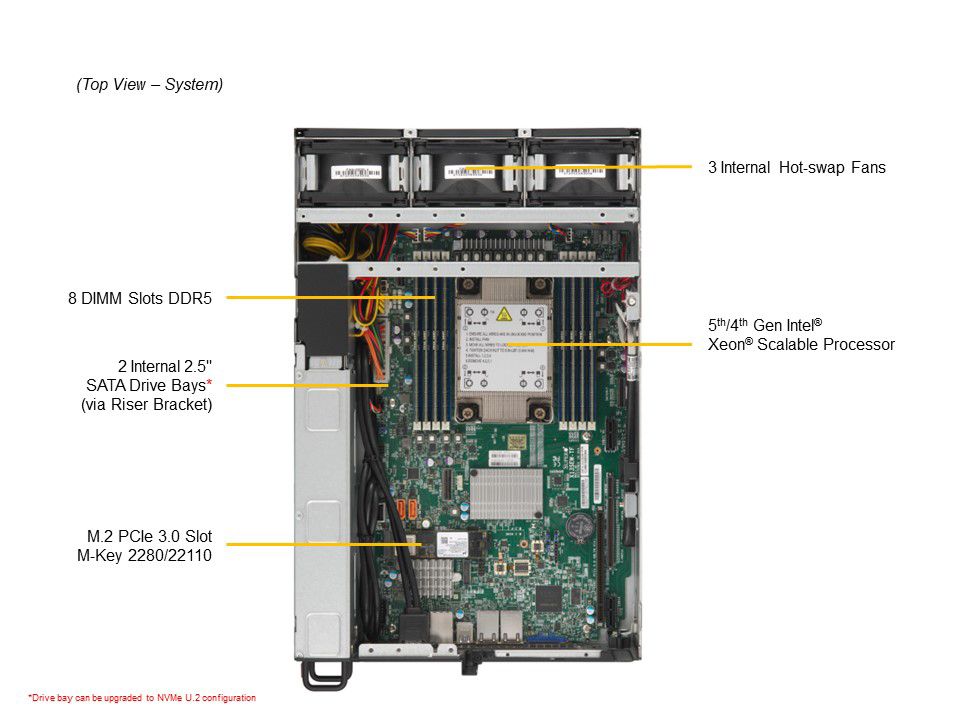

Motherboard
Super X13SEW-TF
GPU
Input / Output
Management
On-Board Devices
Processor
Security
System Memory
Max GPU Count:
Up to 1 double-width or 2 single-width GPUs
Supported GPU:
NVIDIA PCIe: A10, A2, L4, L40, L40S, RTX 4000 Ada Generation, RTX 6000 Ada Generation
LAN:
1x RJ45 1 GbE Dedicated BMC LAN port
2x RJ45 10 GbE LAN ports (Intel® X550-AT2)
2x RJ45 10 GbE LAN ports (Intel® X550-AT2)
Serial:
1x COM port(Front)
USB:
2x USB 2.0 Type-A ports(front)
4x USB 3.2 Gen1 Type-A ports(Front)
4x USB 3.2 Gen1 Type-A ports(Front)
Video:
1x VGA port(Front)
Power Configurations:
Power-on mode for AC power recovery
ACPI Power Management
ACPI Power Management
Software:
SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Chipset:
Intel® C741
Network Connectivity:
2x RJ45 10GBASE-T with Intel® X550-AT2
1x RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI)
1x RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI)
NVMe:
NVMe; RAID 0/1 support(Intel® VROC RAID key required)
Core Count:
Up to 32C/64T; Up to 60MB Cache
CPU:
Single Socket E (LGA-4677)
5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Note:
Supports up to 300W TDP CPUs (Air Cooled)
Features:
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
Hardware:
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Memory:
Slot Count: 8 DIMM slots
Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
Memory Voltage:
1.1V
Chassis
CSE-E403BiF-000NDBP2

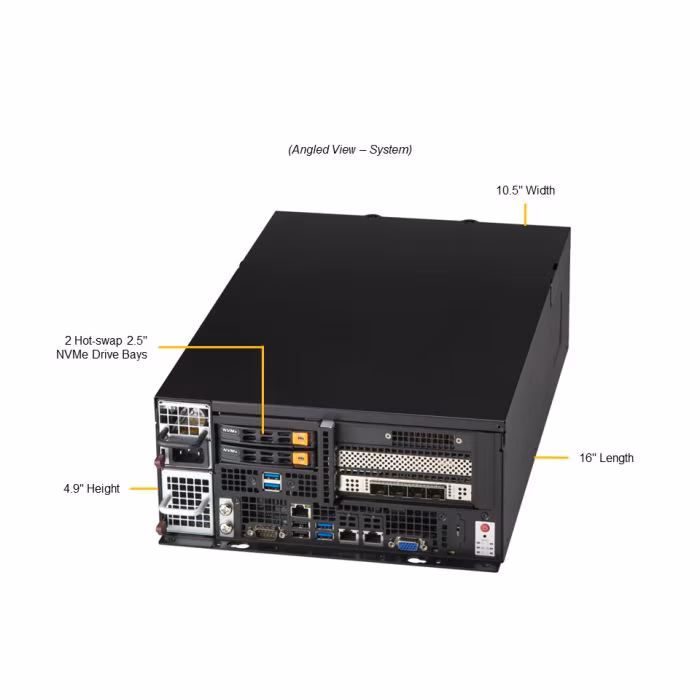

Dimensions
Expansion Slots
Form Factor
Front Panel
Model
Operating Environment
Power Supply
Storage
System Cooling
Environmental / Recycling
Available Color:
Black
Depth:
16 in
Gross Weight:
24.47 lb
Height:
4.62 in
Net Weight:
18.52 lb
Package Depth:
26 in
Package Height:
10.4 in
Package Width:
16.4 in
Width:
10.5 in
PCI-Express (PCIe) Configuration:
Default
3x PCIe 5.0 x16 FHFL slots
3x PCIe 5.0 x16 FHFL slots
Form Factor:
Fan-based Embedded
Buttons:
Power On/Off
LED:
HDD activity
LAN1 activity
LAN2 activity
Power status
reset status
System information
LAN1 activity
LAN2 activity
Power status
reset status
System information
Model:
CSE-E403BiF-000NDBP2
Environmental Spec.:
Operating Temperature: 0°C to 45°C (32°F to 113°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
1x 800W Platinum
+12V:
Max: 62.5A / Min: 0A (100Vac-127Vac)
Max: 62.5A / Min: 0.5A (100Vac-127Vac)
Max: 66.6A / Min: 0A (200Vac-240Vac)
Max: 66.6A / Min: 0A (230Vdc-240Vdc)
Max: 66.6A / Min: 0.5A (200Vac-240Vac)
Max: 66.6A / Min: 0.5A (230Vdc-240Vdc)
Max: 62.5A / Min: 0.5A (100Vac-127Vac)
Max: 66.6A / Min: 0A (200Vac-240Vac)
Max: 66.6A / Min: 0A (230Vdc-240Vdc)
Max: 66.6A / Min: 0.5A (200Vac-240Vac)
Max: 66.6A / Min: 0.5A (230Vdc-240Vdc)
5V SB:
Max: 4A / Min: 0A
Description:
1x 800W Redundant Platinum Level (94%) power supply
Dimension (W x H x L):
54.5 x 40.25 x 220 mm
Input:
100-127Vac
200-240Vac
230-240Vdc
750W: 100-127Vac / 50-60Hz
800W: 200-240Vac / 50-60Hz
800W: 230-240Vdc / 50-60Hz
200-240Vac
230-240Vdc
750W: 100-127Vac / 50-60Hz
800W: 200-240Vac / 50-60Hz
800W: 230-240Vdc / 50-60Hz
Output Type:
Backplanes (gold finger)
Drive Bays
Configuration 1
Count:
2
Form Factor:
2.5"
Location:
front
Option:
default
Interface
Configuration 1
Interface:
NVMe
Configuration 2
Count:
2
Form Factor:
2.5"
Location:
internal
Option:
default
Interface
Configuration 1
Interface:
SATA
M.2
Count:
1
Generation:
PCIe 3.0
Lanes:
2
Keys
Configuration 1
Keys:
M
Air Shroud:
1x Air Shroud

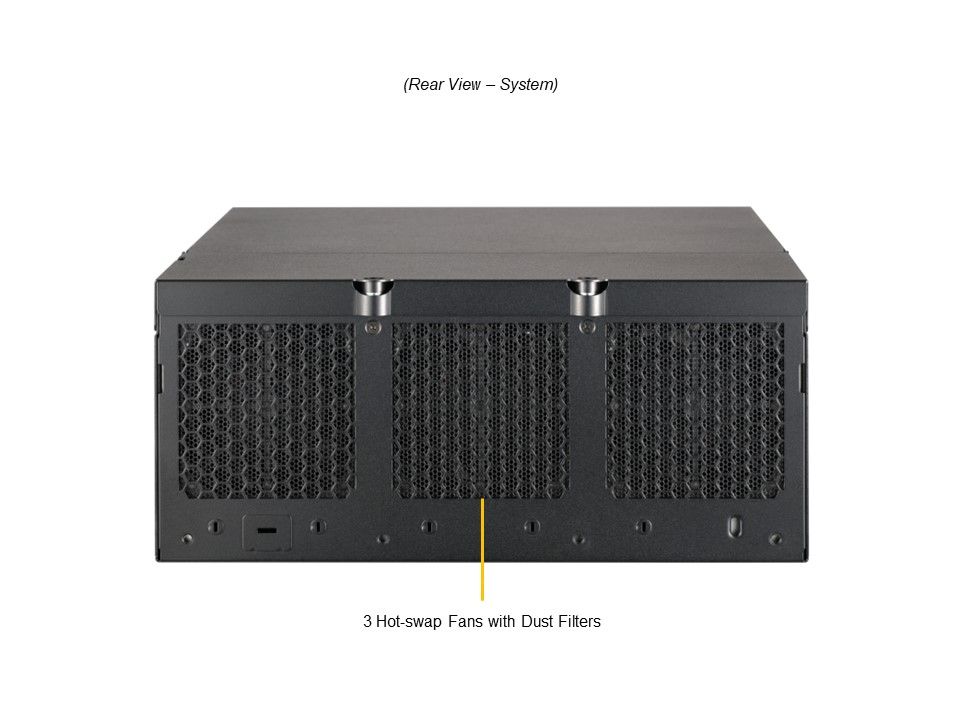

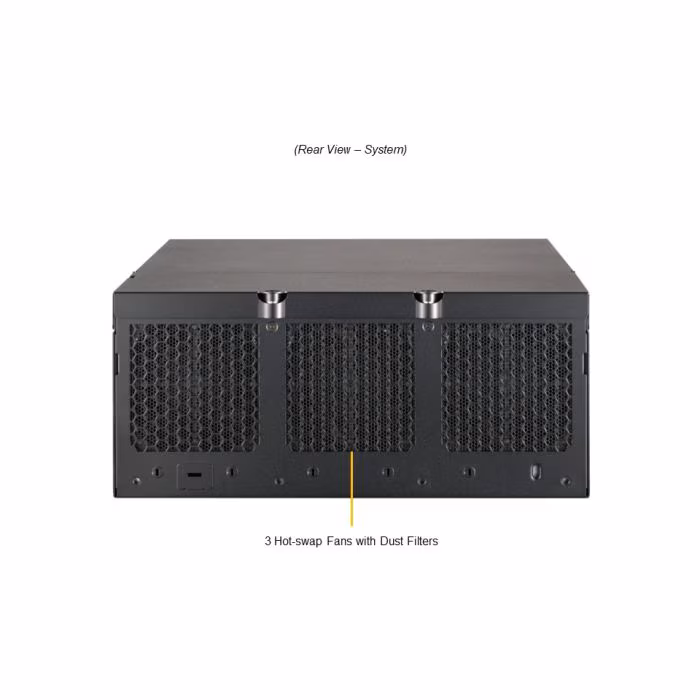

Fans:
Up to 3x 8cm heavy duty fans with optimal fan speed control 80x80x38mm Fan(s)
Recycle:
Contact us at lifecycle@rackables.com for recycling options.
Part NumberQtyDescription
For internal U.2 drive cable
CBL-MCIO-1245U2Y-E1MCIO x8 to 2x SFF-8639/U.2+Pwr,45cm,G5,RoHS
Nvdia GPU rear-support bracket
MCP-120-82906-0N1GPU bracket for SC829U,219U, Right (nVidia)
